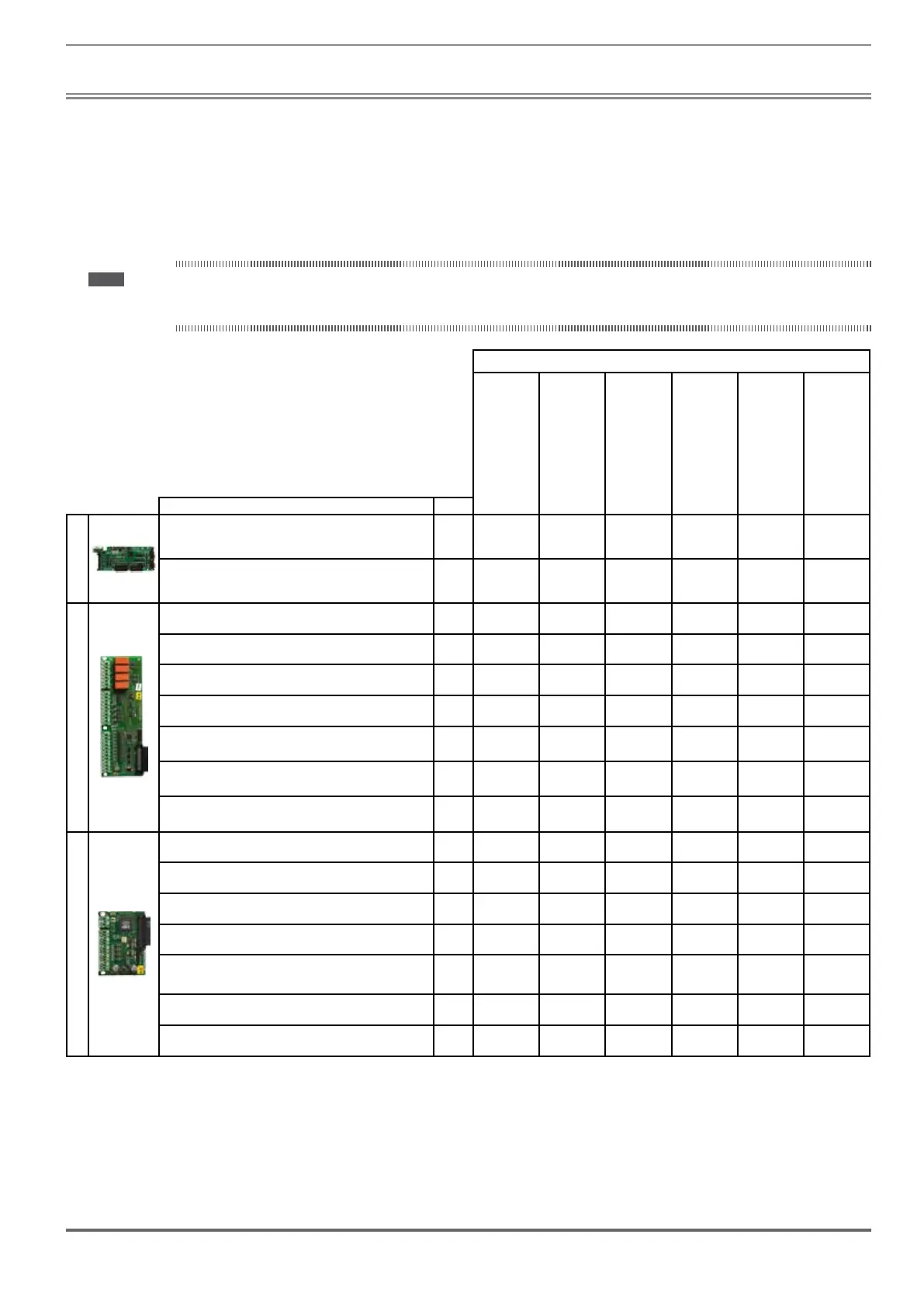

ADL300 • Quick installation guide - Specifications and connection 117
Appendix
A.1 - ADL300 Advanced Conguration
ADL300 is coded as the Advanced version and does not implement any I/O or encoder expansion cards.
The user may integrate any of the available options, to meet specic system requirements (an I/O card must always be
present to use the drive). These integrations can be performed quickly and simply, by inserting the cards in the relative
connectors on the regulation card (provided as standard with the drive and not interchangeable).
Note! Connections and technical data of I/O and encoder expansion cards are given in sections A.2 and A.3.
The firmware automatically recognises the ADL300 Basic or Advanced drive. The type of drive is displayed in the “Drive info” menu, parameter 476 Drive
type (0= Basic, 1 = Advanced, 2 = Basic-VGA).
ADL300 Advanced
ADL300A – ... –KBL–4
230-400-480 Vac, 3ph
ADL300A – ... –KBL–F–4–C
230-400-480 Vac, 3ph
EMI Filter - CAN
ADL300A – ... –KBL–2T
200-230 Vac, 3ph
ADL300A – ... –KBL–F–2T–C
200-230 Vac, 3ph
EMI Filter - CAN
ADL300A – ... –KBL–2M
200-230 Vac, 1ph
ADL300A – ... –KBL–2M-C
200-230 Vac, 1ph
CAN
Type / Description Code
Regulation
R-ADL300-A
Basic regulation card
--
O O O
RC-ADL300-A
Regulation card with integrated CAN
--
O O O
I/O card
EXP-IO-D4-ADL
2 digital inputs + 2 digital outputs
S567L
EXP-IO-D5R3-F-ADL
5 Digital inputs + 3 Relay outputs
S5L08
EXP-IO-D6A4R2-F-ADL
6 Digital inputs + 2 analog outputs + 2 analog inputs + 2 relay outputs
S580L
EXP-IO-D8R4-ADL
8 Digital inputs + 4 Relay outputs
S568L
EXP-IO-D8A4R4-ADL
8 digital inputs + 2 analog outputs + 4 analog inputs + 2 relay outputs
S570L
EXP-IO-D12A2R4-ADL
8 digital inputs + 4 digital outputs + 4 analog inputs + 2 relay outputs
S569L
EXP-IO-D16R4-ADL
12 digital inputs + 4 digital outputs + 4 relay outputs
S566L
Encoder cards
EXP-DE-I1R1F2-ADL
Digital encoder 3 Channels + Repeat + 2 Freeze
S5L04
EXP-DE-I1-ADL
Digital encoder 2 Channels
S5L36
EXP-SESC-I1R1F2-ADL
Sinusoidal SinCos encoder 3 Channels + Repeat + 2 Freeze
S5L06
EXP-SESC-I1R1-V-ADL
Sinusoidal SinCos encoder 3 Channels + Repeat (VGA connectors)
S5L39
EXP-EN/SSI-I1R1F2-ADL
Sinusoidal encoder - Absolute EnDat (or EnDat Full Digital) + Repeat +
2 Freeze
S5L07
EXP-SE-I1R1F2-ADL
Sinusoidal encoder 3 Channels + Repeat + 2 Freeze
S571L
EXP-HIP-I1R1F2-ADL
Hiperface encoder 3 Channels + Repeat + 2 Freeze
S572L
= standard, = optional , O= not possible
