118 ADL300 • Quick installation guide - Specifications and connection
A.1.1 - Inserting expansion cards
• Slot 1: dedicated to I/O cards (EXP-IO-...-ADL)
• Slot 2: dedicated to encoder expansion cards (EXP-DE-ADL, EXP-SE-ADV, etc.)
1
2
1
Slot 1
Slot 2
A
B
B
C
C
D
D
4
4

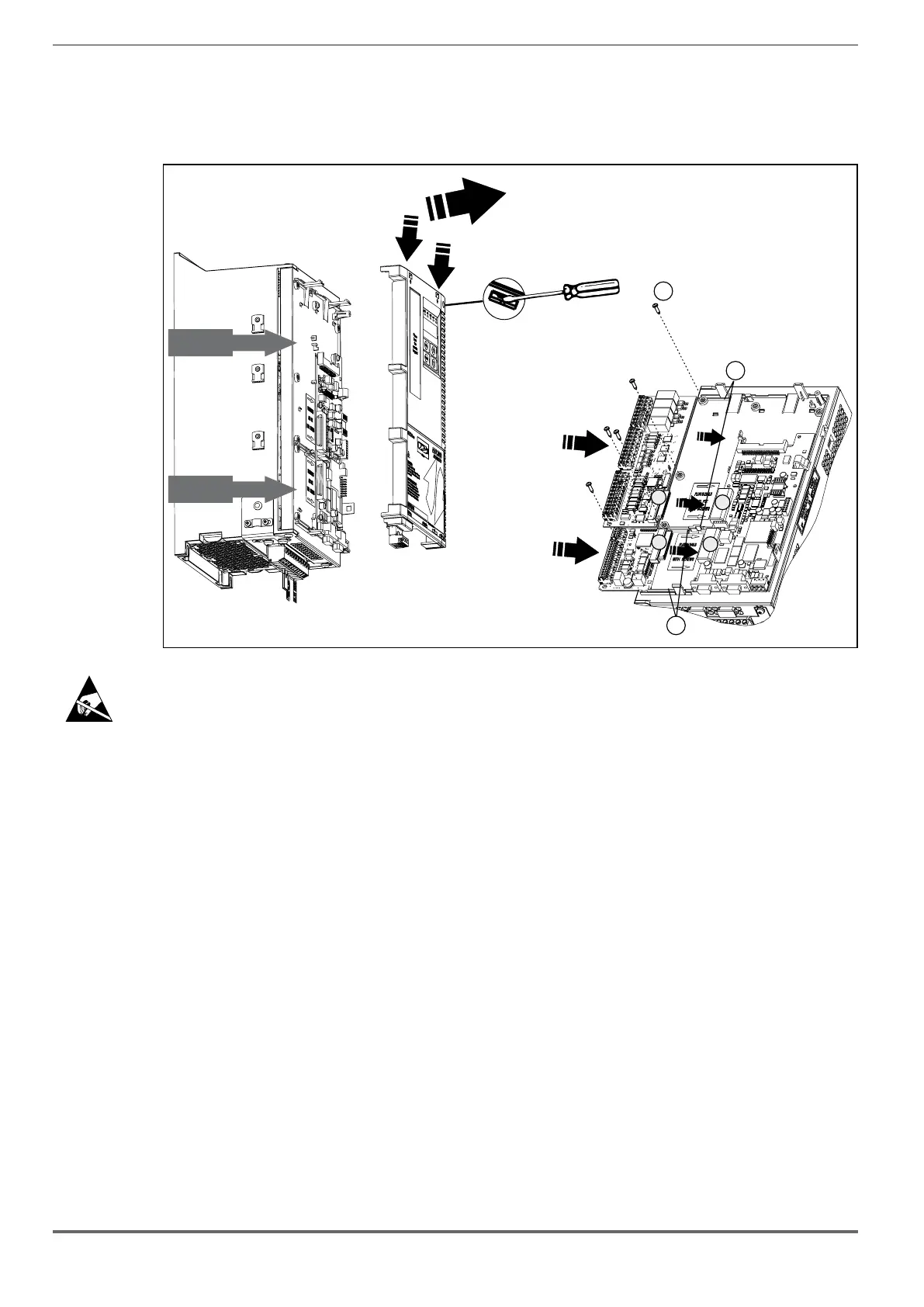

1. Remove the top cover: insert a screwdriver into the holes at the top of the plastic card cover and push gently
2. Raise the cover as shown in the gure.
3. To replace an expansion card, loosen the screws (A) and remove the card to be replaced.
4A. Insert the EXP-IO-...-ADL card in the guide bars (B) of Slot 1 until the male terminal (C) is fully inserted in the
female terminal (C) of the regulation card.
4B. Insert the Encoder card in the guide bars (B) of Slot 2 until the male terminal (D) is fully inserted in the female
terminal (D) of the regulation card.
5. Tighten the screws (A) provided with the card.
