ADL300 • Quick installation guide - Specifications and connection 75

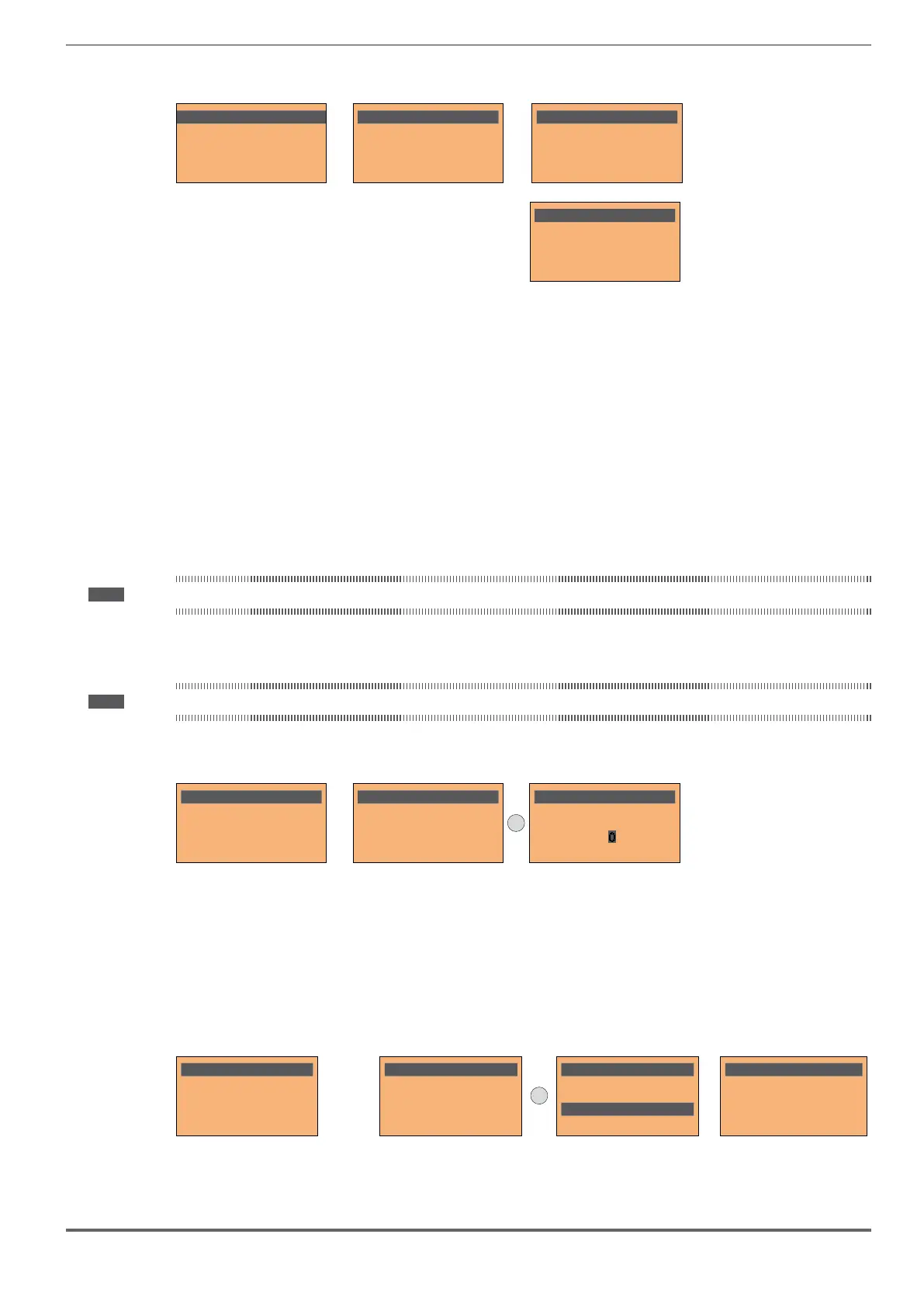

8.3.3 Scanning of the parameters
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
05 LIFT

01 MONITOR
01/20 PAR: 250
Output current
0.0 A
0%

01 MONITOR
20/20 PAR: 1400
Di
g
ital output X mon
00000000010001

01 MONITOR
02/20 PAR: 252
Output voltage
0 V
0%
8.3.4 List of the last parameters modied
Pressing the CUST key, a list containing the last 10 parameters modied is accessed. One parameter is displayed at a
time and the list can be scrolled using the ▲ and ▼ keys.
To exit this list, press the ► key.
8.3.5 "FIND" function
Pressing the FIND key activates the function that makes it possible to access any parameter simply by entering the
parameter software number (PAR).
When the parameter reached by the "FIND" command is displayed, it is possible to navigate all the parameters forming
part of the same group using the ▲ and ▼ keys. Pressing the ► key returns to the “FIND” function.
To exit, press the ► key.
8.3.6 Parameter modication
To enter parameter modication mode, press the E key when the parameter to be modied is displayed.
To save the value of the parameter, following modication, press the E key again.
Note! To save permanently, see paragraph 8.3.7.
To exit modication mode without saving the value, press the ESC key.
The operations to be carried out to modify the value depend on the type of the parameter, as described below.
Note! For further information about the type of parameters displayed, see paragraph 8.3.2.
● Numeric parameters
14 MOTOR DATA
15 ENCODER CONFIG
16 SPEED REG GAINS
17 REGULATOR PARAM
18 TORQUE CONFIG

14 MOTOR DATA
01/26 PAR: 2000
Rated voltage
400 V
Def: 400
E
14 MOTOR DATA
01/26 PAR: 2000
Rated voltage
000000400 v
Def: 400
When E is pressed to access modication mode, the cursor is activated on the digit corresponding to the unit.
Using the ◄ and ► keys, the cursor can be moved to all the digits, including trailing zeros that are normally not
displayed.
With the ▲ and ▼ keys, the digit under the cursor is increased or decreased.
Press E to conrm the modication or ESC to cancel.
● Binary parameters (BIT type)
The parameter may assume only two states which are indicated as On-Off or 0-1.
11 DIGITAL OUTPUTS
14 MOTOR DATA
15 ENCODER CONFIG
16 SPEED REG GAINS
17 REGULATOR PARAM

x8
11
DIGITAL OUTPUTS
09/16 PAR: 1430
Di
g
out 1X inversion
O
f
f
E
11
DIGITAL OUTPUTS
09/16 PAR: 1430
Di
g
out 1X inversion
O
f
f

11
DIGITAL OUTPUTS
09/16 PAR: 1430
Di
g
out 1X inversion
On
Press E to activate modication mode. The entire line is displayed in reverse. Use the ▲ and ▼ keys to move from one
state to another. Press E to conrm the modication or ESC to cancel.
