ADL300 • Quick installation guide - Specifications and connection 127
A.3.3 Encoder cards
Note !
The encoder power supply must be adequate considering the cable length and the absorption rates as shown in table (1) at the end of this chapter.
EXP-DE-I1R1F2-ADL
Digital Incremental Encoder. This is the default card supplied with drives to control asynchronous motors in eld-
oriented ux vector mode (FOC).
EXP-DE-I1R1F2-ADL

XER

XE
BR
-
BR
+
AR
-
AR
+
DI
F2
DI
F1
DI
CM
Z
-
Z
+
B
-
B
+
A
-
A
+
0VE
out
+VE
out
20 21 22 23 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
(TTL Line-driver)
Channels ������������������������������� A+ A-, B+ B-, Z+ Z-, differential line drivers, optoisolated.
Management of loss of encoder signals
Max frequency �������������������������� 200 kHz (check the number of encoder impulses according to the maximum speed)
Number of impulses ���������������������� min 128, max 16384 (default 1024)
Electrical interface ������������������������ TTL (ref. GND) Ulow ≤ 0.5 V Uhigh ≥ 2.5 V
Load capacity ��������������������������� 10 mA @ 5.5 V (Zin 365Ω)
Programmable internal power supply ���������� min +5.2 V, max +6.0 V (default + 5.2 V) − Imax 150 mA.
See table (1)
Cable length ���������������������������� max 50m

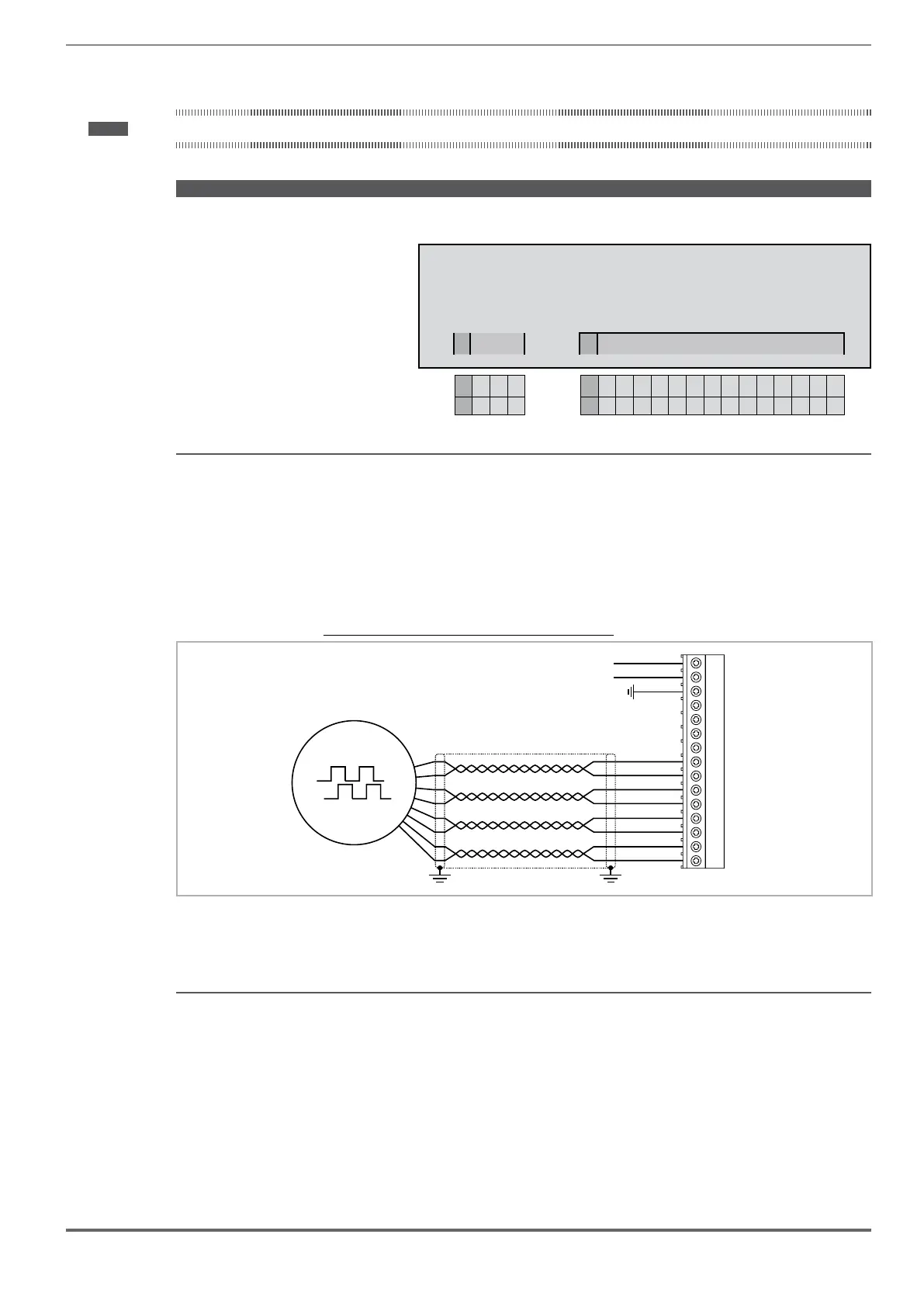

INCREMENTAL DIGITAL ENCODER (DE) PUSH-PULL/LINE DRIVER
Z-
Z+
B-
B+
A-
A+
0VE out
+VE out
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
(*)
XE
Fast input 2
Fast input 1
CM
(*) Connection of shielding, see gure 7.2.4
(TTL/HTL push-pull)
Channels ������������������������������� A/B/Z, complementary push-pull, optoisolated.
Loss of encoder cannot be managed with single-ended versions. In this case disable the
Speed Fbk Loss.
Max frequency �������������������������� 100 kHz (check the number of encoder impulses according to the maximum speed)
Number of impulses ���������������������� min 128, max 16384 (default 1024)
Electrical interface ������������������������ HTL Ulow ≤ 3.0 V Uhigh ≥ Venc - 3.0 V
Load capacity ��������������������������� 7 mA @ 20.0 V (Zin 2635Ω)
V max Digital Inputsi (*) �������������������� HTL = 27V max.
TTL = 7V max
Programmable internal power supply ���������� min +6.0 V, max +20.0 V (default + 6.0 V) − Imax 150 mA.
See table(1)
Cable length ���������������������������� max 50m
(*) with external supply.
