12 ADL300 • Quick installation guide - Specifications and connection

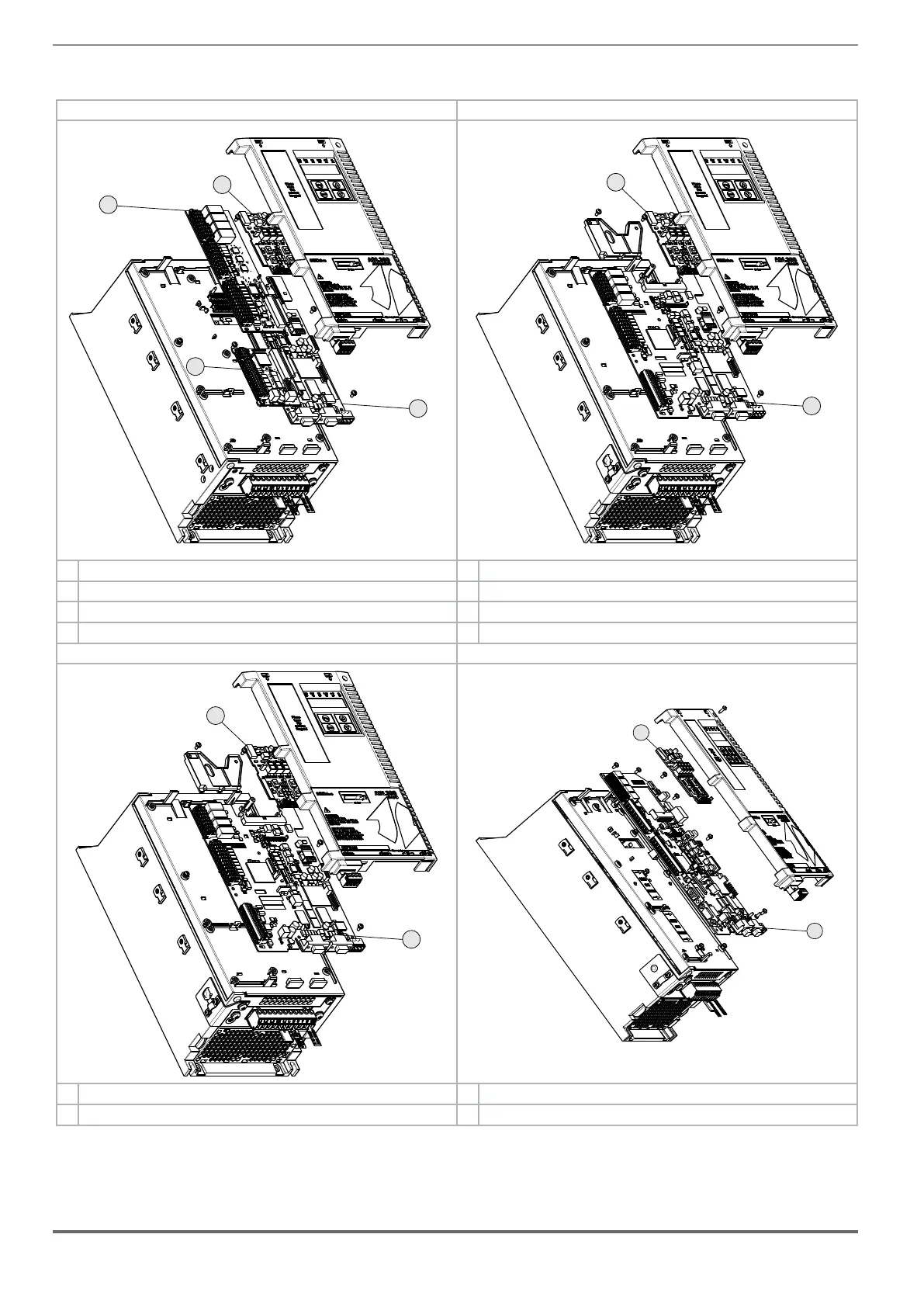

2.5 Standard congurations
ADL300A (Advanced) ADL300B - (Basic SinCos)
4
3
1
2
1
2
1 Regulation card (R-ADL300-A , RC-ADL300-A) 1 Regulation card (R-ADL300-B , RC-ADL300-B, R-ADL300-BS , RC-ADL300-BS)
2 Display card (KB-ADL300) 2 Display card (KB-ADL300)
3 I/O expansion card (EXP-IO-...) -
4 Feedback expansion card (EXP-DE-... , EXP-SE) -
ADL300B - (Basic Endat) ADL300B - (Basic VGA)
1
2
1
2
1 Regulation card (R-ADL300-BA, RC-ADL300-BA, R-ADL300-BAS, RC-ADL300-BAS) 1 Regulation card (R-ADL300-C)
2 Display card (KB-ADL300) 2 Display card (KB-ADL300)
