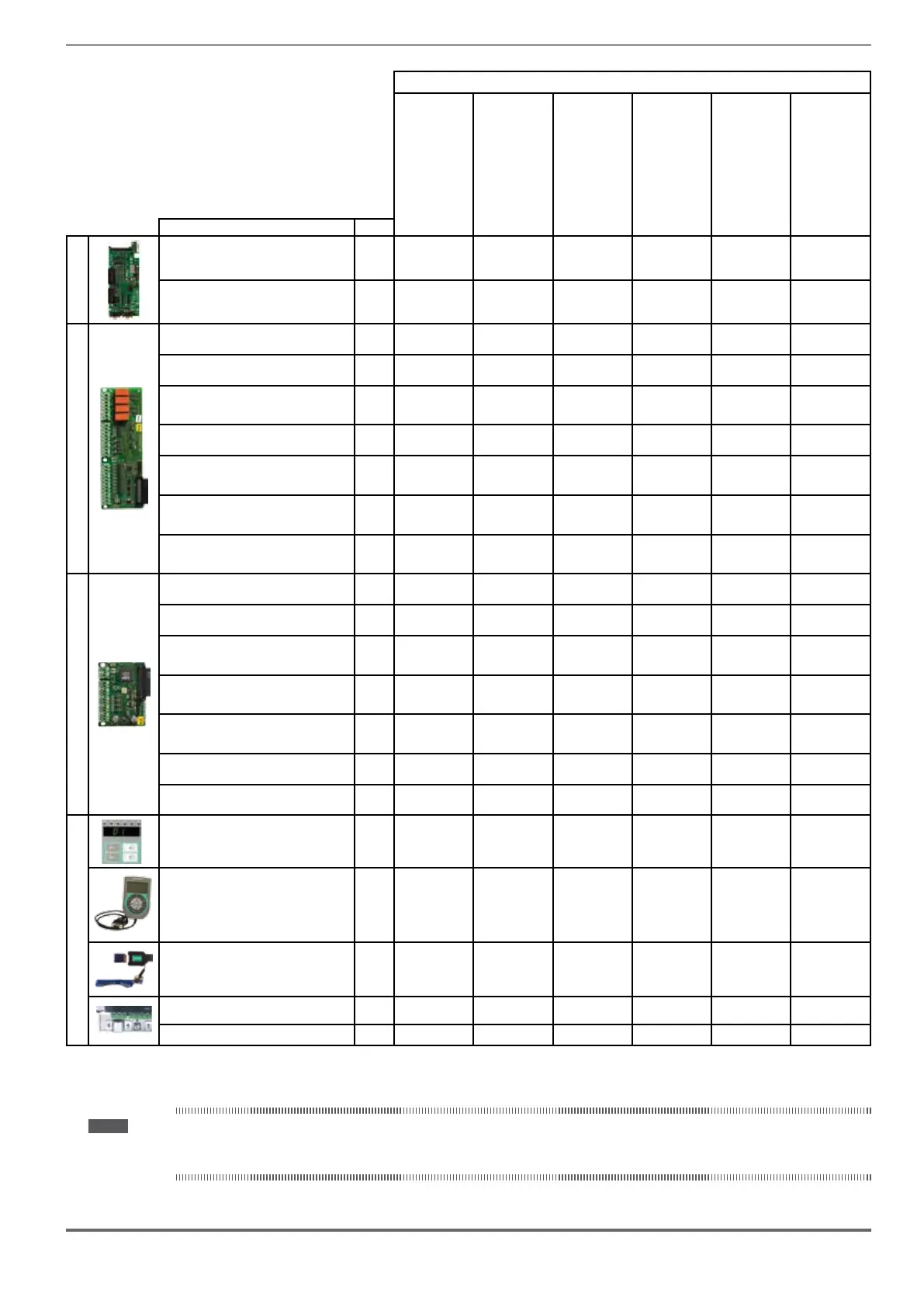

ADL300 • Quick installation guide - Specifications and connection 13
ADL300 Advanced
ADL300A – ... –KBL–4
230-400-480 Vac, 3ph
ADL300A – ... –KBL–F–4–C
230-400-480 Vac, 3ph
EMI Filter - CAN
ADL300A – ... –KBL–2T
200-230 Vac, 3ph
ADL300A – ... –KBL–F–2T–C
200-230 Vac, 3ph
EMI Filter - CAN
ADL300A – ... –KBL–2M
200-230 Vac, 1ph
ADL300A – ... –KBL–2M-C
200-230 Vac, 1ph
CAN
Type / Description Code
Regulation
R-ADL300-A
Basic regulation card
--
O O O
RC-ADL300-A
Regulation card with integrated CAN
--
O O O
I/O card
EXP-IO-D4-ADL
2 digital inputs + 2 digital outputs
S567L
EXP-IO-D5R3-F-ADL
5 Digital inputs + 3 Relay outputs
S5L08
EXP-IO-D6A4R2-F-ADL
6 Digital inputs + 2 analog outputs + 2 analog
inputs + 2 relay outputs
S580L
EXP-IO-D8R4-ADL
8 Digital inputs + 4 Relay outputs
S568L
EXP-IO-D8A4R4-ADL
8 digital inputs + 2 analog outputs + 4 analog
inputs + 2 relay outputs
S570L
EXP-IO-D12A2R4-ADL
8 digital inputs + 4 digital outputs + 4 analog inputs
+ 2 relay outputs
S569L
EXP-IO-D16R4-ADL
12 digital inputs + 4 digital outputs + 4 relay
outputs
S566L
Encoder cards
EXP-DE-I1R1F2-ADL
Digital encoder 3 Channels + Repeat + 2 Freeze
S5L04
EXP-DE-I1-ADL
Digital encoder 2 Channels
S5L36
EXP-SESC-I1R1F2-ADL
Sinusoidal SinCos encoder 3 Channels + Repeat
+ 2 Freeze
S5L06
EXP-SESC-I1R1-V-ADL
Sinusoidal SinCos encoder 3 Channels + Repeat
(VGA connectors)
S5L39
EXP-EN/SSI-I1R1F2-ADL
Sinusoidal encoder - Absolute EnDat (or EnDat Full
Digital) + Repeat + 2 Freeze
S5L07
EXP-SE-I1R1F2-ADL
Sinusoidal encoder 3 Channels + Repeat + 2 Freeze
S571L
EXP-HIP-I1R1F2-ADL
Hiperface encoder 3 Channels + Repeat + 2 Freeze
S572L
Various
KB-ADL300
Integrated keypad with LED display
--
KB-ADL
Programming keypad with memory
(optional)
S5P2T
KIT KEY SD-CARD
Adapter for SD card (data loading memory) -
(optional)
S72644
KIT-POWER-SHIELD
Power cable shielding kit S1-S2
S726101
Power cable shielding kit S3
S726501
= standard, = optional , O= not possible
Note! All the optional I/O and encoder cards available for the ADL300 Advanced versions or upon request are listed in the Appendix.
The firmware automatically recognises the ADL300 Basic or Advanced drive. The type of drive is displayed in the “Drive info” menu, parameter 476 Drive
type (0= Basic-Sin, 1 = Advanced, 2 = Basic-VGA, 3 = Basic-End, 4= Basic-Sin 24V, 5 = Advanced 24V, 6 = Basic-VGA 24V, 7 = Basic-End 24V)..
