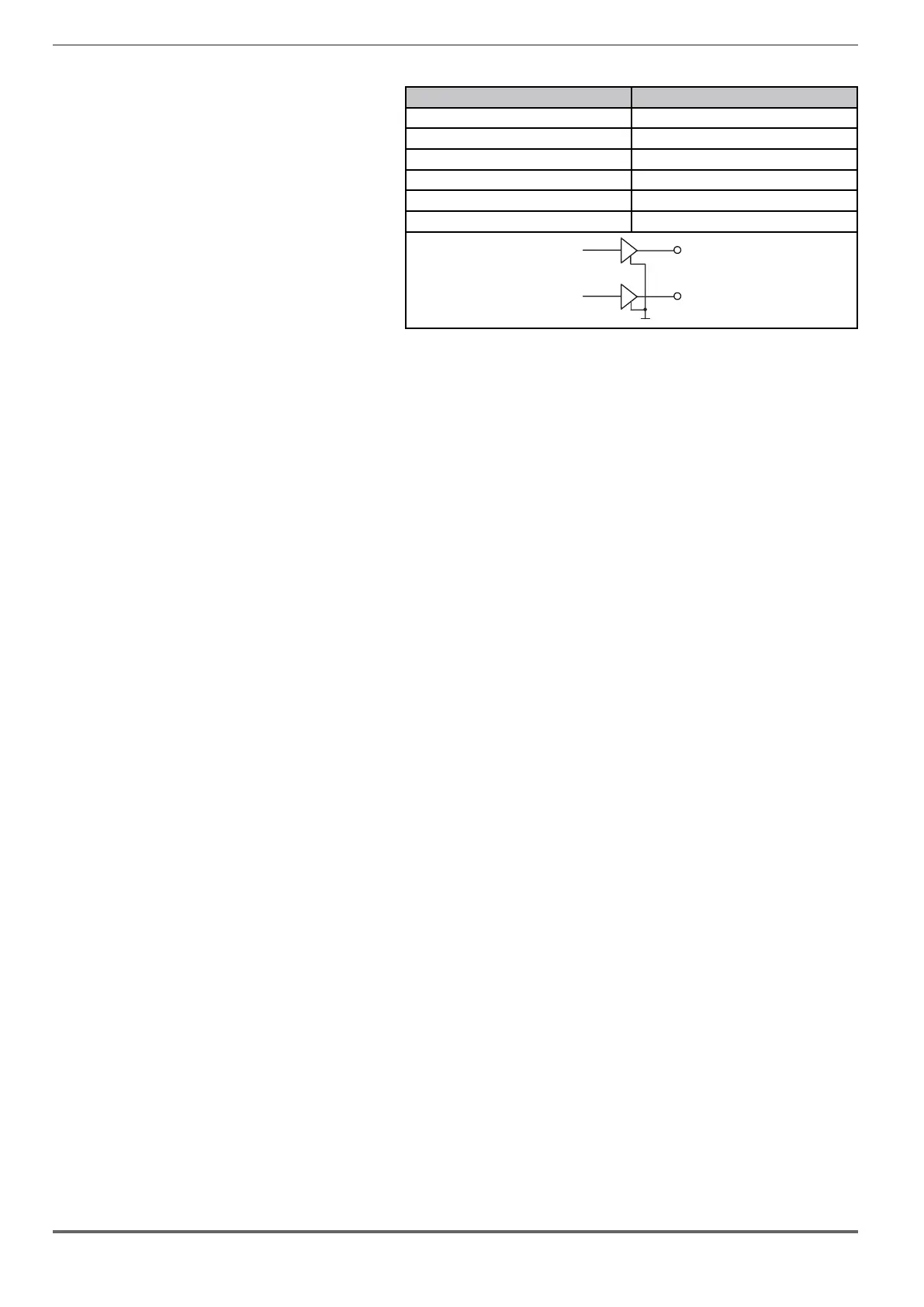

124 ADL300 • Quick installation guide - Specifications and connection
● Analog reference outputs (±10)
Description Features
Type Single-ended in voltage
Operating voltage ± 10 V
Load 5 mA @ ± 10 V - R
l = 5 kΩ (max 10 mA)
Precision 1% of full scale
Isolation NO
Short-circuit protection YES
+10V
- 10V
+10V
- 10V
OP
OP
