130 ADL300 • Quick installation guide - Specifications and connection

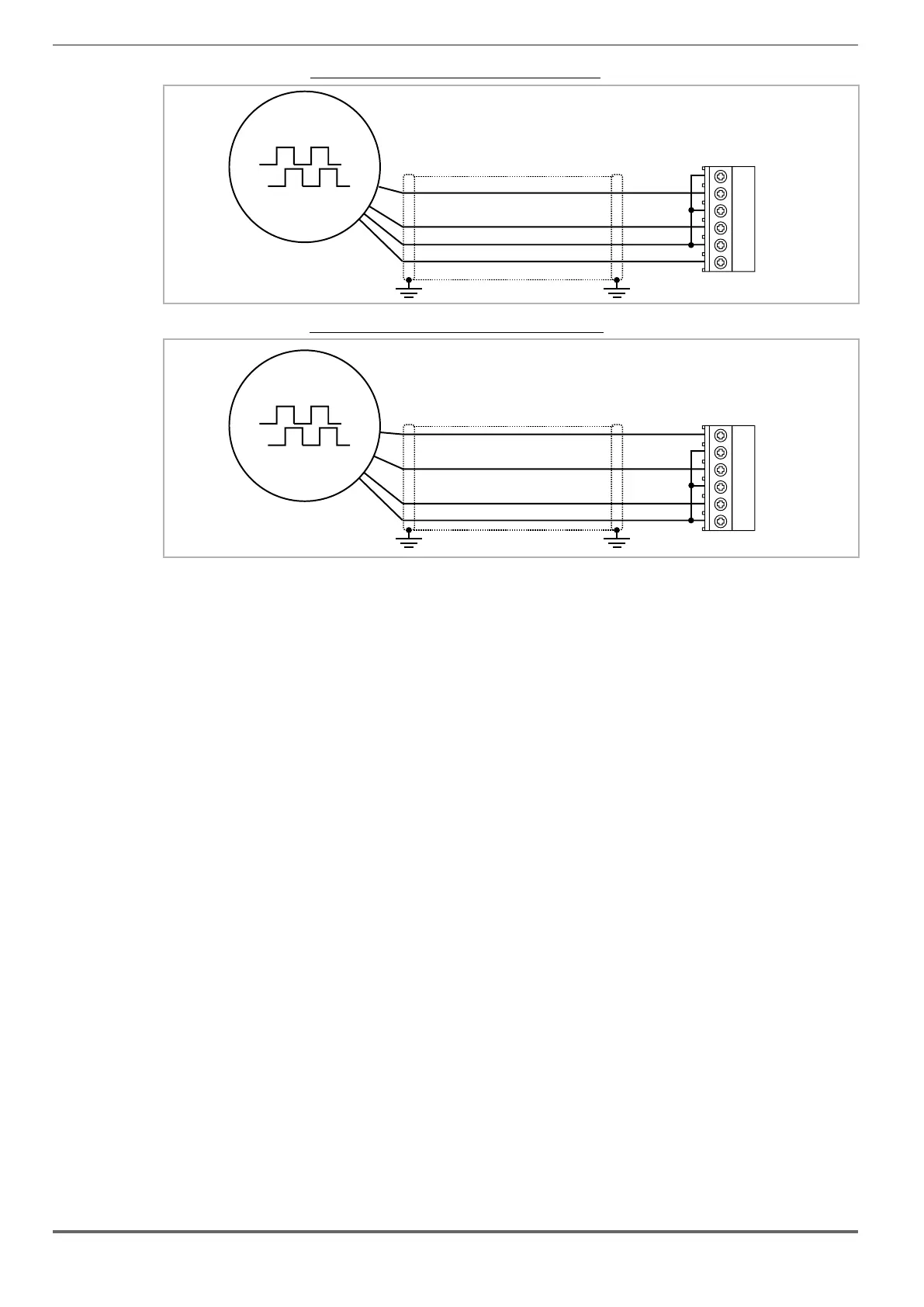

INCREMENTAL DIGITAL ENCODER (DE) SINGLE ENDED NPN O.C.
B-
B+
A-
A+
0VE out
+VE out
10
11
12
13
14
15
(*)
XE
INCREMENTAL DIGITAL ENCODER (DE) SINGLE ENDED PNP O.C.
B-
B+
A-
A+
0VE out
+VE out
10
11
12
13
14
15
(*)
XE
(*) Connection of shielding, see gure 7.2.4
