24 ADL300 • Quick installation guide - Specifications and connection

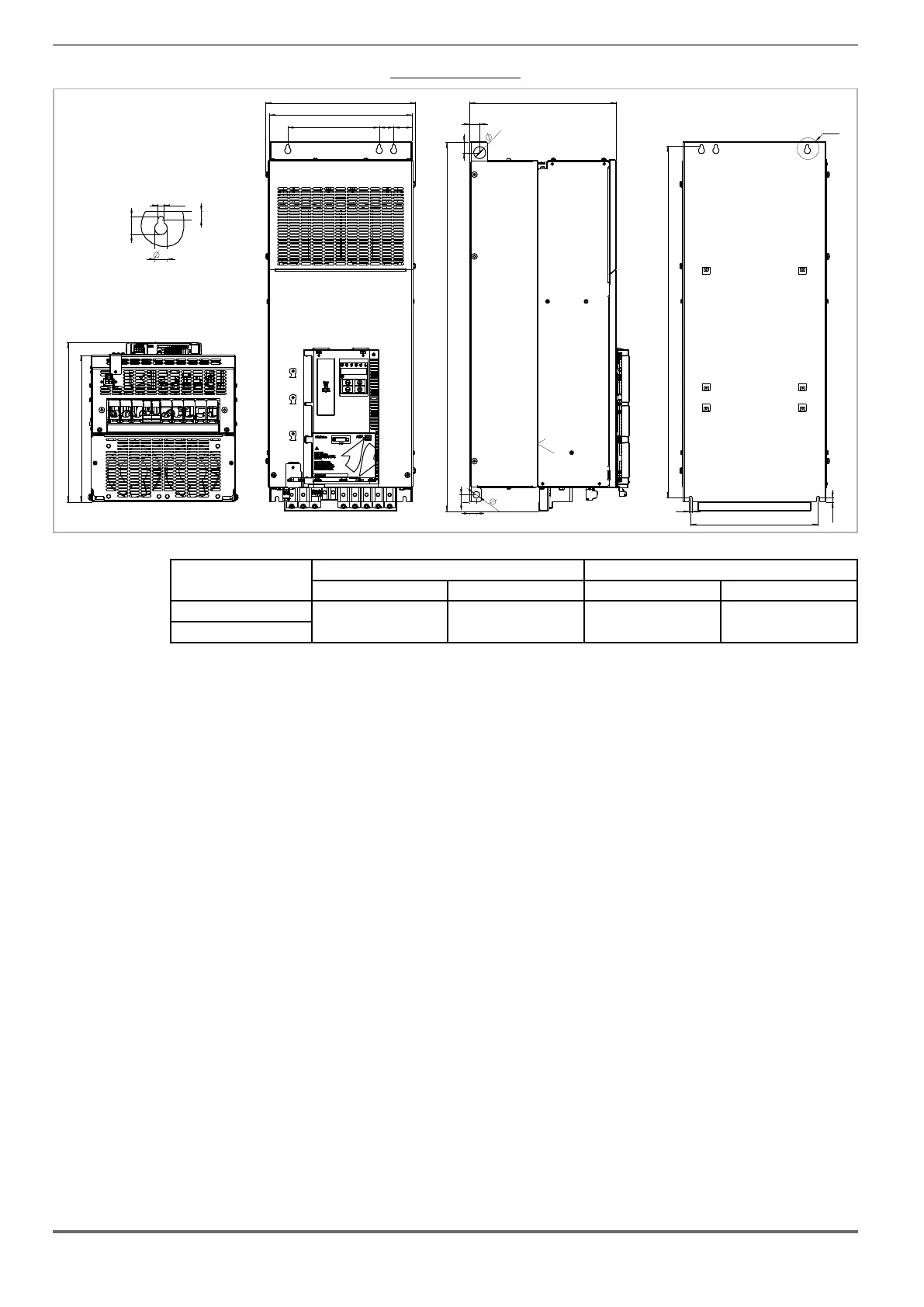

Figure 4.9.5: Size 5 dimensions
305 (12.00)
331.4 (13.05)
311 (12.24)
297 (11.69)
190 (7.48) 30 38.5
25
22
21
14
14
15
8.75
730.4 (28.75)
265 (10.43)
19
6.5
13
8.38
304.8 (12)
767 (30.20)
6.5
A
(3:5)A
1.6
Sizes
Dimensions: Width x Height x Depth Weight
(mm) (inches) (kg) (lbs)
ADL300.- 5550/5750-...-4
311 x 767 x 331.4 12 x 30.2 x 13.05 60 132.3
ADL300.- 5300/5370-...-2T
