13-3.2 Manual Operation
To control the cursor location and input infor-
mation by (manual control):
 Use the CURSOR ZONE keys to move the
cursor among the three zones.
 Use the CURSOR POSITION keys to move
the cursor from field to field within a zone.
 Once at the desired field, use either the
TUNING knob or the numeric keys to enter
numeric information. Use the softkeys for
other menu selections.
DISPLAY ZONE
RF ZONE
AUDIO ZONE

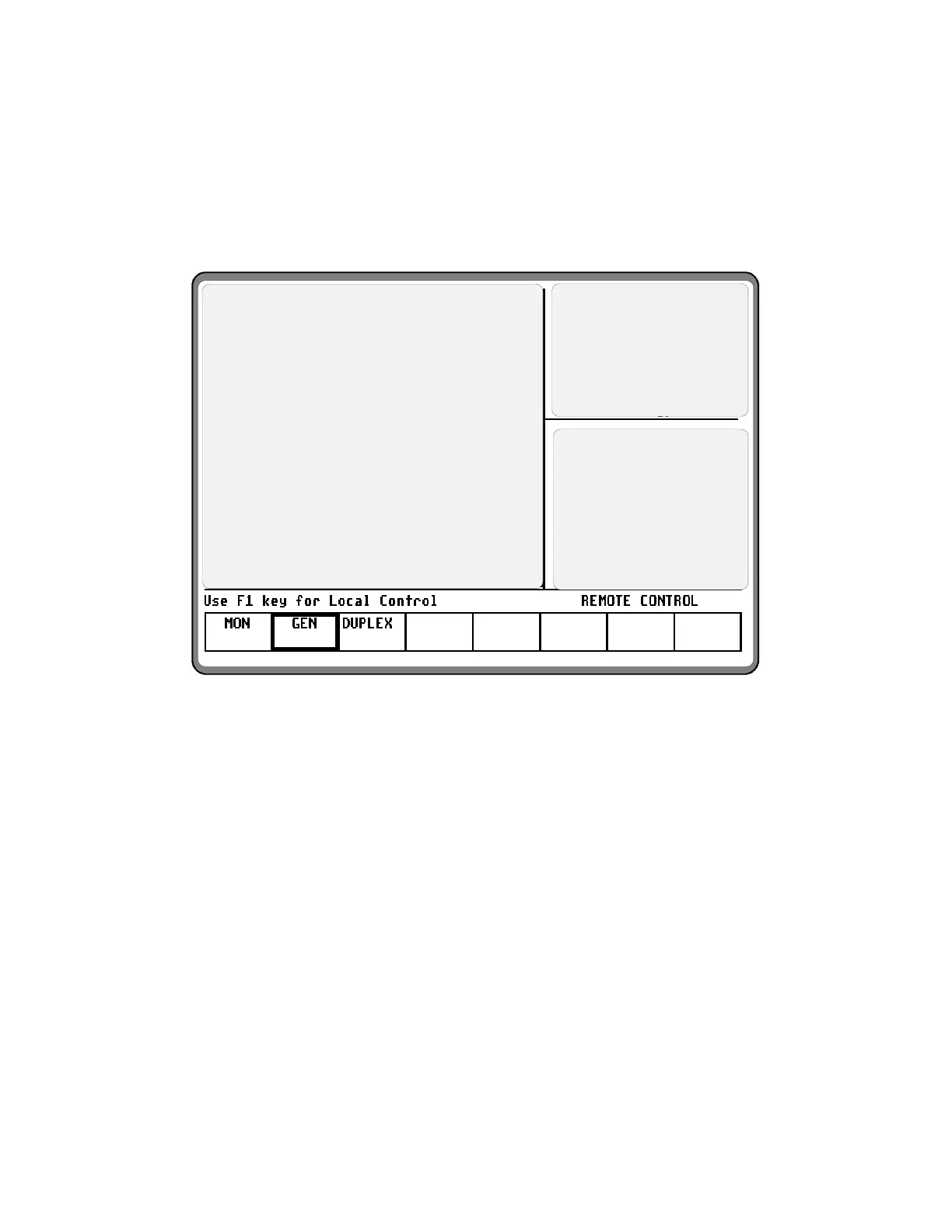

Figure 13-3. Screen Zone Arrangement
13-3.3 Expanded Display
Som
e fields have the ability to expand their
contents and overwrite other display areas. These
consist of the following:
 Spectrum analyzer, scope waveforms, bargraph
displays
 Decode tables
 Encode tables
 Dedicated keys
13-3.4 Dedicated Keys
Refer to paragraph 13-8 under the General
Operations tab in this manual for an explanation
of expanded screens in the HELP, MEM, SPF,
and CAL modes.
