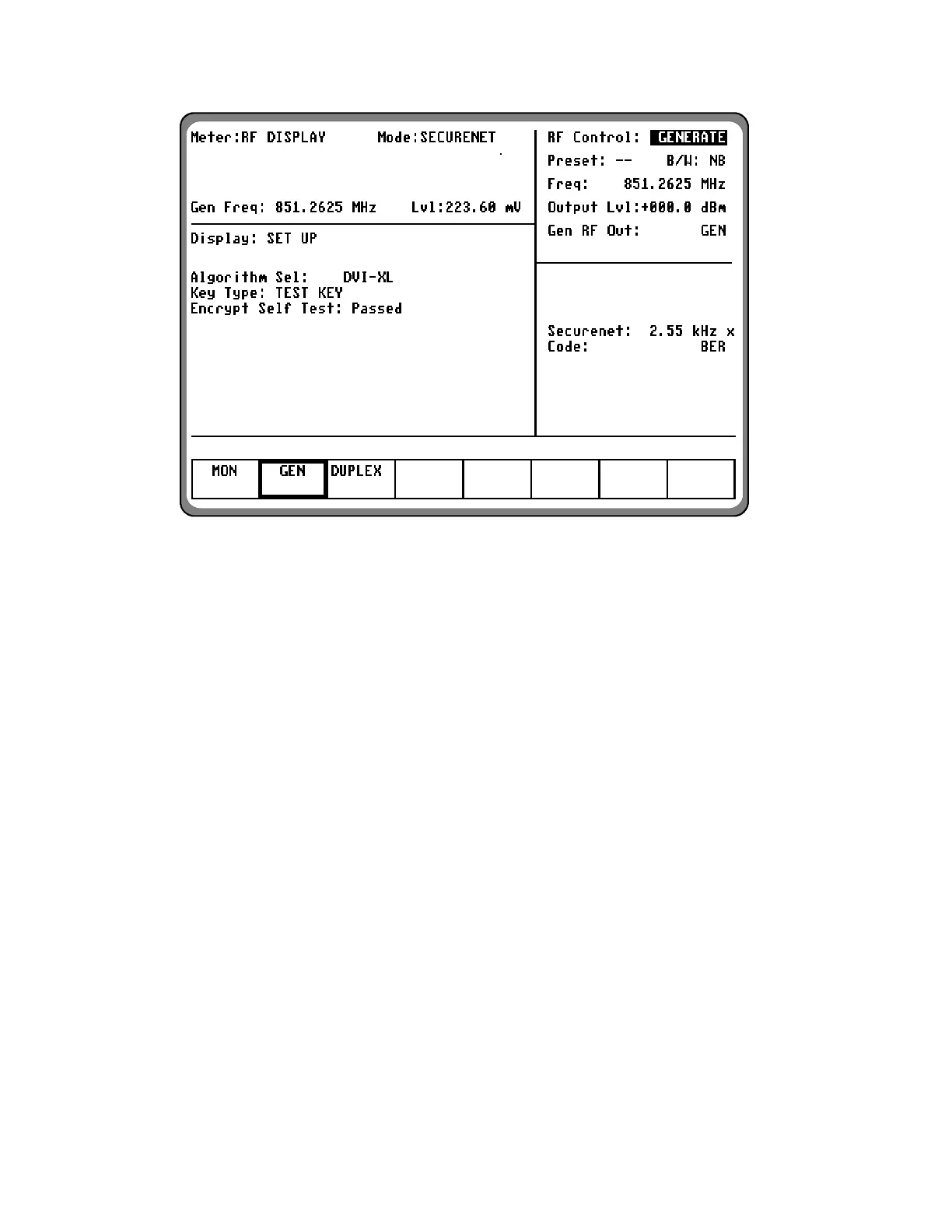

Figure 13-11. Generate Mode - RF Zone
The specific entry fields are as follows:
Preset
The preset function is the same as in the
MONITOR mode.
B/W
Selects either wide or narrow bandwidth of
the unit via softkey selection.
Freq
Enter the desired generate RF frequency
using keypad or TUNING knob.
Output Lvl
Selects generator output level in 0.1 dBm
steps over the range of -130 dBm to 0 dBm.
An alternate display of generate level in
microvolts is available in the "Meter:" area of
the Display Zone. Output level is available in
two ranges depending upon which output
port is selected:
The range of -80 dBm to 0 dBm is avail-
able when the high level GEN OUT port is
selected.
The range of -130 dBm to -50 dBm is
available when the RF I/O output port is
selected.
Gen RF Out
Selects the RF output port via softkeys. The
RF I/O port is recommended for most
applications. GEN and MON ports are com-
bined for a single connection to the radio
under test.
The GEN port is recommended where higher
levels are needed. Selection of the GEN port
is indicated by a red LED adjacent to the
GEN OUT connector.
177
