Figure 3-5. Phase Modulation
3-5.2 GENERATE Mode
The GENERATE mode (figure 3-6) configures
the Analyzer to generate an RF signal at a
controllable output level to provide for a wide
range of receiver testing. Multiple internal
andexternal modulation
signals can be simultaneously impressed on the
carrier frequency to generate composite signals
for servicing. Signals from 400 kHz to 999.9999
MHz may be generated. Center frequency is set
in 100 Hz increments.

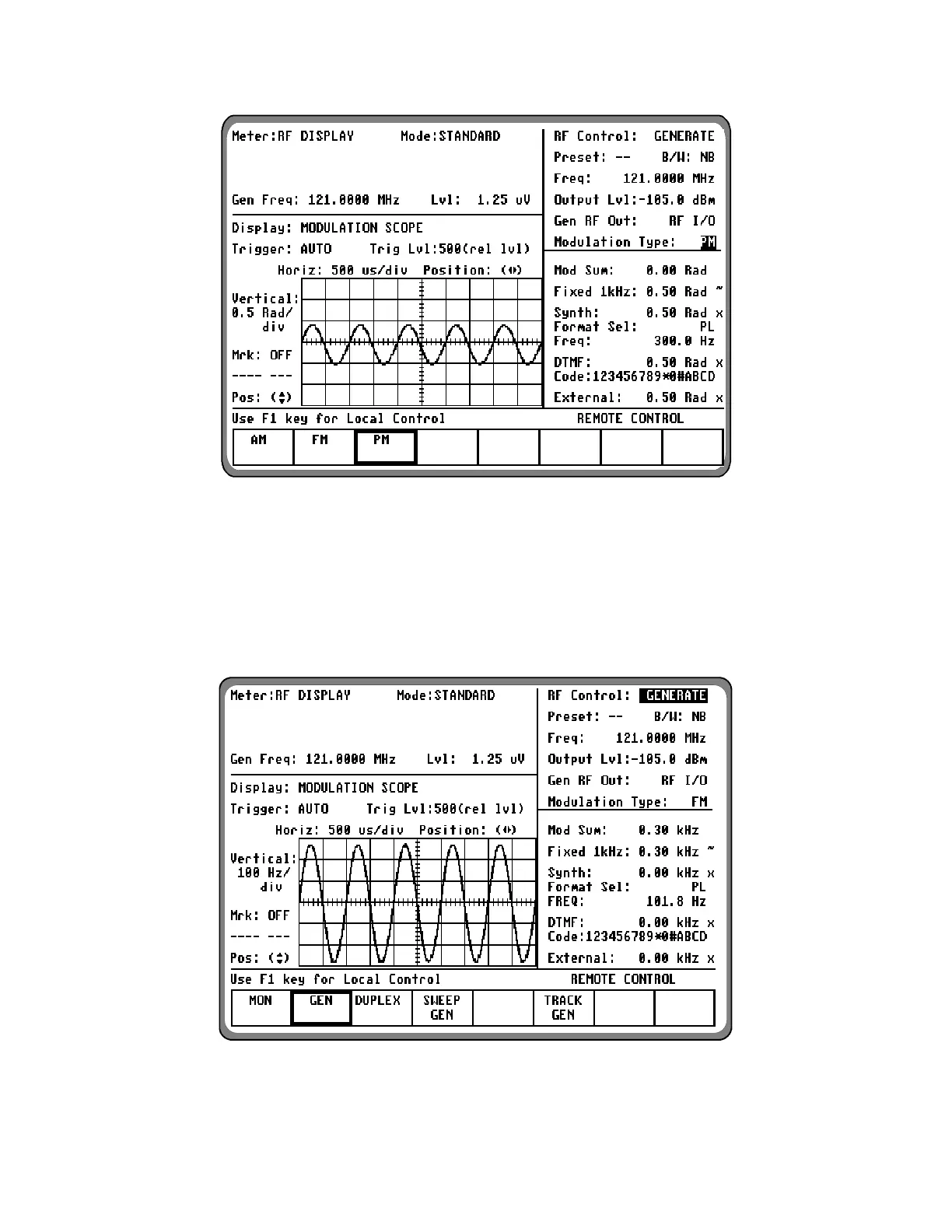

Figure 3-6. Generate Mode
