Press the desired softkey to select the
Horizontal Sweep rate (20 us to 1 sec/div).
Since all ranges cannot be shown on one screen,
press the more softkey for additional selections.

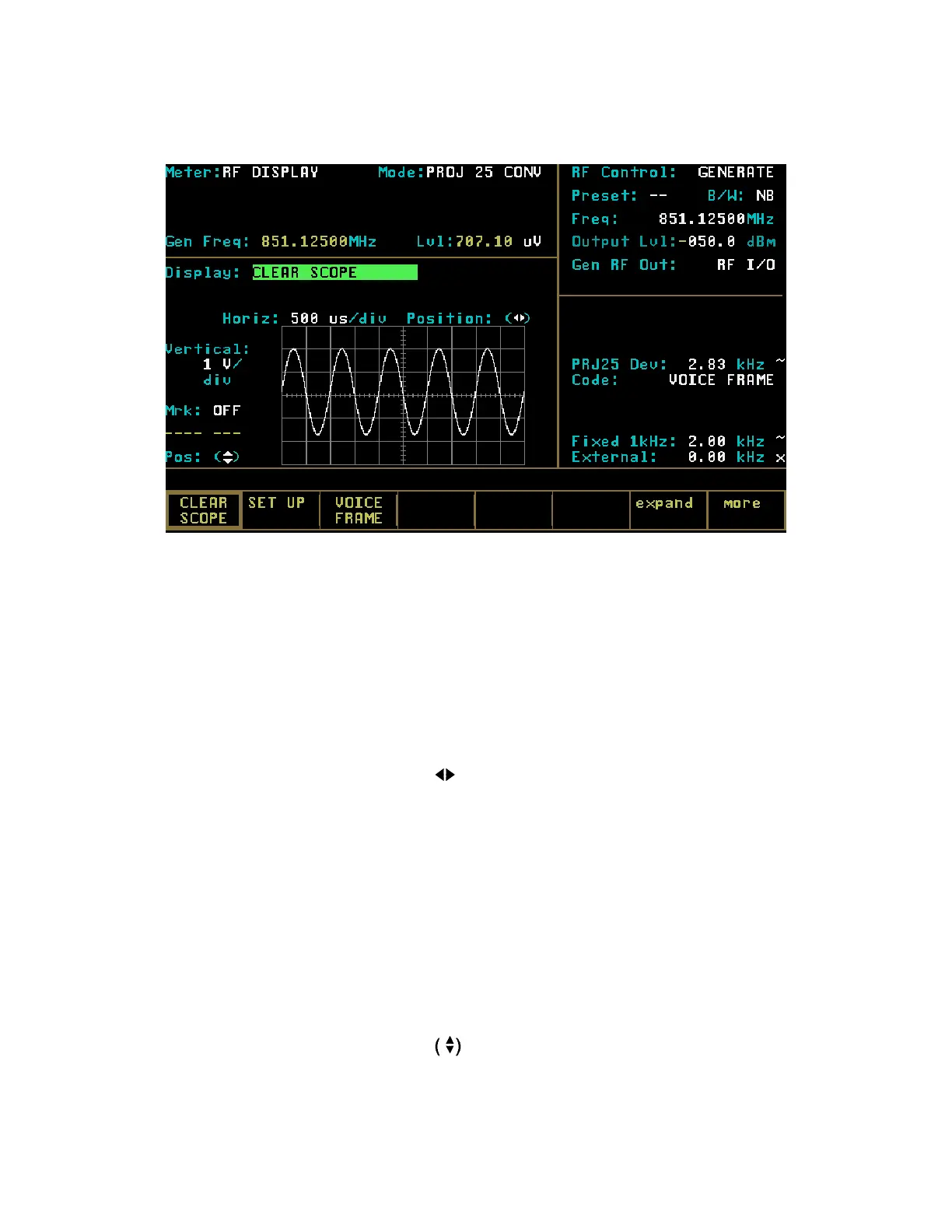

Figure 21-17. PROJ 25 CONV Clear Scope Display
NOTE
If horizontal sweep rates of greater than 10
msec/div are selected, the update rate will slow
down. A good overall setting for most
applications is 200 usec per division.
277
Horizontal Position
Adjust the horizontal position through the ( )
cursor field either by using the desired softkey
(MOVE LEFT, MOVE RIGHT) or by using the
rotary TUNING knob.
Vertical Sensitivity
Press the desired softkey to select the Vertical
Sensitivity (10 mV to 10 V per division). When
all ranges cannot be shown on one screen, press
the more softkey for additional selections.
Vertical Position
Adjust the vertical position through the
cursor field either by using the desired softkey
(MOVE UP, MOVE DOWN) or by using the
rotary TUNING knob.
Press the expand softkey from any field in the
scope display window to enlarge the display for
more detailed analysis. Use the return softkey
to get back to the normal size display.
Marker
Select marker operation by moving the cursor
to the “Mrk:” field, then pressing the desired
“delta” softkey (V, T, or 1/T). Selection
provides two markers on the CLEAR SCOPE
screen (refer to Figure 21-18). Press the toggle
marker softkey to alternate between markers
and use TUNING knob to position markers.
 V
This softkey selection provides markers that are
horizontally located to permit relative readings
along the scope vertical axis. The display
adjacent to the “Mrk:” field shows the relative
