3-5.3 DUPLEX Mode
The DUPLEX Mode (figure 3-7) provides a
simultaneous RF generator output that is offset in
frequency from the monitor center frequency and
fully adjustable in output level.
This capability provides for servicing full duplex
radio equipment as well as repeaters and radios
operating with offset transmit and receive fre-
quencies.

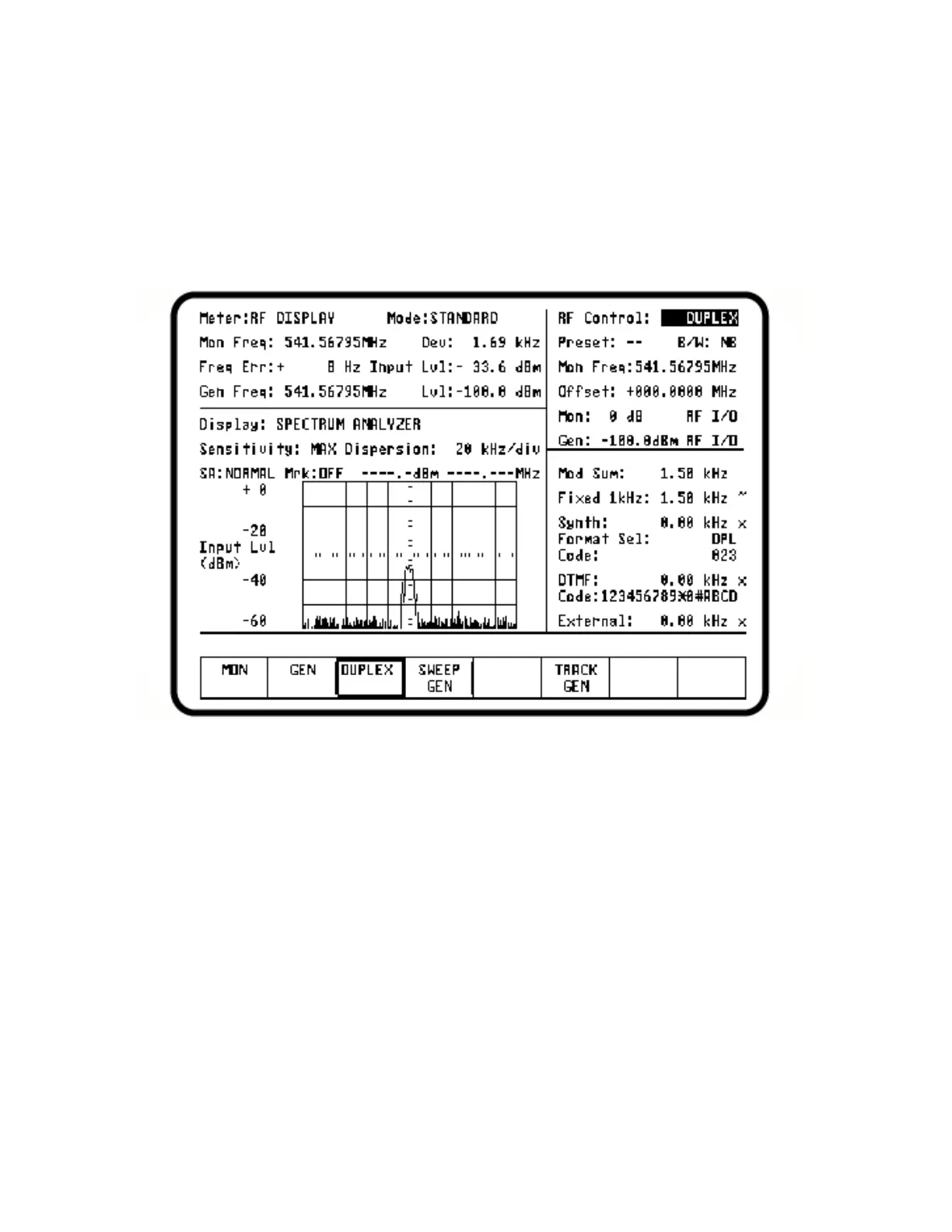

Figure 3-7. Duplex Mode
