COMMUNICATION SYSTEM ANALYZER
SOFTKEY LABELS
SOFTKEYS
ANTENNA
CONNECTOR
PROJECT 25 RADIO
N
OTE
ENSURE THE SQUELCH
HAS BEEN SET PROPERLY
BEFORE ATTACHING THE
RADIO. (REFER TO CAUTION
PREVIOUS PAGE)
GENERAL DYNAMIC
S

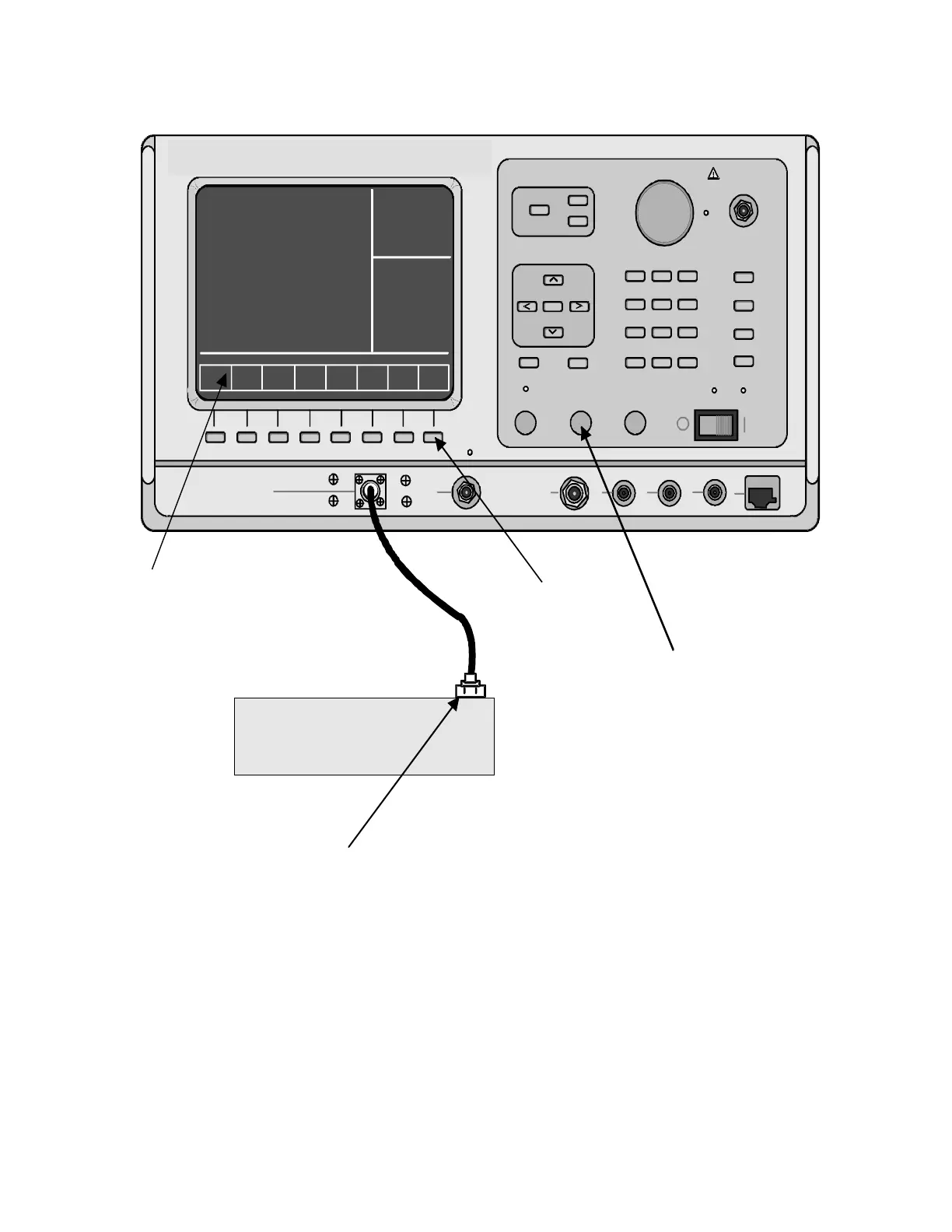

Figure 21-4. Radio to Analyzer Test Setup
21-6 ACCESSING PROJ 25 CONV MODE
Select the PROJ 25 CONV mode by placing the
cursor in the "Mode:" field in the Display Zone
located at the top of the screen. Use the
PROJECT 25 CONV softkey to select the PROJ
25 CONV mode. A screen similar to Figure 21-5
appears.
When the display zone "Mode:" is set to PROJ 25
CONV, the R2670 will configure itself to
generate and monitor conventional Project 25
signals.
261
