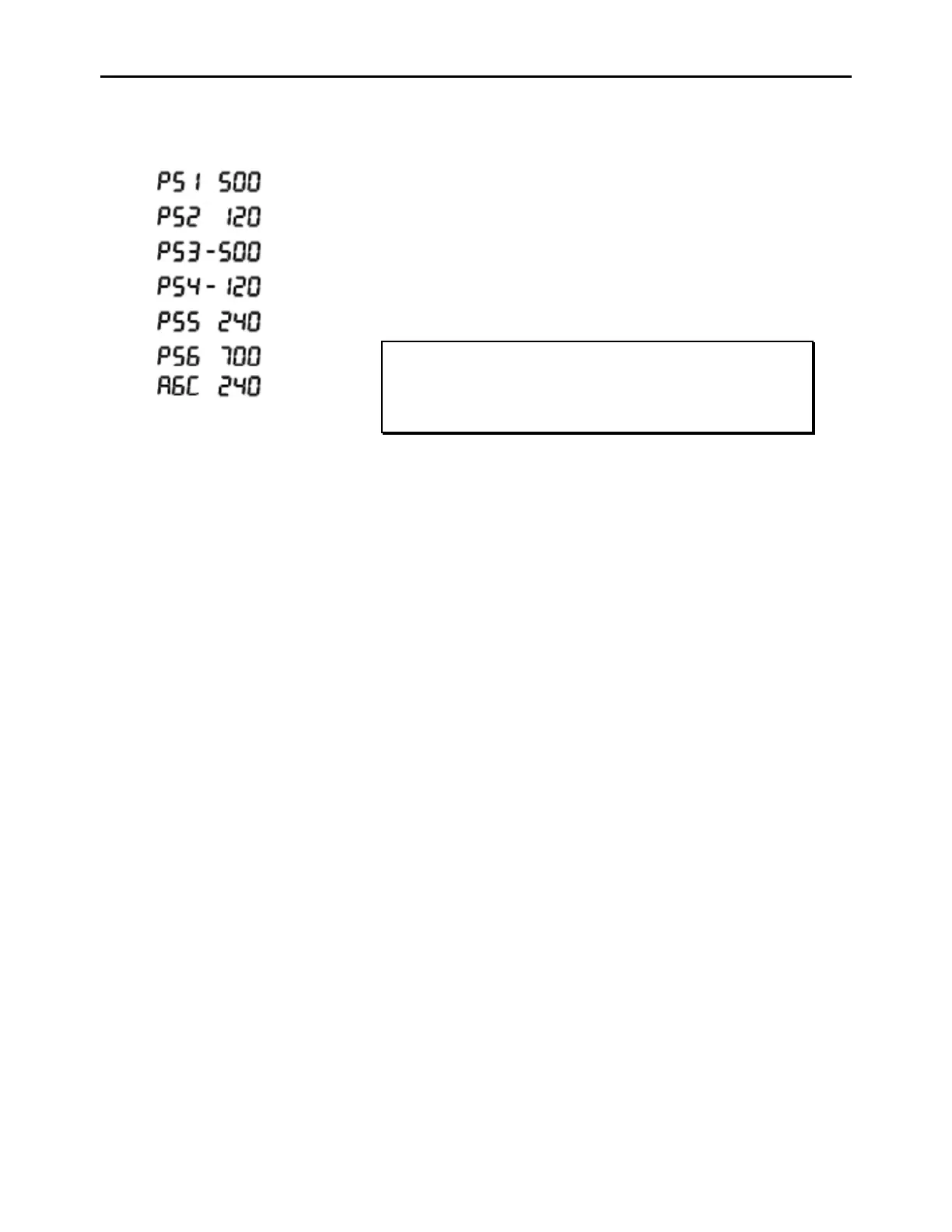

5.3.4.3 Voltage Measurements
With the transceiver set-up in the meter-mode per Paragraph 4.4.5,
pressing the [R/T] key will display the voltages of the internal power
supplies and of the batteries. The first time [R/T] is pressed the voltage
of the +5VDC supply - PS1 is displayed. Each consecuti
ve press of
[R/T] brings up the next supply; PS2: +12VDC, PS3: -5VDC, PS4: -
12VDC, PS5: +24VDC (external power batteries), PS6: +70VDC and
AGC.
NOTE
The AGC level displayed is a relative expression
of voltage only.
The AGC is expressed as a digital value from 000
to 255.
