General Dynamics C4 Systems URC-200 (V2)
129
7.0 URC-200 (V2) SYSTEMS
As a convenience for operators, this section provides information on two commonly
installed systems using the URC-200 (V2). Refer to the individual equipment manuals for
more detailed information on each of the system components.
7.1 Rack Mounted Base System
The Rack Mounted Base System is a UHF/VHF high power transceiver system consisting
of the following components installed in a 19-inch rack mounted tray (Figure 20):
• URC-200 (V2) Transceiver
• UPA-55H Power Amplifier
• UFB-100 or UIB-100 Filtered or Unfiltered 28VDC Power Interface Box
• UAC-350 AC Power Supply (not used if powering from DC source)
• UEC-120 or UEC-220 Remote Control Units (control up to one or two systems,
respectively)

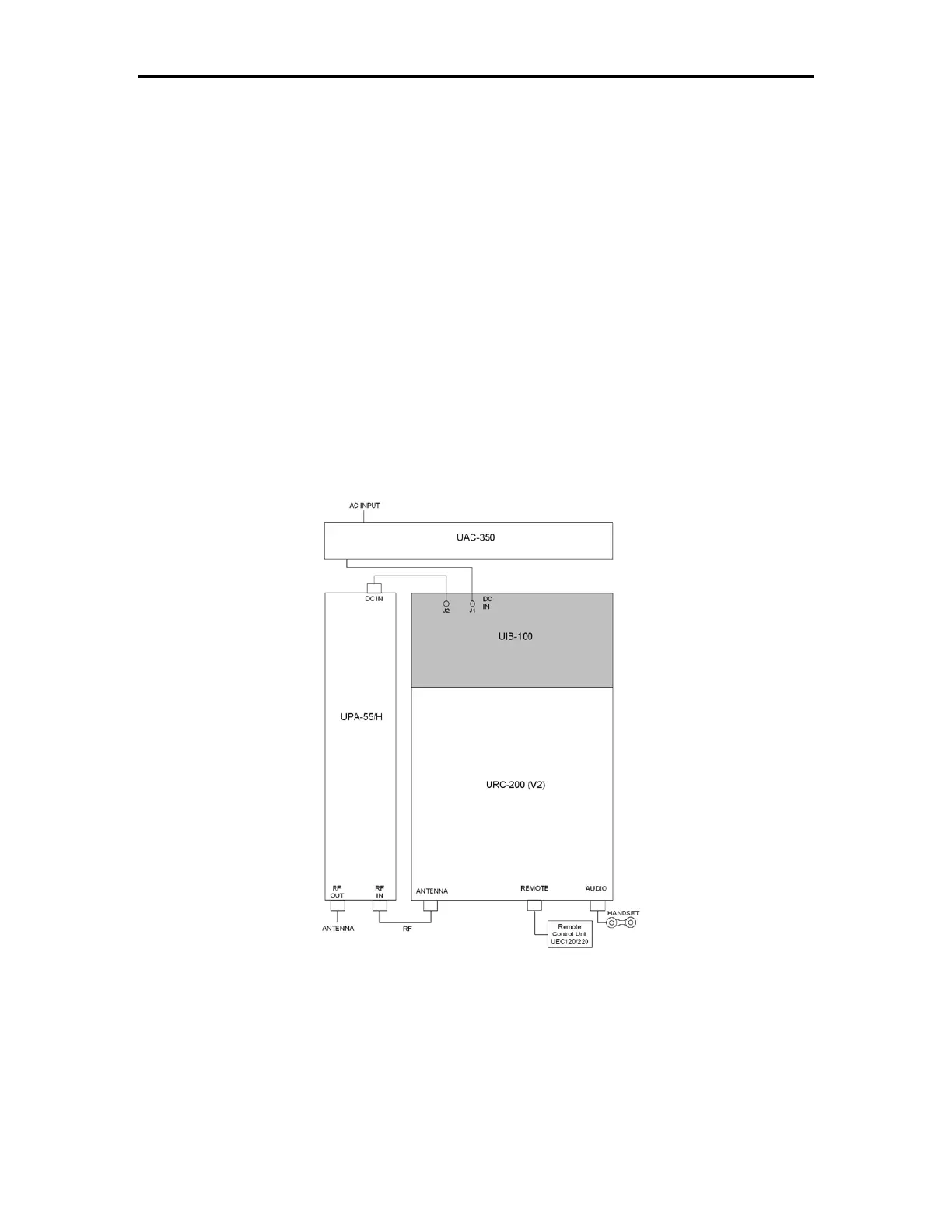

Figure 20 - Rack Mount System Components
7.1.1 Rack Mounted Base System Description of Operation
Figure 21 indicates the basic interface between the Rack Mounted System components.
