General Dynamics C4 Systems URC-200 (V2)
18
Install the UBC-100 to the rear of the Transceiver:
1. Ensure the transceiver is turned off by turning VOL/OFF control to OFF.
2. Set transceiver face down on the front panel handles as shown in Figure 4.

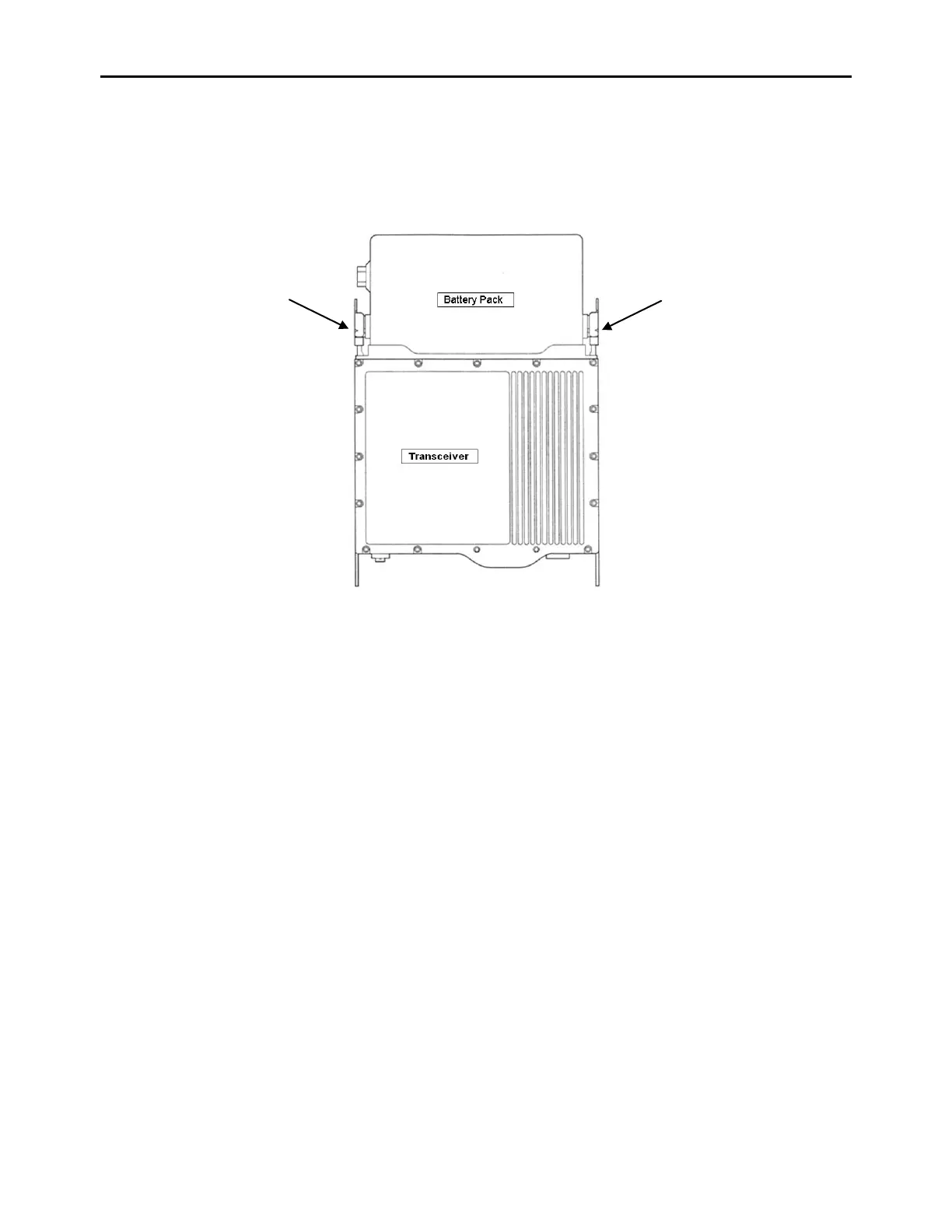

Figure 4 - Battery Pack Installation
3. Place the UBC-100 onto the rear skirt of the transceiver, fastening it into place with the
two latches located on the side of the transceiver to secure the UIB-100 case into place.
To remove batteries from the battery pack:
1. Turn off the transceiver by turning VOL/OFF control to OFF.
2. Set transceiver face down on the front panel handles.
3. Undo the two latches, located on the side of the transceiver to unlatch the battery case
from the transceiver.
4. Pull the battery case straight up and away from the transceiver.
5. Remove both used batteries from the transceiver.
Latch
Latch
