2.0 PREPARATION FOR USE AND INSTALLATION
This section provides instructions and procedures for unpacking, inspection, assembly and
installation of the URC-200 (V2).
2.1 Unpacking
To unpack, open the outer shipping container and remove the packing material. Inspect the
hardware for damage. Verify contents of the shipping container with Paragraph 1.6 and the packing
list to ensure all materials are included. Retain the packing material and the shipping container for
possible future use.
2.2 Installation
This section contains information necessary for preparing the URC-200 (V2) Transceiver for use.
Included is information on installation of the battery, handset and antenna.
Install the batteries into the battery pack. Either one or two batteries may be installed into the
battery pack. If using two batteries, always use two batteries of the same part number.
The following batteries may be used in the transceiver:
BA-5390/U Lithium Manganese Dioxide Non-rechargeable
BA-5590B/U Lithium Sulfur Dioxide Non-rechargeable
BB-390A/U Nickel Metal Hydride Rechargeable
BB-490/U Lead Acid Rechargeable
BB-590/U Nickel Cadmium Rechargeable
BB-2590/U Lithium Ion Rechargeable
Orient the batteries as shown in Figure 3. The battery power connectors must be oriented as shown
or the battery pack will not install onto the transceiver.

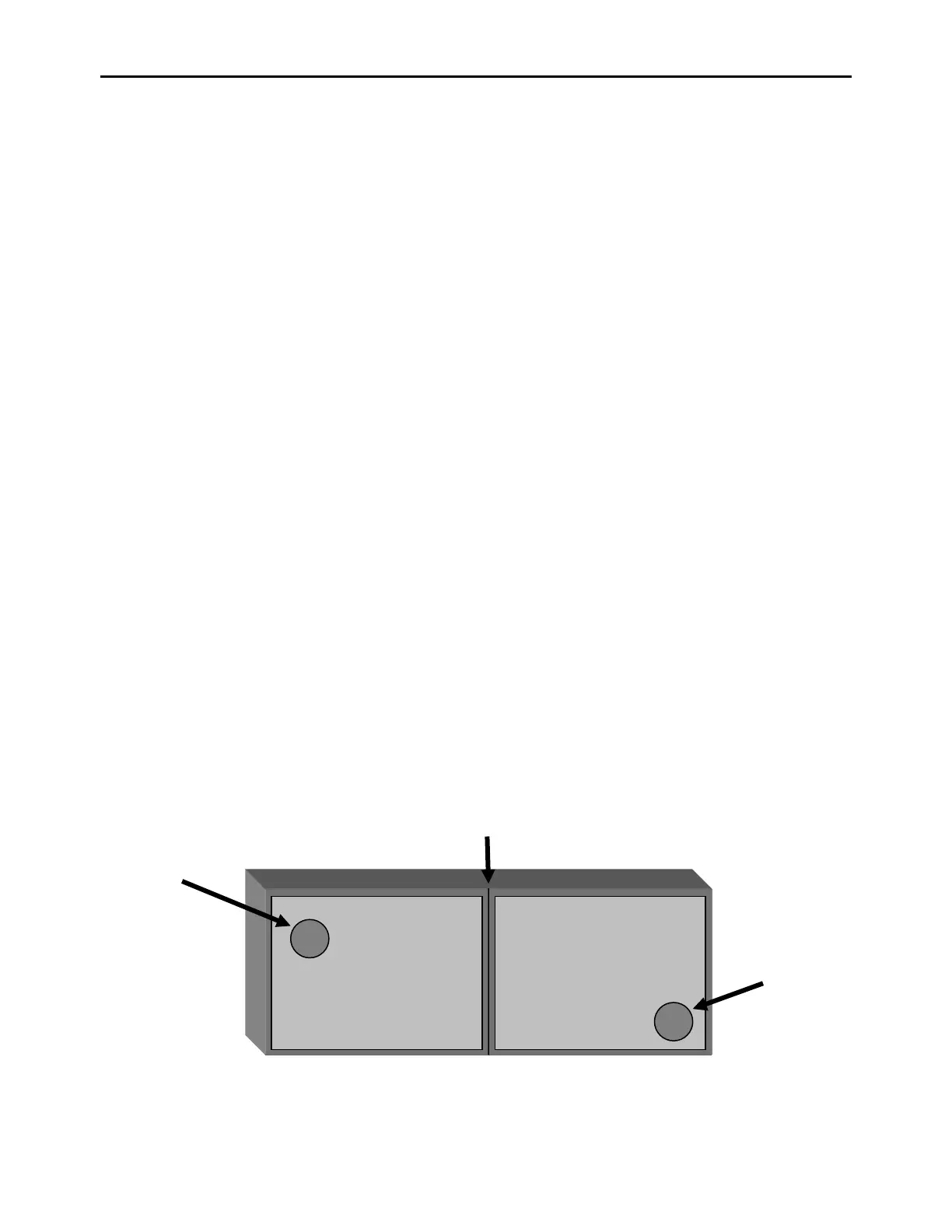

Figure 3 - Battery Case
Battery Power
Connector
Battery
Battery
Battery Power
Connector
UBC-100
Battery Case
