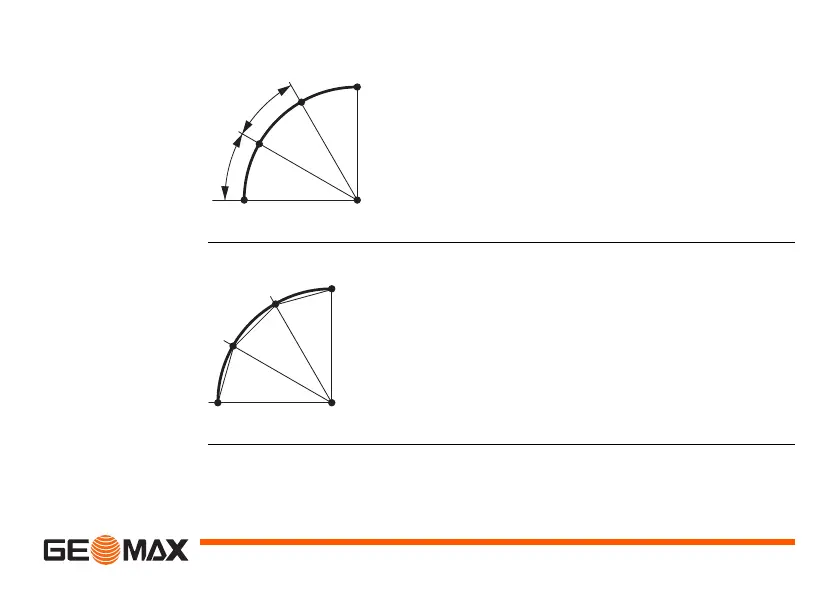

Set out arc To set out a series of equidistant points along the arc.
Set out chord To set out a series of equidistant chords along the arc.
CP Center point of arc
SP Start point of arc
EP End point of arc
P Set out point(s)
R Radius of arc
AL Arc length
CP
SP
R
AL
AL
P
P
EP
CP Center point of arc
SP Start point of arc
EP End point of arc
P Set out point(s)
R Radius of arc
CL Chord length
CP
SP
R
CL
P
P
EP
