To Next Page

To Previous Page

Coding Zoom | 85

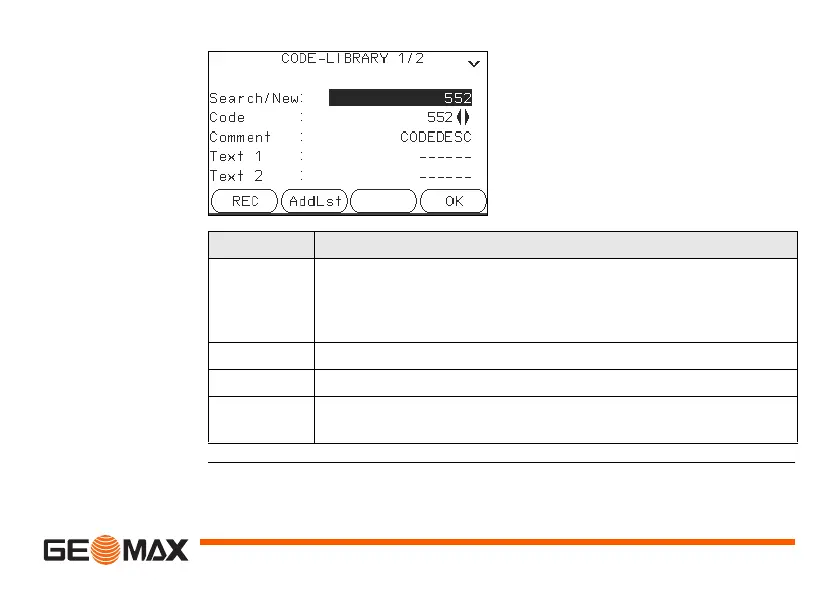

CODE-LIBRARY

REC

To record the code without meas-

urement.

AddLst

To add the entered code to the

codelist.

Field Description

Search/Ne

Code name.

After entry, the firmware searches for a matching code name,

and displays these in the code field. If a matching code name

doesn’t exist this value becomes the new code name.

Code List of existing code names.

Comment Additional remarks.

Text1 to

Text8

More information lines, freely editable. Used to describe

attributes of the code.
