To replace and adjust the swivel knife blade
1. Remove the plastic adjustment
shoe from the base of the tool
holder by rotating it counter-
clockwise until it comes
completely off the tool holder.
Leave the rubber O ring in place.
With the shoe removed, carefully
remove the old blade by grasping
it with needle nose pliers and
pulling gently.
Install a new blade in the hole
provided, pushing the blade in
gently until completely seated.
Carefully thread the shoe onto the
knife holder, turning it clockwise
until it is fully seated. This will
fully expose the knife blade.
Rotate the shoe counter-clockwise
until approximately .005 inches
(about the thickness of two
sheets of paper) of the knife is
showing.

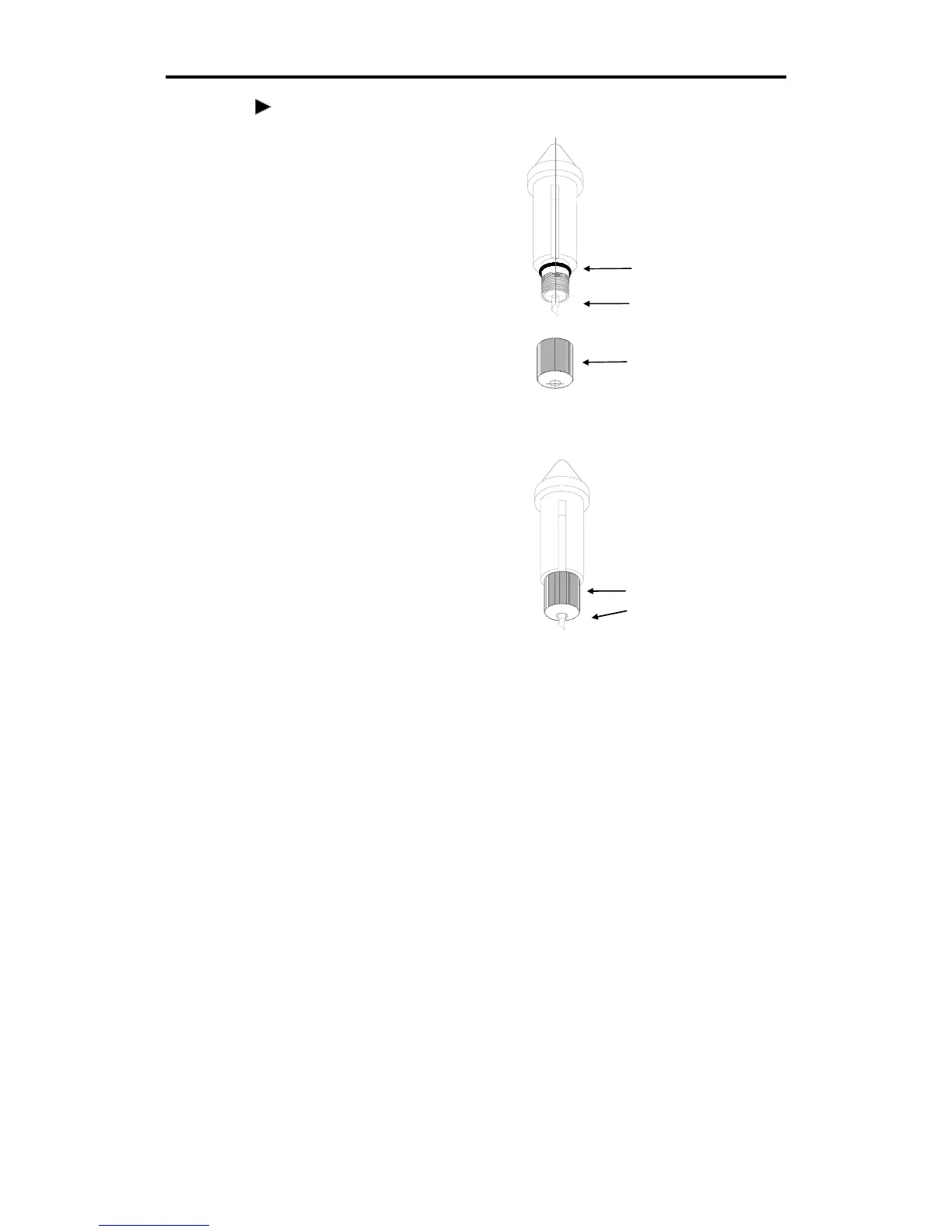

1. Remove shoe
3. Thread shoe
4. Adjust for proper cut
Rubber O ring
2. Insert and adjust
blade
