BLADE REPLACEMENT
Five carbide knife blades are included with the GS15
plus
:
! one installed in the tangential knife holder
! two tangential knife spares
! one installed in the swivel knife holder
! one swivel knife spare
Extra blades and special angled blades for sandblast vinyls are available
from your Gerber distributor.
WARNING: The blade is very sharp. Take care when handling
the knife holder and blade.
CAUTION: Blades are fragile and can break. Do not use tools
to handle new blades.
The replacement procedures for the tangential and swivel knife blades
are different.
To replace the tangential knife blade
1. Loosen the hex screw with the Allen wrench from the tool kit.
2. Carefully remove the old blade.
3. Install the replacement blade in the slot provided, not riding up on
either edge.

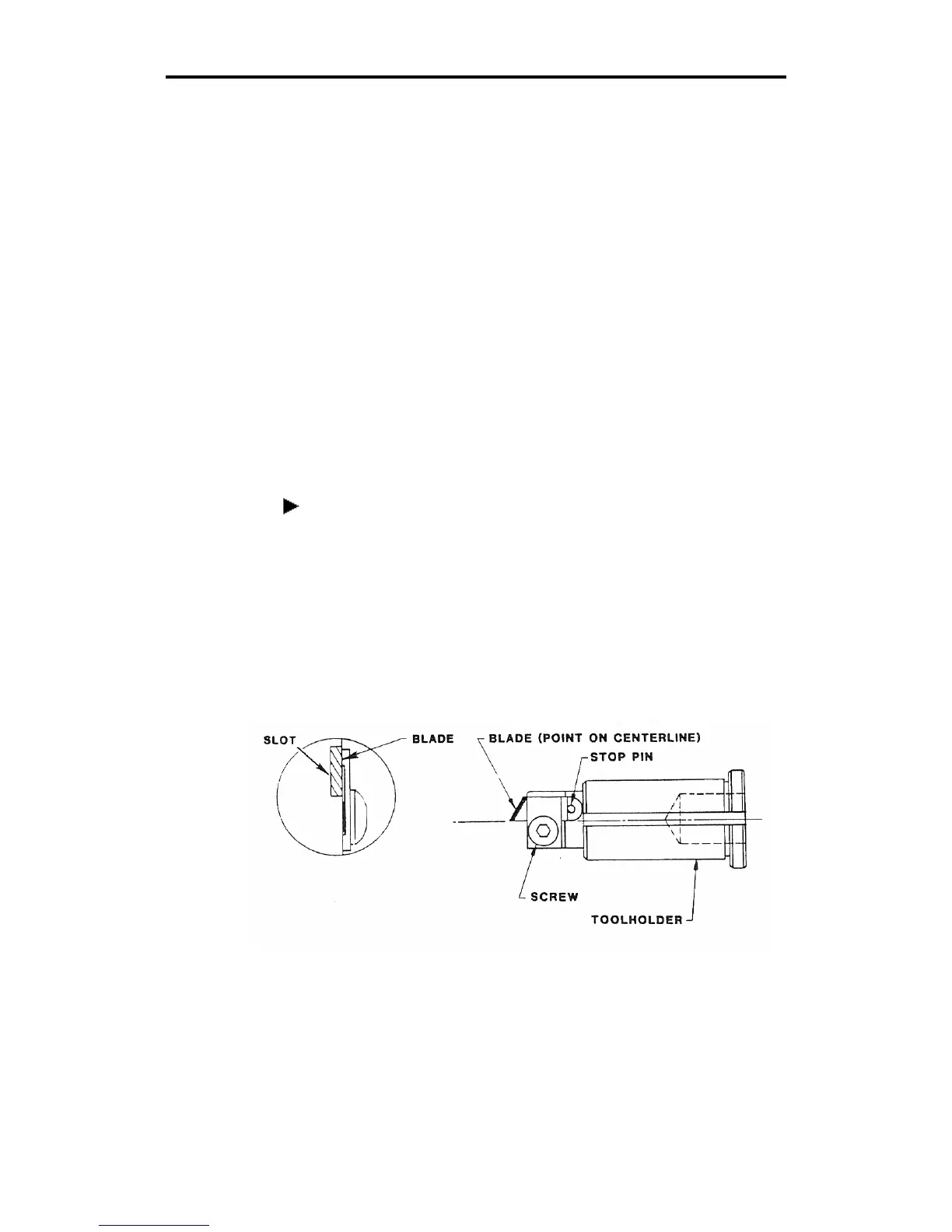

Gently seat the flat end of the blade against the pin stop with the blade point
toward the center of the tool. Retighten the hex screw.
