Special Diagnostics 45
X08 CUT TEST
To plot the X08 cut test
1. To access the X08 cut test plot, hold the RESET key while powering
up.
2. Load vinyl and install the knife holder.
3. Press the down arrow.
4. Press RUN SINGLE to plot once or RUN CONT to plot
continuously.

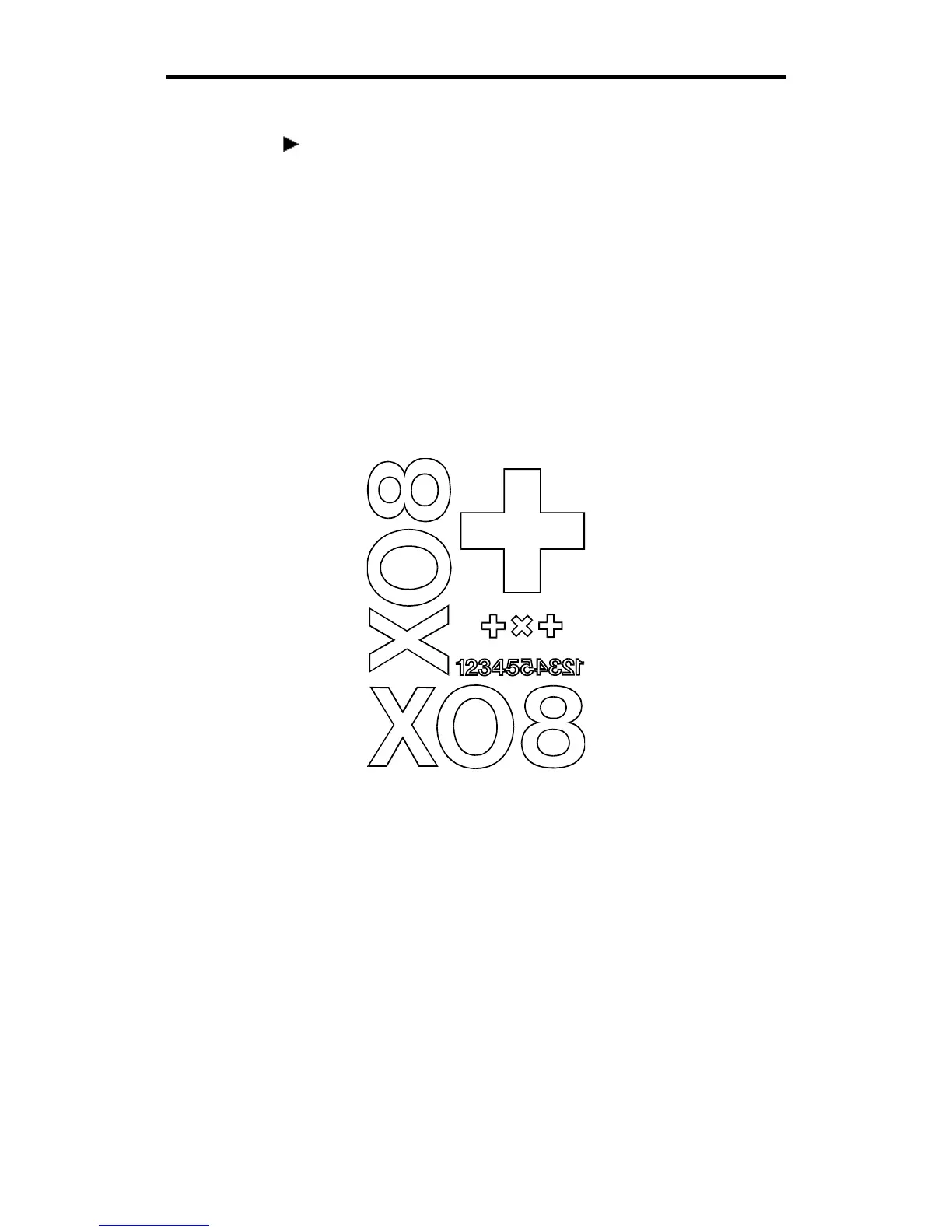

5. Compare the test plot to the illustration below. If the plot is
different, contact Gerber Field Service.
