Special Diagnostics 43
WAGON WHEEL TEST PLOT
To plot the Wagon Wheel test plot
1. To access the Wagon Wheel test plot, hold the RESET key while
powering up.
2. Load plotting paper and install the pen holder.
3. Press left arrow key to access diagnostic.
4. Press RUN SINGLE to plot once or RUN CONT to plot
continuously.

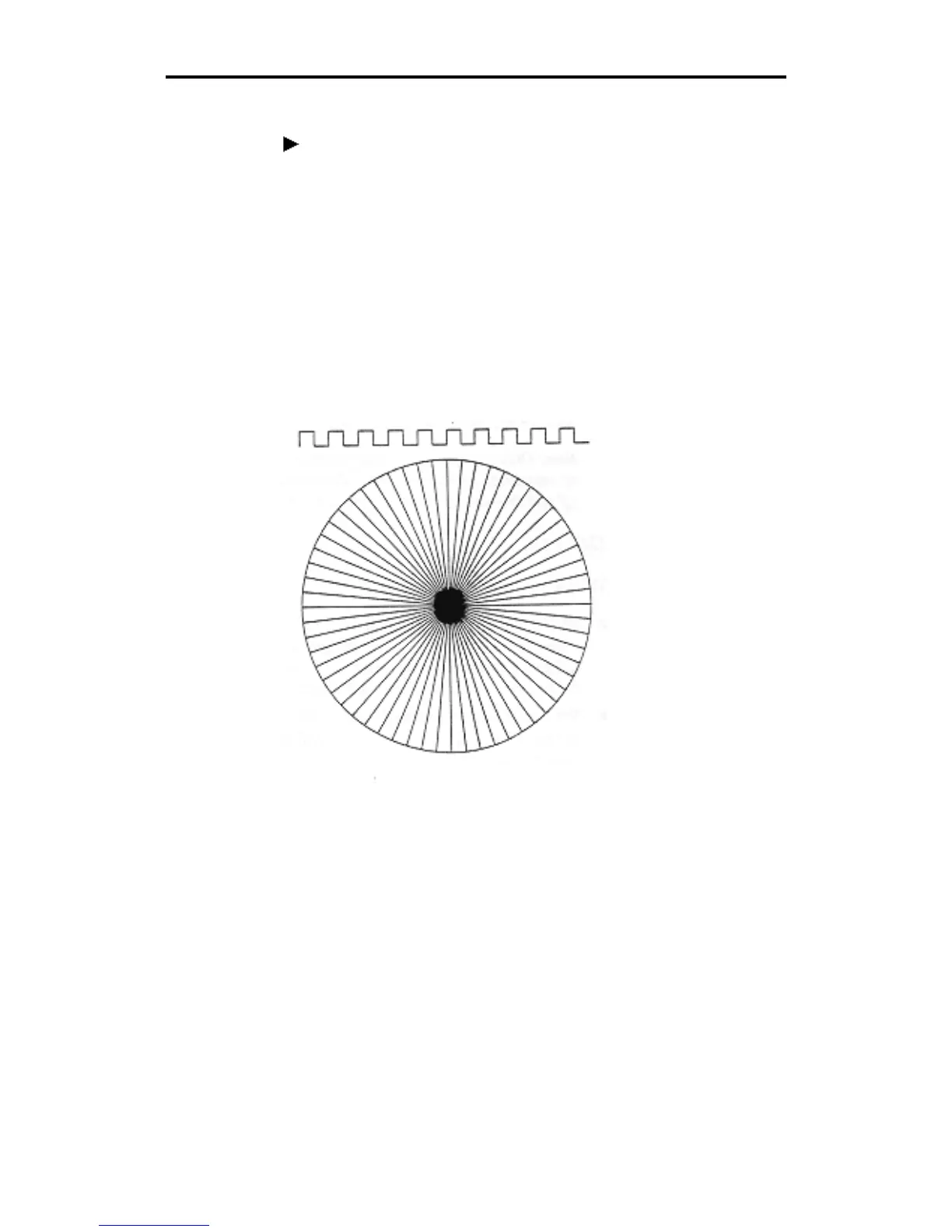

5. Compare the test plot to the illustration below. If the plot is
different, contact Gerber Field Service.
To Next Page
