Service and Maintenance 51
3. Tip the plotter on its left side.
CAUTION: Do not rest the plotter on its right side. Do not use the
way shaft to lift or turn the plotter.

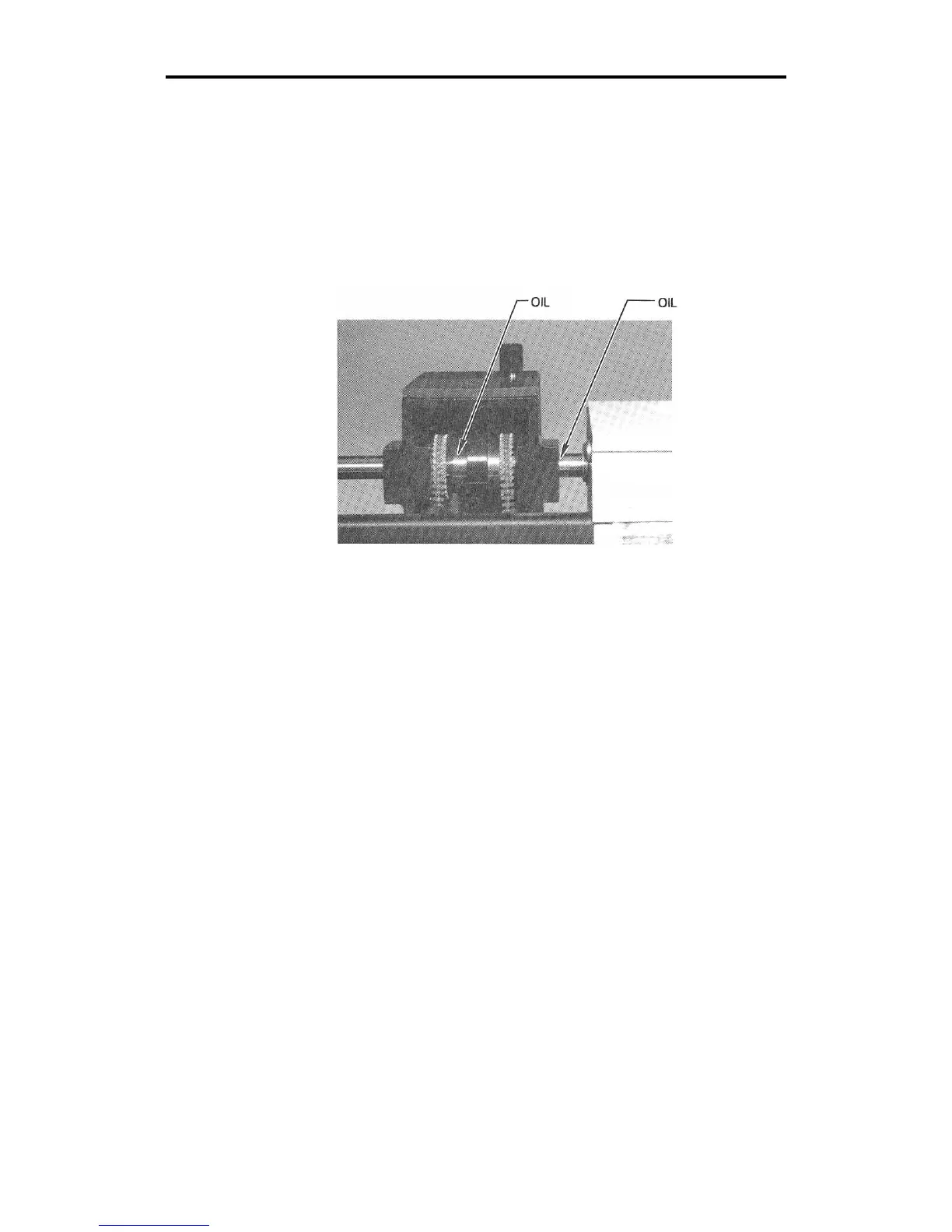

4. Place one or two drops of oil on each side of the ball bushing (as
indicated) and in the oil hole.
CAUTION: Do not place any oil on the tangential knife belt.
To Next Page
