| 106 | 6 Repair | CARDIOHELP System |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
CAUTION!
The release mechanism on the side of the venous probe must be used to open and close the guard.
u Guard safety release mechanism replaced.
u Inspection after repair has been carried out.
6.4 Reparing the Emergency Drive
Requirements
Service training part 1
CAUTION!
ESD-sensitive components
To prevent damage to ESD-sensitive components, an ESD-protected environment must be set up.
WARNING!
To finish the task, the following step must be carried out in order to ensure error-free use.
n Carrying out the inspection (⇨ "Inspection", page 33).

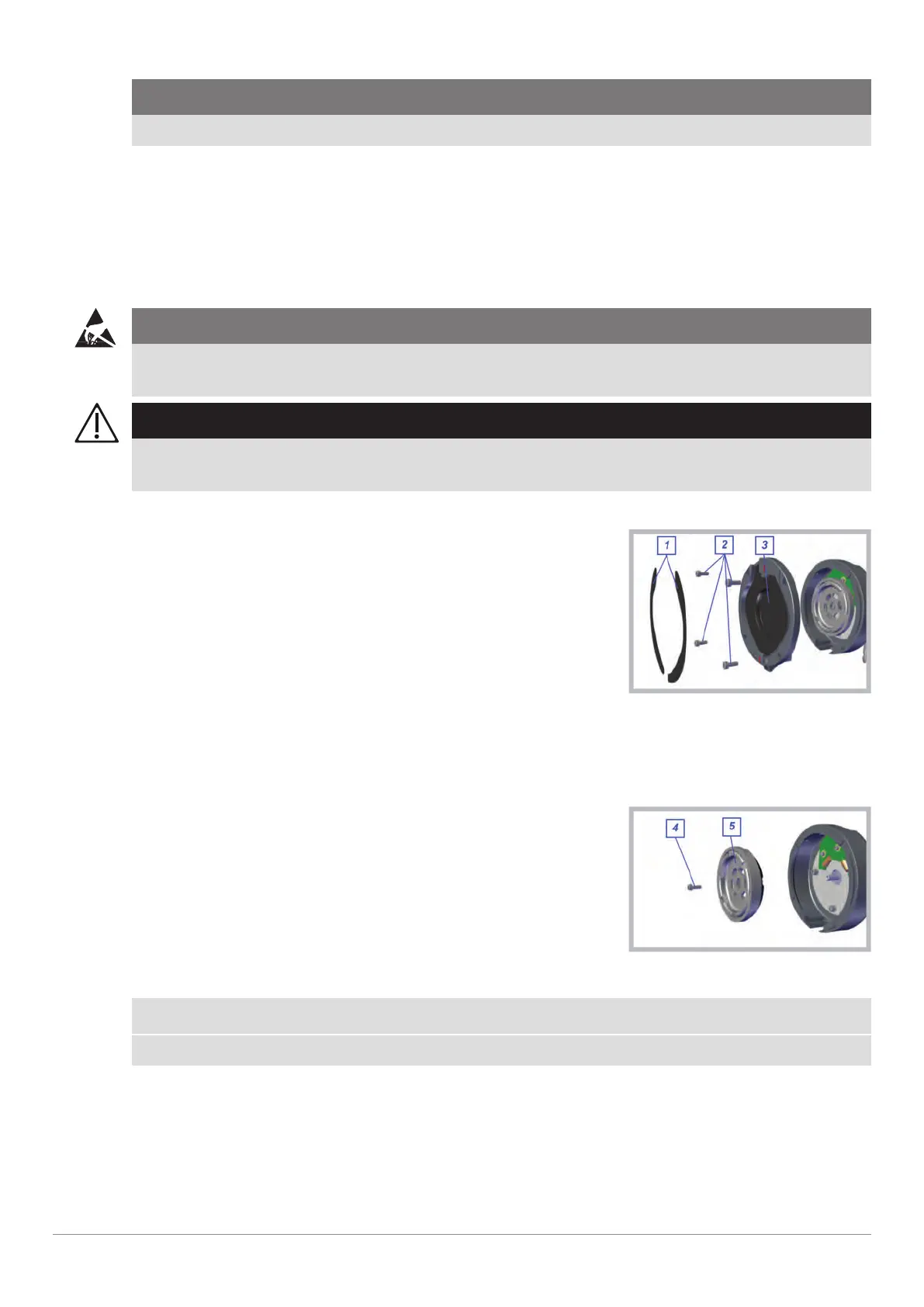

6.4.1 Dismantling the Emergency Drive
1 Remove the cover [1].
Cover
2 Remove the adhesive residues.
▶ For assembly, the surface must be free of adhesive residues and grease.
3 Unscrew the cylinder-head screws [2].
4 Take off the upper part [3].
5 Unscrew the cylinder-head screw with washer [4].
Magnet holder disk
6 Remove the magnet holder disk [5].
NOTE
Perform the necessary steps of service work.
▶ Necessary steps could be:
- Replacement of the emergency drive PCB (⇨ "Replacing the Emergency Drive PCB", page 107).
- Lubricating the emergency drive (⇨ "Lubricating the Emergency Drive", page 74).
▶ The dismantled parts are installed in reverse order.
▶ Attach the guard plate using the M4 screw and the washer with a torque of 2.8 Nm and Loctite 270.
