| CARDIOHELP System | 2 System Components | 19 |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH

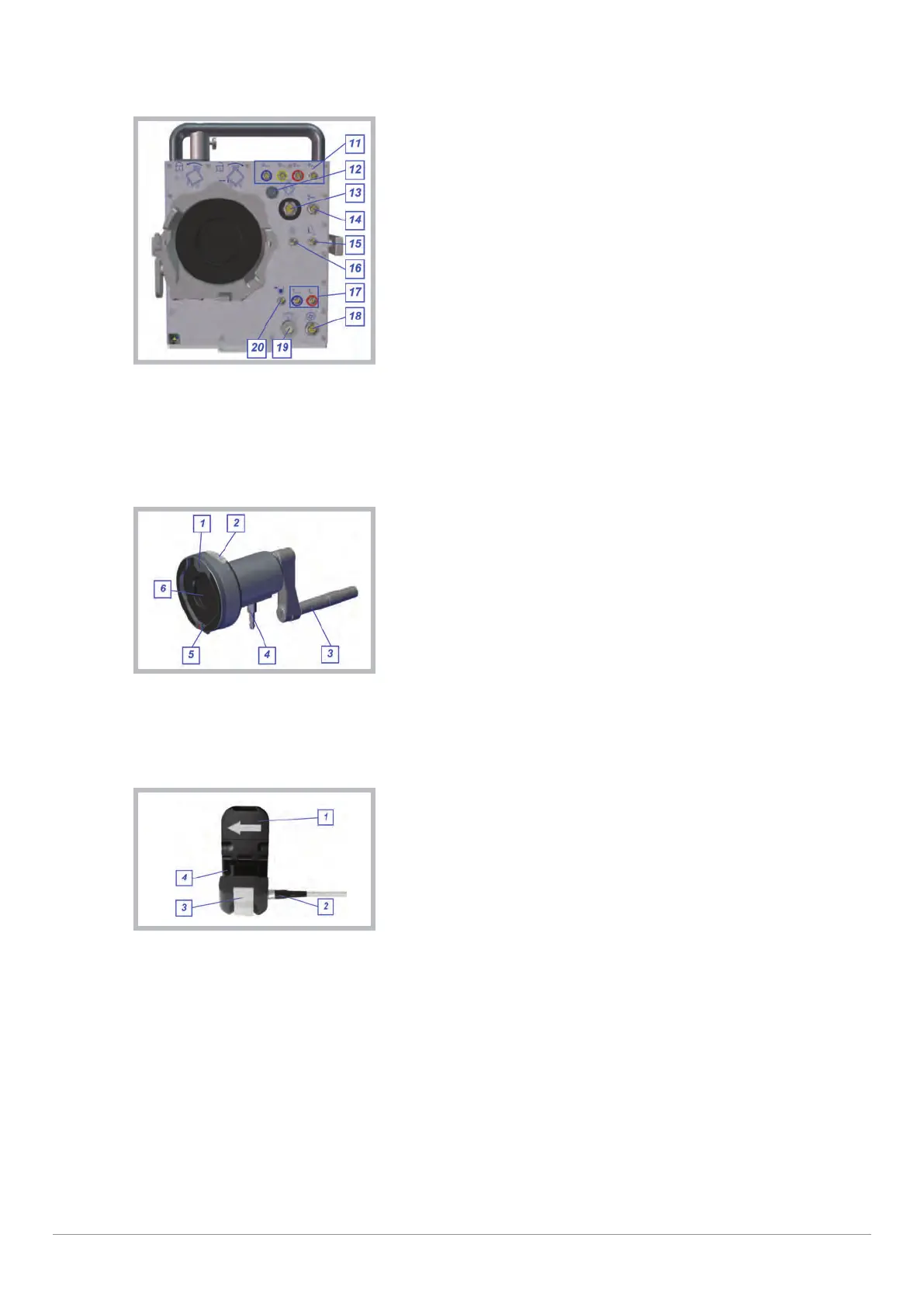

Rear
11 Interfaces for external pressure sensors
12 Holder for connection cable of disposable
13 Interface for sensors of disposable
14 External clamp (no function)
15 Interface for venous probe
16 External bubble sensor
17 Interfaces for external temperature sensors
18 External drive (no function)
19 Interface for flow/bubble sensor
20 Interface for level sensor
Sensor connections
2.5 CARDIOHELP Emergency Drive
The CARDIOHELP Emergency Drive is the emergency drive for the CARDIOHELP System.
The term emergency drive will be used in the following descriptions.
1 Locating lug
2 Speed indicator LED
3 Hand crank (unfolded)
4 Fastening bolt
5 Locking device
6 Pump drive
CARDIOHELP Emergency Drive
2.6 Flow/Bubble Sensor
The combined flow/bubble sensor is for flow measurement and arterial bubble monitoring.
1 Cover with flow direction indicator
2 “CARDIOHELP” connection
3 Locking device
4 Tube retainer
Flow/bubble sensor
