Specification
Voltages
Rated voltage 5 V DC

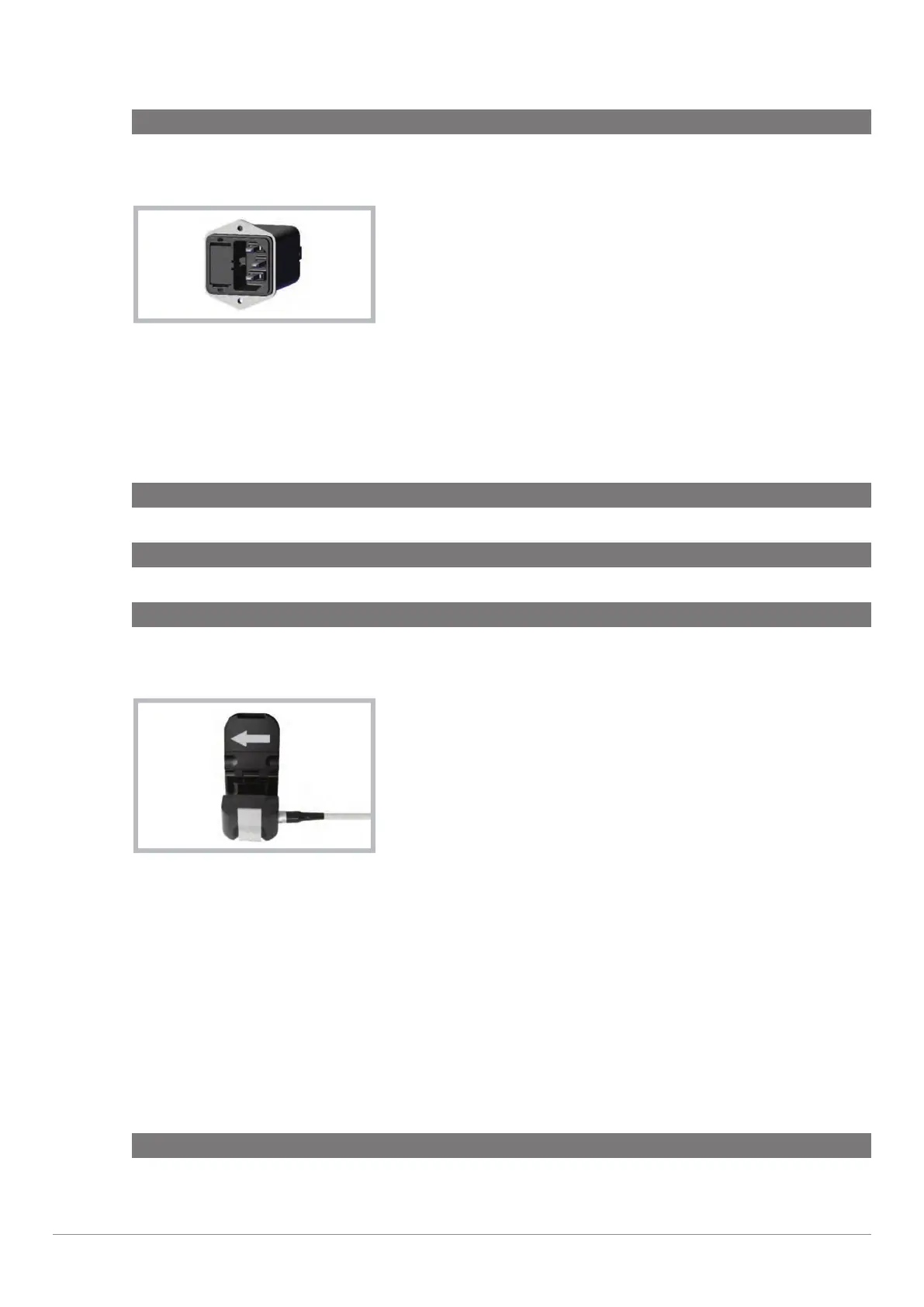

2.11.18 Mains Filter
Mains filter
Main function
n Balance of electrical disturbances
– Radio interference suppression
– Electromagnetic compatibility
Specification
Voltages
Input voltage 100 … 240 V AC
Fuses
2 x 4.0AT
Critical components
Fuse
2.11.19 Flow/Bubble Sensor
Flow/bubble sensor
Type
n FBS 3/8“ x 3/32“ L0.9
n FBS 1/4“ x 3/32“ L0.9
Main function
n Flow measurement
n Bubble detection
Additional function
n Communication with DIGIFLOW PCB
Specification
Voltages
Input voltage 3.3 V DC
