| 18 | 2 System Components | CARDIOHELP System |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH

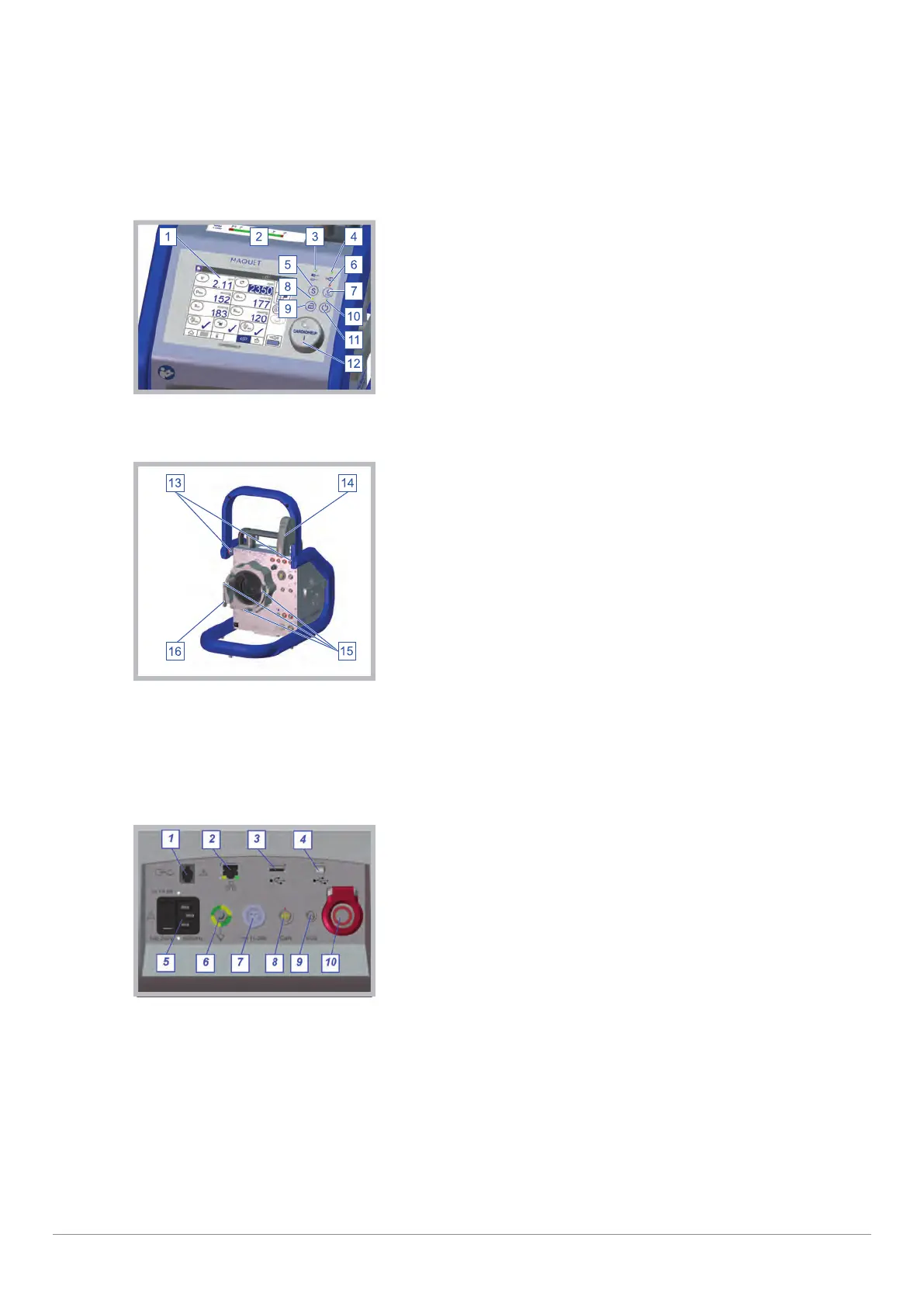

2.3 Controls
2.3.1 Control Panel
1 Touchscreen
2 Speed indicator LED
3 “Battery” LED
4 “AC/DC power supply” LED
5 Safety button
6 “Zero flow mode” LED
7 ”Zero flow mode” button
8 “Unlock” LED
9 “Unlock” button
10 “On/Off” LED
11 “On/Off” button
12 Rotary knob
Control panel
2.3.2 Rear Controls
13 Unlocking devices for guard
14 Venous probe (CARDIOHELP-i)
15 Holding pins for disposable
16 Locking device for disposable
Rear
2.4 Connections
Front
1 Alarm outlet connection
2 Ethernet connection (no function)
3 USB port type A (for data export on USB stick)
4 USB port type B (for data recording system)
5 AC connector plug with fuse module
6 Equipotential bonding connection
7 DC device plug
8 CAN connection (no function)
9 ECG connection (no function)
10 Emergency mode button with cover
Front connections
