| CARDIOHELP System | 1 General Information | 15 |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH

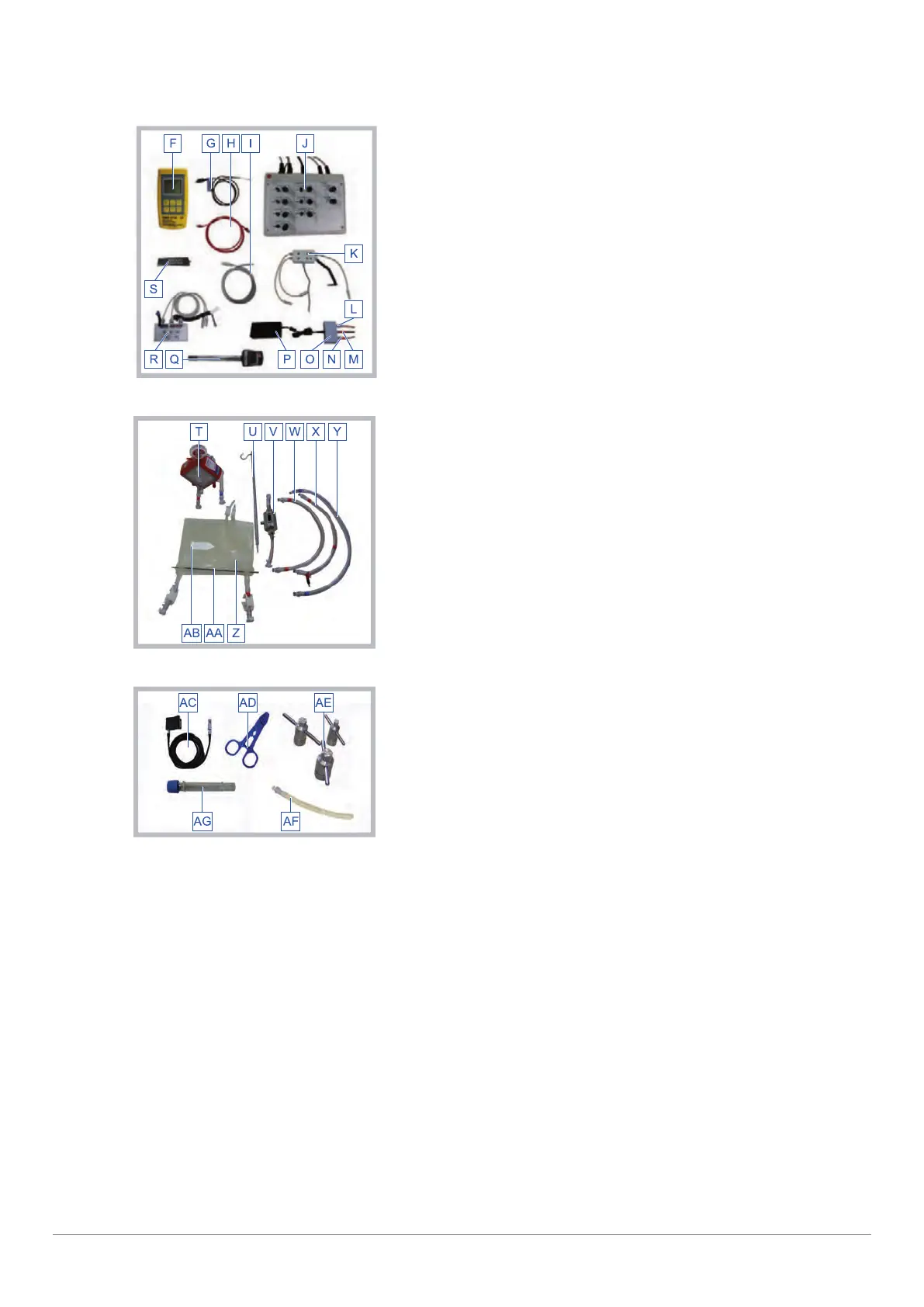

F Temperature measurement device *
G Temperature probe *
H Crossover cable
I USB type A / type B cable
J Sensor tester *
K Checking device
L DC connection cable CARDIOHELP
M DC connection cable checking device
N DC connection cable flow meter
O DC distribution box
P DC power supply unit with power supply cord AC and connection cable DC
Q Thermal Anemometer 405 *
R HMI tester
S MAQUET USB stick (XM-USB 2GB)
Service equipment
T HLS Module Advanced
(is named “HLS module” in the following text)
U Priming bag holder
V Flow meter *
W Red tube
X Red tube with clamp
Y Blue tube
Z Priming bag
AA Round bar
AB Level sensor pad
HLS test circuit
AC Level sensor
AD Plastic clamp
AE Socket wrench for decorative slotted nuts (M9x0,5; M12x1; M15x1)
AF Air bubble tube (3/8“ x 3/32“; 1/4“x 3/16“)
AG BMU cell (1/2“) with blue cap
Service equipment
* Equipment must be calibrated every 12 months. Please contact MCP-HTSC.
Instructions
The service documentation for the CARDIOHELP consists of:
n Instructions for Use
n Service Manual
n Spare parts list
1.10 CARDIOHELP Service Concept
Two different service training courses are offered.
n Service training part 1
n Service training part 2
As a prerequisite, the service training course part 1 must have been completed successfully.
