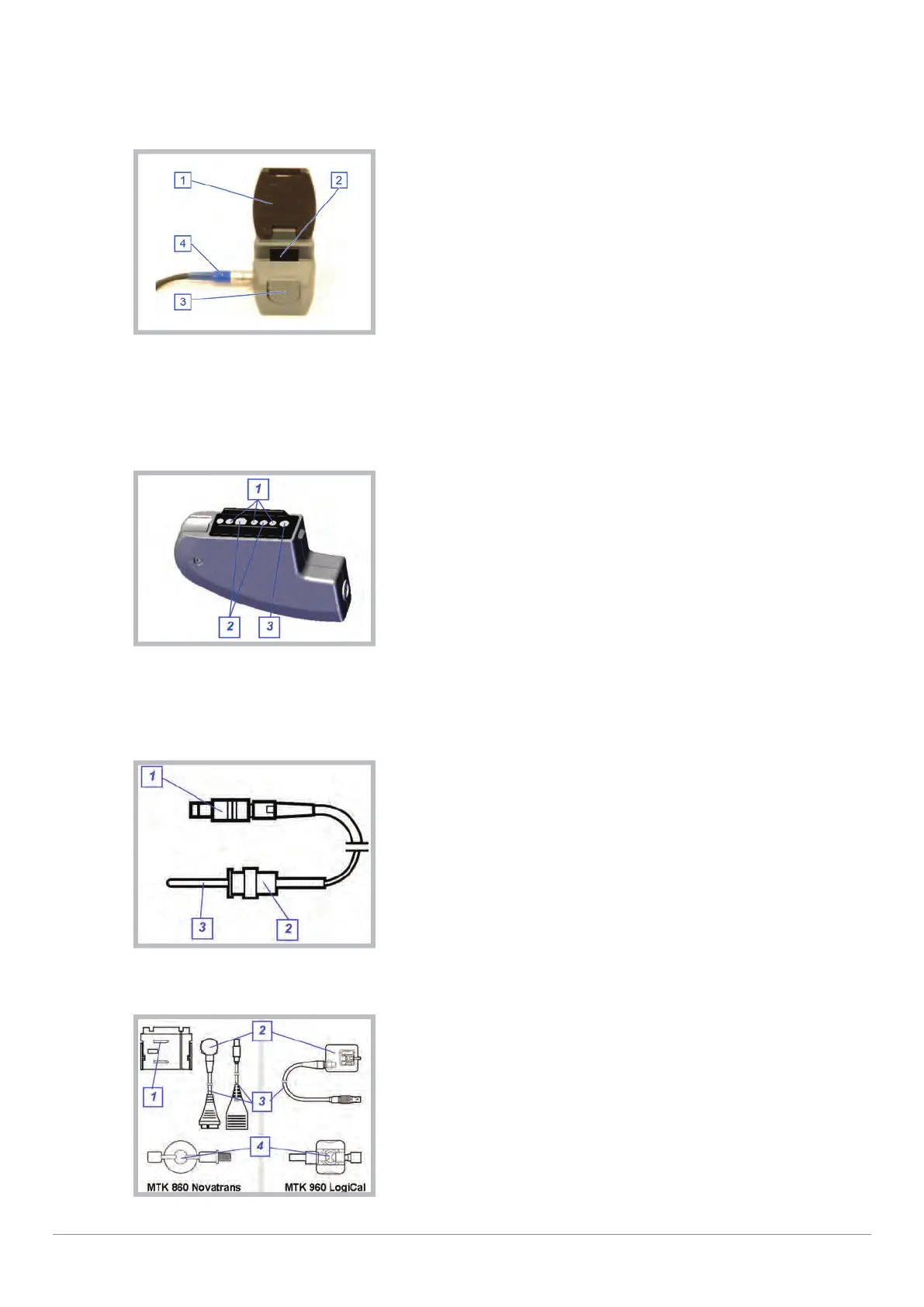

2.7 Bubble Sensor
The separate bubble sensor is for venous bubble monitoring.
1 Cover
2 Tube retainer
3 Locking device
4 “CARDIOHELP” connection
Bubble sensor
2.8 Venous Probe
The venous probe of the CARDIOHELP-i (serial number greater than 90420390) measures the venous
blood parameters S
V
O
2
, Hb, Hct and T
Ven
.
1 LEDs
2 Optical sensors
3 Infrared sensor
Venous probe
2.9 External Sensors
Temperature sensor “TPO-D L1.8”
1 CARDIOHELP connection cable
2 Lock
3 Temperature sensor
Temperature sensor
Pressure sensor set “MTK 960 LogiCal”
1 Pressure dome mounting plate
2 Pressure sensor
3 CARDIOHELP connection cable
4 Pressure dome
Pressure sensors
