| 148 | 9 Diagrams | CARDIOHELP System |

Service Manual | 3.3 | EN | 05

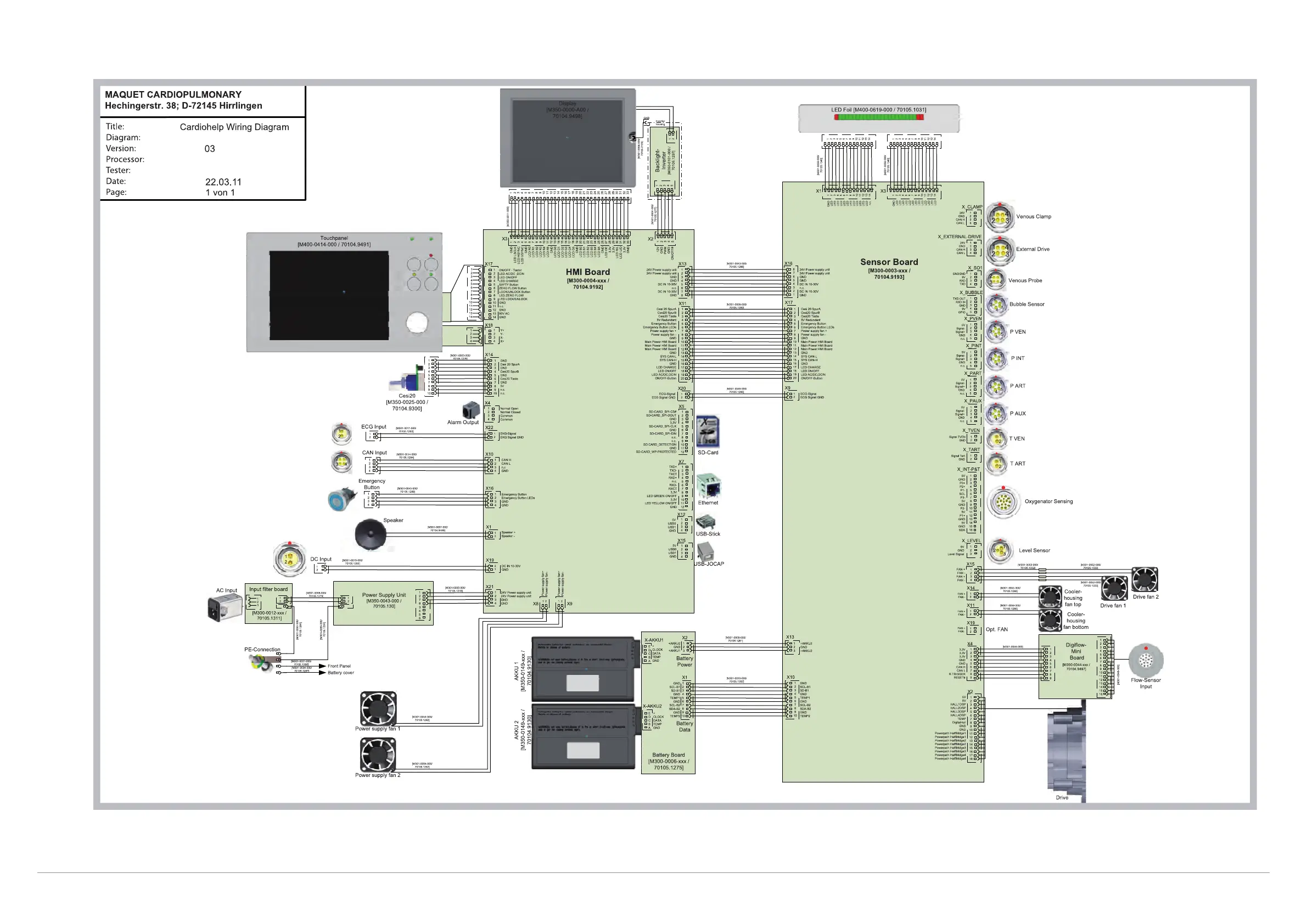

9.6 Wiring Diagram

Wiring diagram
