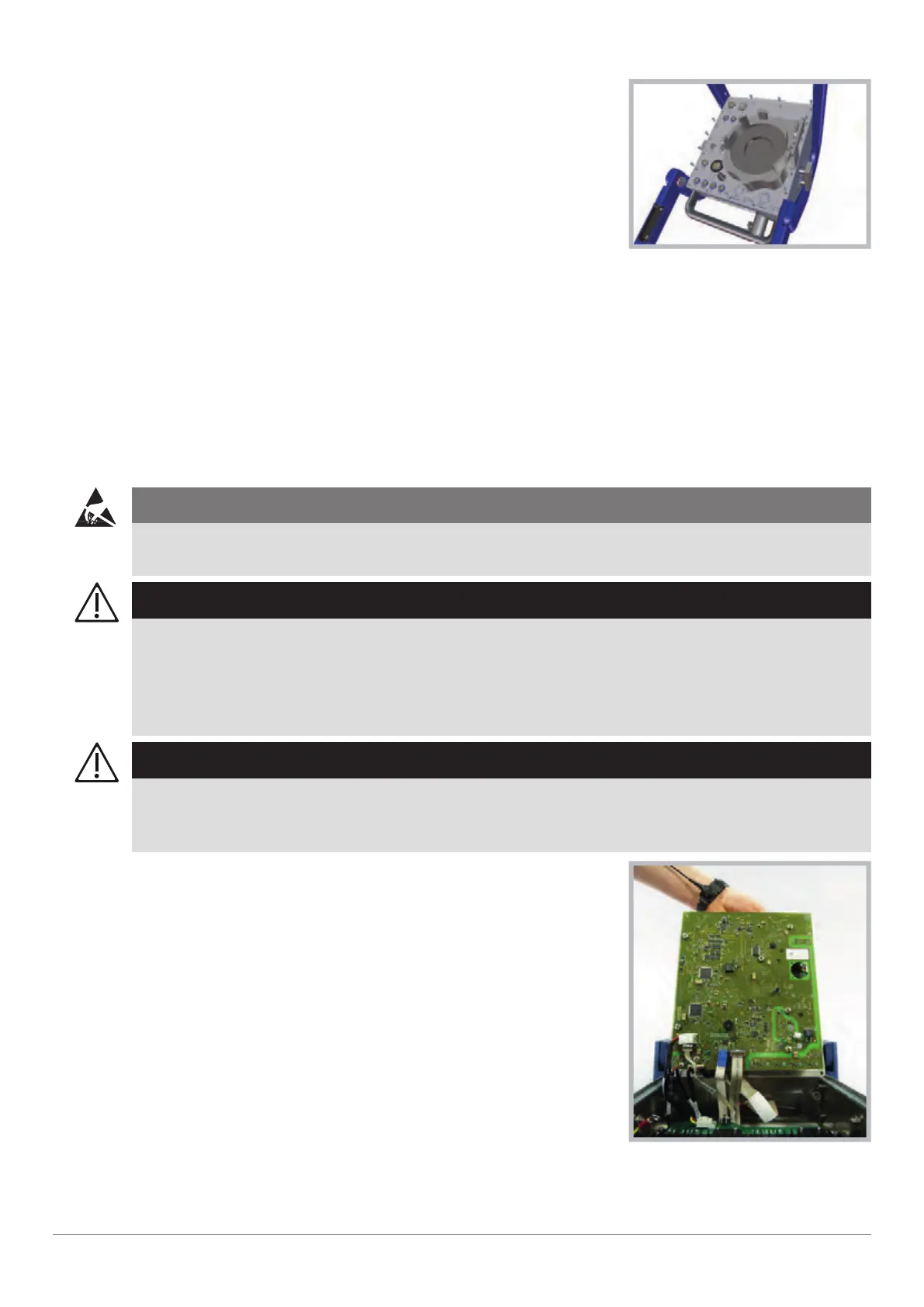

| CARDIOHELP System | 6 Repair | 111 |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
4 Attach the sensor panel to the CARDIOHELP with a torque of 0.5
Nm and Loctite 270.
Sensor panel exterior
▶ Use a maximum torque of 0.5 Nm (4.4 lbf-in).
5 Insert the batteries (⇨ "Replacing the Batteries", page 67).
6 Connect the CARDIOHELP to the external power supply with the power cable.
7 Carry out a complete inspection (⇨ "Inspection", page 33).
u Inspection after repair has been carried out.
6.7 Replacing the Sensor Panel (Set)
Requirements
Service training part 2
CAUTION!
ESD-sensitive components
To prevent damage to ESD-sensitive components, an ESD-protected environment must be set up.
WARNING!
Carry out final tasks.
To finish the task, the following steps must be carried out in order to ensure error-free use.
n Updating the software
n Validating the software (⇨ "Validate the Software", page 80).
n Carrying out the inspection (⇨ "Inspection", page 33).
WARNING!
Eliminate safety risks!
Disconnect the CARDIOHELP from the external power supply and remove the batteries before carrying
out maintenance.
1 Open the device (⇨ "Opening the Device", page 108).
Sensor panel interior
2 Replace sensor panel.
3 Close the device (⇨ "Closing the Device", page 110).
4 Carry out a software update.
