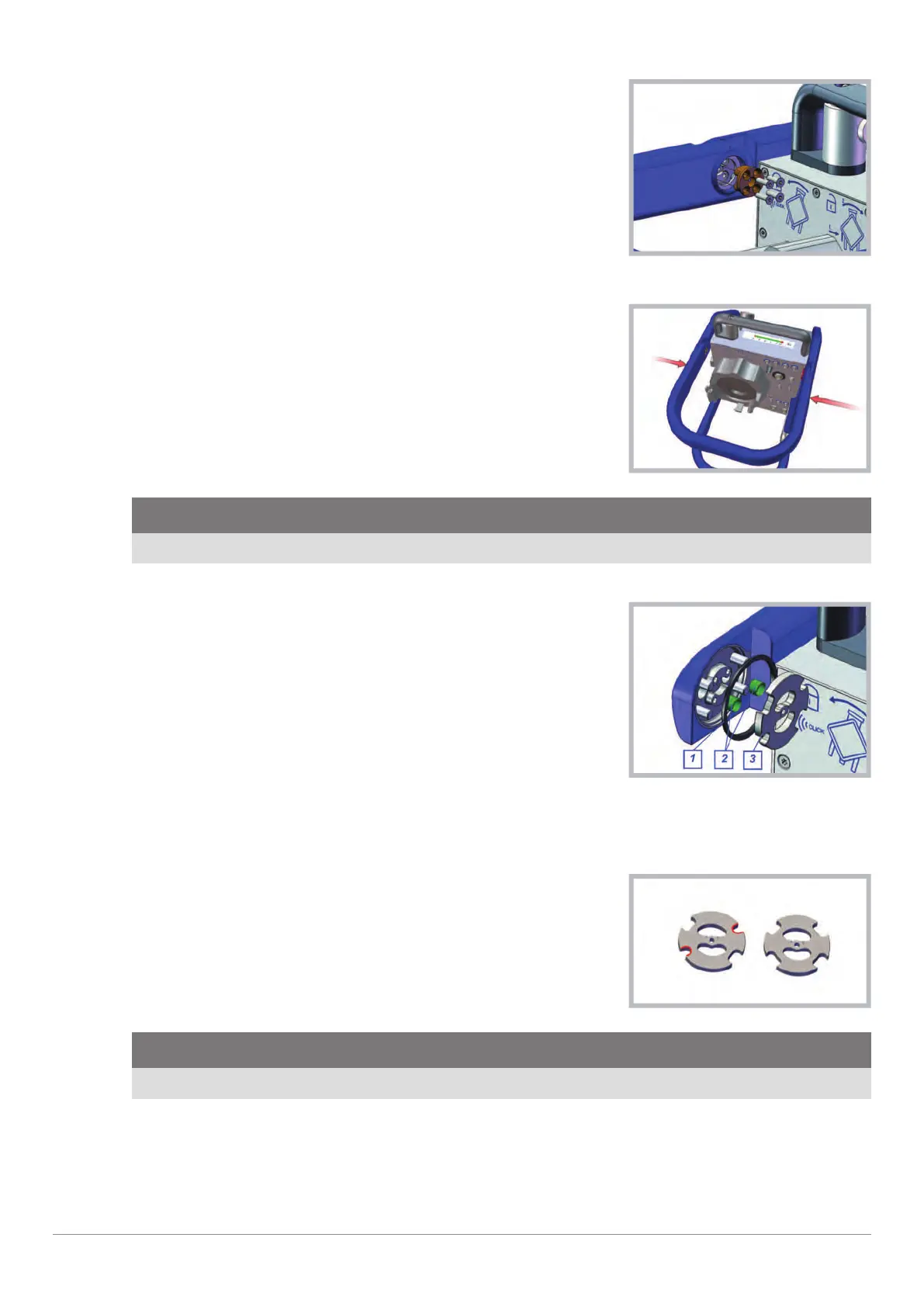

4 Unscrew the 4 screws and remove brass flange at left hinge.
Reconnecting brass flange
5 Repeat step 4 at right hinge.
6 Pinch and pull the guard out.
Pulling the guard out
CAUTION!
Pay attention some parts will fall down when you pull the guard out.
6.3.1 Assemble the Guard
1 Install sliding ring, pressure spring and locking ring.
Locking mechanism
1 Sliding ring
2 Pressure spring
3 Locking ring
Locking rings (left / right)
CAUTION!
Make sure to use the left locking ring on the left side. The left locking ring has two smaller cut-outs.
