5.1.2 Calibrate the Touchscreen
NOTE
Only when the pump is at a standstill.
Speed must be set to 0 RPM.
NOTE
Abort not possible.
The calibration cannot be aborted. It must be carried out completely and is checked for plausibility at the
end. If the check fails, the calibration automatically restarts from the beginning.

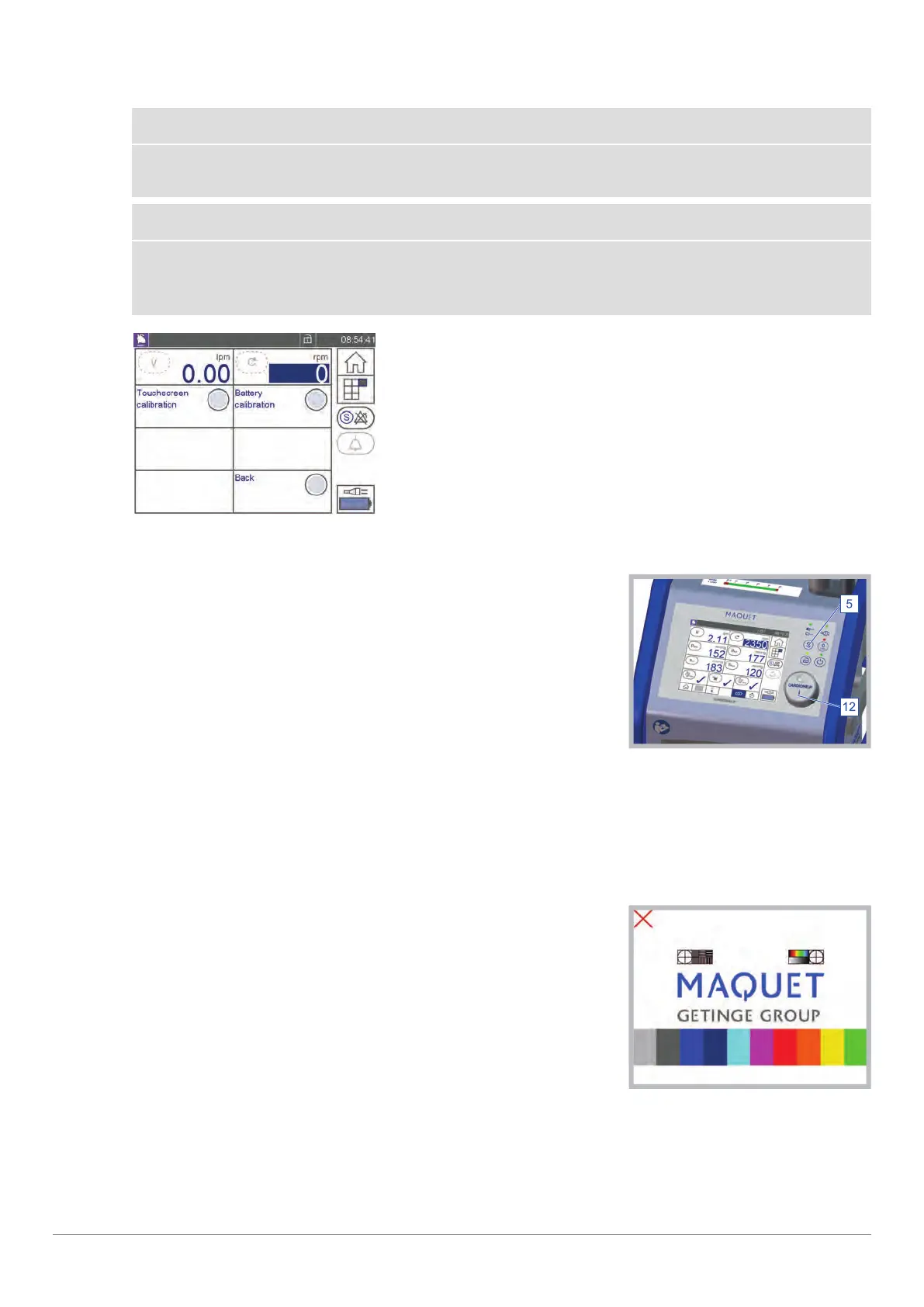

"Calibration" screen
The touchscreen is calibrated with this function.
1 Call up the calibrate touchscreen function. There are two options
available for this.
Control panel
▶ In the „Service“ screen, touch [Calibration] and then on [Touchscreen calibration] in the „Calibration“
screen.
Should it be impossible to call up the Service menu via the touchscreen due to incorrect calibration,
you can call up the calibration using a key combination instead.
▶ Press the [Safety button] [5] and hold it down and then press the [Rotary knob] button [12] for min.
10 s.
▶ The “Calibrate touchscreen” screen will appear.
The touchscreen displays the red cross at various positions.
"Calibrate touchscreen" screen
2 Make sure that you touch the middle of the red cross.
▶ The CARDIOHELP checks the position touched and calibrates the touchscreen accordingly.
