| CARDIOHELP System | 6 Repair | 109 |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH

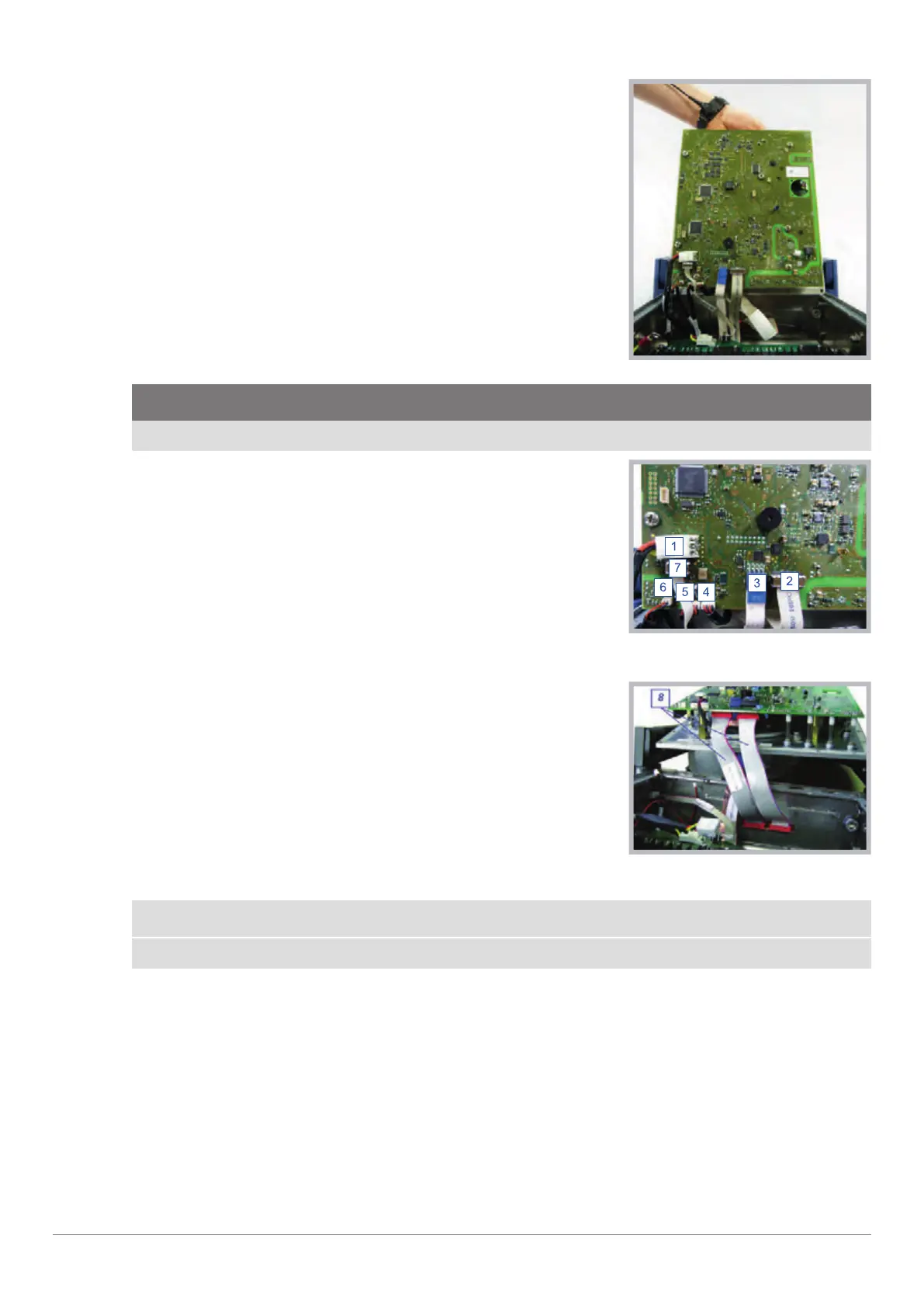

5 Carefully lift up the sensor panel.
Sensor panel interior
CAUTION!
Do not kink, bend or load the cables.
6 Mark the 2-pin connectors [4 … 6] to avoid an interchange.
Sensor panel connections
7 Remove plugs [1 … 7] from sensor PCB.
8 Disconnect flat cables [8] from LED foil.
LED foil connections
9 Place the sensor panel on the ESD workstation.
NOTE
Perform the necessary steps of service work.
▶ Necessary steps could be:
- Replacement of the sensor panel (⇨ "Replacing the Sensor Panel (Set)", page 111).
- Replacement of the LED foil (⇨ "Replacing the LED Foil", page 112).
- Remove the battery housing (⇨ "Removing Battery Housing", page 116).
