| 120 | 6 Repair | CARDIOHELP System |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
WARNING!
To finish the task, the following steps must be carried out in order to ensure error-free use.
n Updating the software
n License file needed
‒ Open a technical support case via MSupport.
Tell us the serial numbers of the CARDIOHELP device and the new HMI PCB.
n Carrying out the inspection (⇨ "Inspection", page 33).

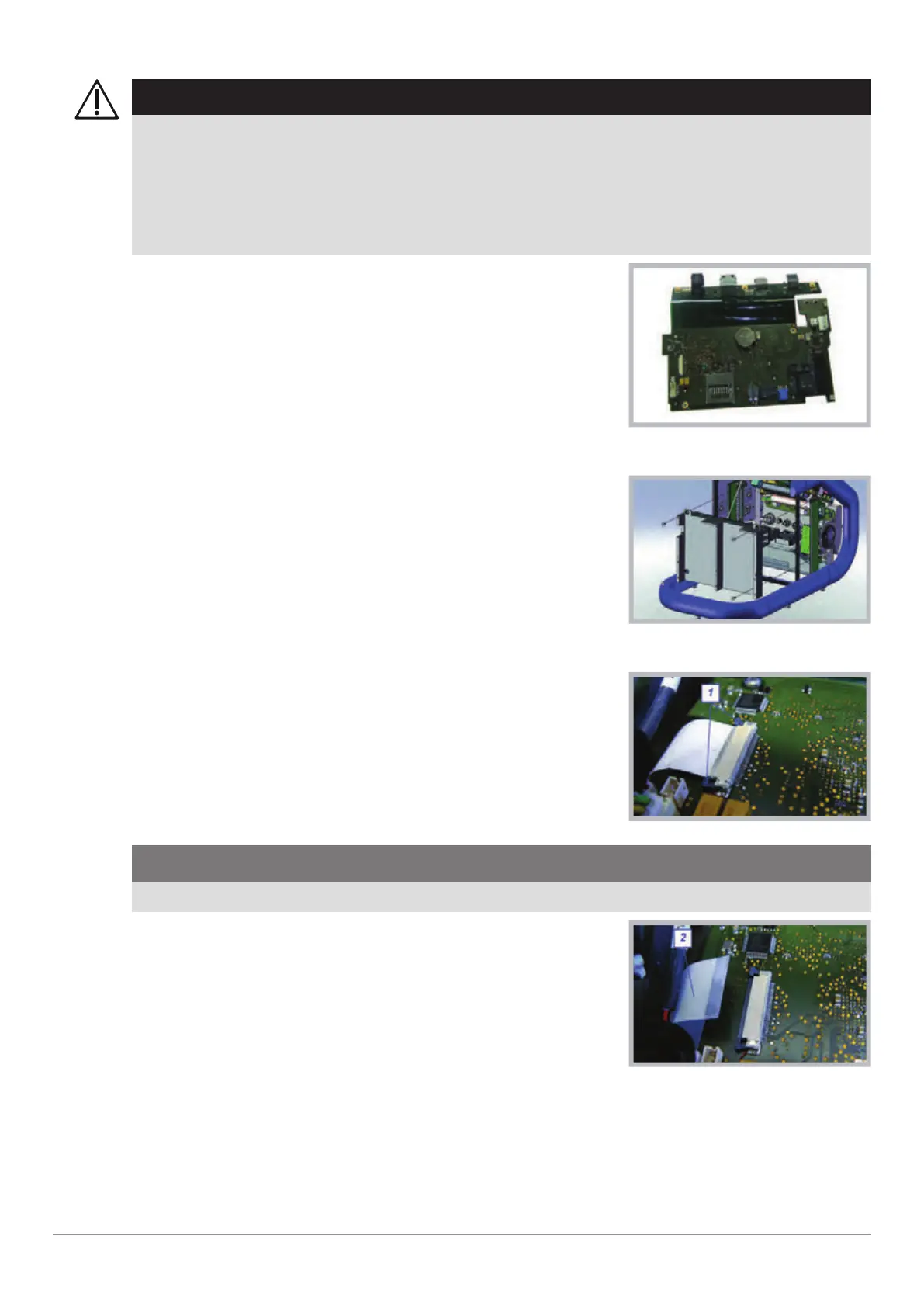

HMI PCB
1 Open the device (⇨ "Opening the Device", page 108).
2 Remove the battery housing (⇨ "Removing Battery Housing",
page 116).
Battery housing
3 Remove the backlight inverter (⇨ "Replacing Backlight Inverter", page 118).
4 Open the 2 locks [1] of the white flat cable with a thin slotted
screwdriver.
Flat cable HMI
CAUTION!
Do not kink, bend or load the flat cable.
5 Remove the flat cable [2] from HMI PCB.
Reconnected flat cable HMI
