| CARDIOHELP System | 6 Repair | 131 |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH

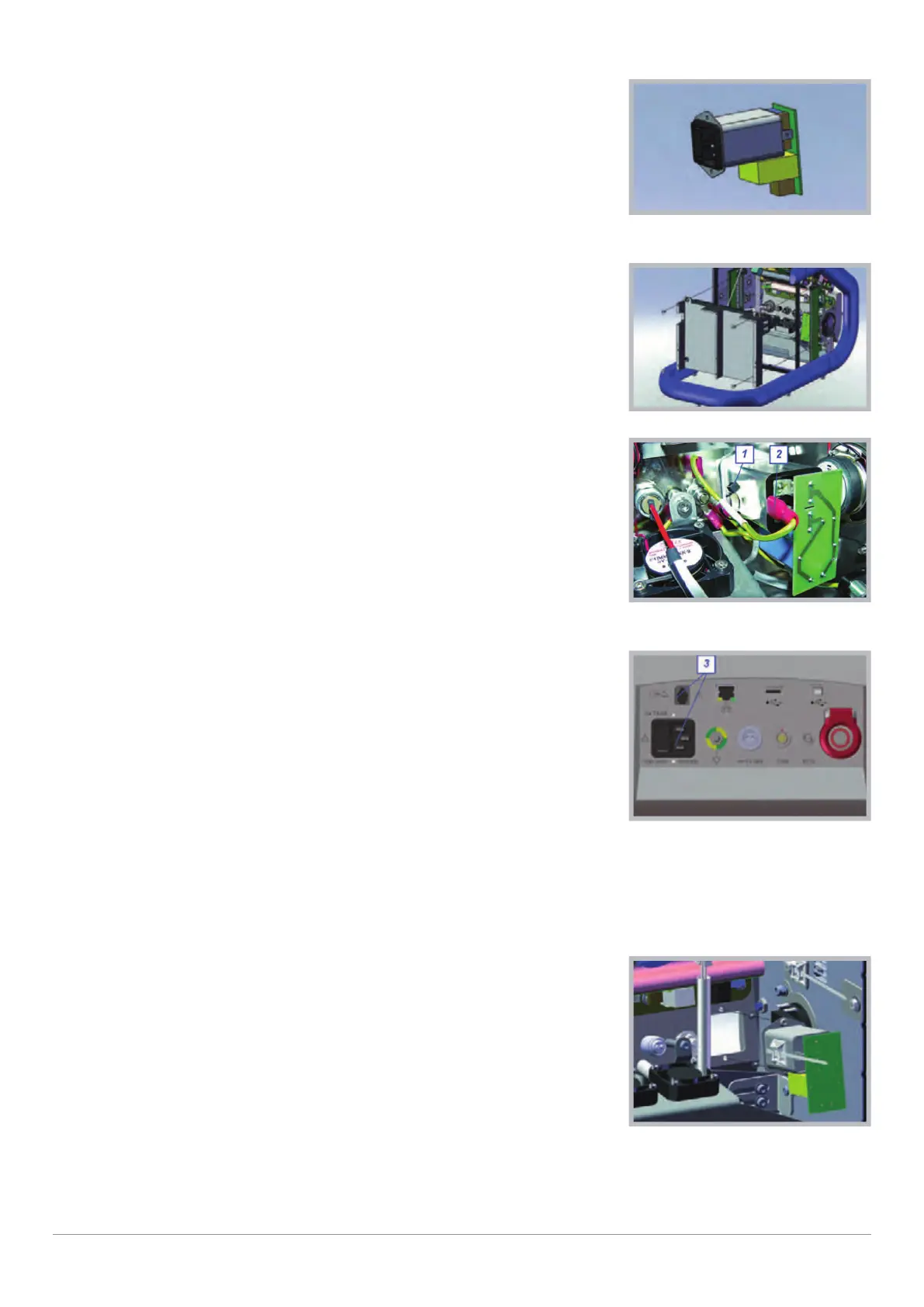

AC connector plug
1 Open the device (⇨ "Opening the Device", page 108).
2 Remove the battery housing (⇨ "Removing Battery Housing",
page 116).
Battery housing
3 Cut the cable tie [1].
AC connector plug
4 Disconnect the grounding wire [2].
5 Unscrew the two screws [3].
Front connections
6 Disconnect the plug from AC connector PCB.
7 Replace the AC connector plug.
8 Connect plug at AC connector PCB.
9 Seal plug with a thin film of Hylomar.
10 Attach the AC connector plug with two screws [3] with a torque of 0.5 Nm and Loctite 270.
11 Connect grounding wire [2] at AC connector plug.
AC connector plug
12 Secure the wire with a new cable tie [1].
13 Assemble the battery housing (⇨ "Assemble Battery Housing", page 117).
14 Close the device (⇨ "Closing the Device", page 110).
