| 42 | 3 Inspection | CARDIOHELP System |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH

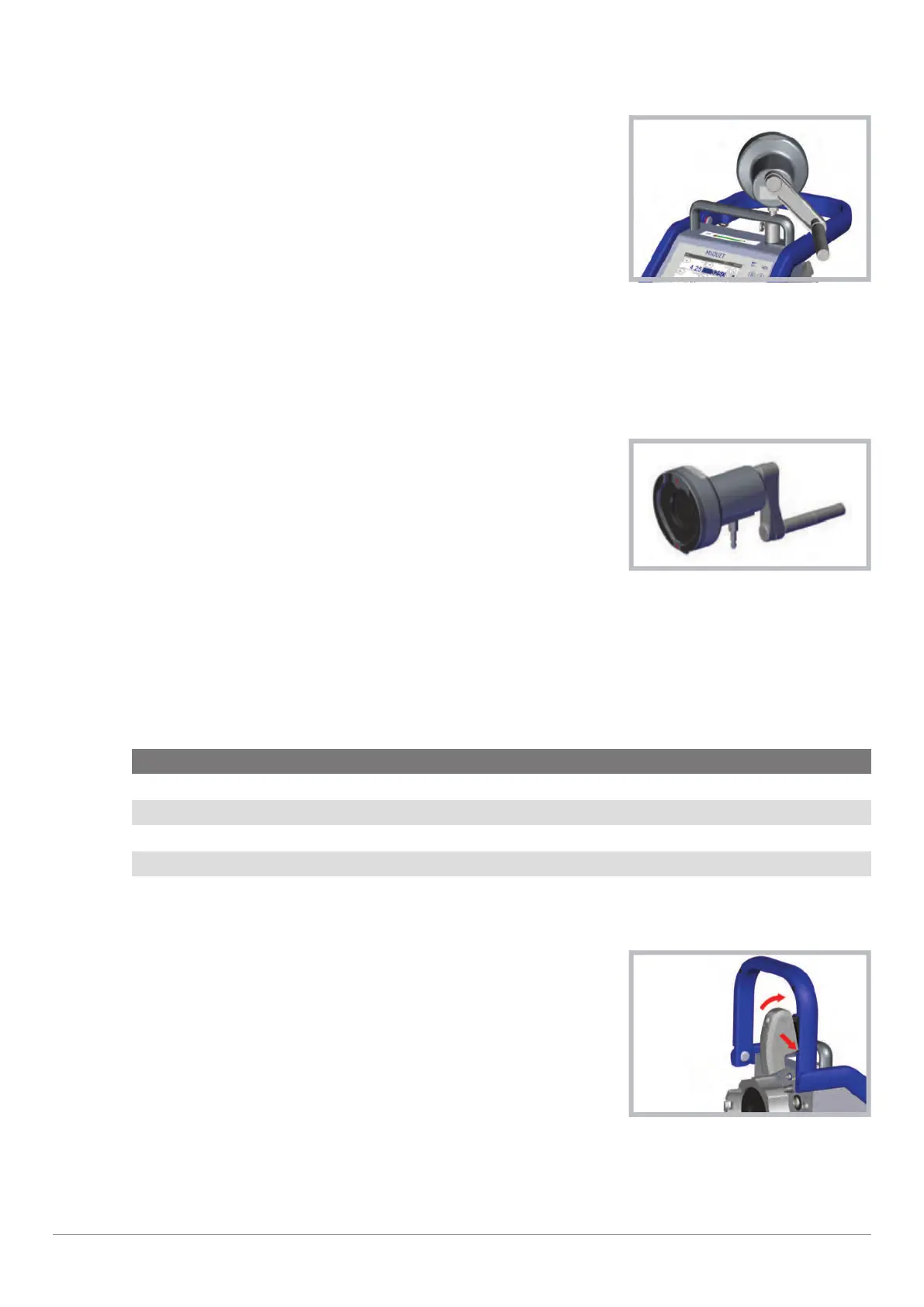

Emergency Drive
1 Place the emergency drive into the holder of the emergency drive.
CARDIOHELP Emergency Drive
▶ Emergency drive clicks into the holder.
▶ Twisting is not possible.
u Emergency drive attachment - passed/failed.
2 Fold the guard up and down.
▶ The emergency drive must at no point touch the guard.
u Guard function with emergency drive - passed/failed.
3 Turn the hand crank.
Emergency drive
▶ Hand crank must not touch the housing or guard.
▶ Hand crank is easy to turn.
u Emergency drive hand crank function - passed/failed.
4 Turn the hand crank until all speed LED areas are displayed.
▶ All LEDs must light up according to the speed turned.
▶ For check-up use the reference points in the following sheet.
u Emergency drive LED display - passed/failed.
Hand crank Pump
~18 rpm 1000 rpm
~36 rpm 2000 rpm
~54 rpm 3000 rpm
~72 rpm 4000 rpm
Venous Probe Locking Mechanism
1 Remove the venous probe from the holder.
2 Place the venous probe into the holder.
Venous probe
▶ Venous probe must click into place and must not be able to be moved.
u Venous probe locking mechanism - passed/failed.
