20
Instruction manual
Electric Actuators Type EA15-250

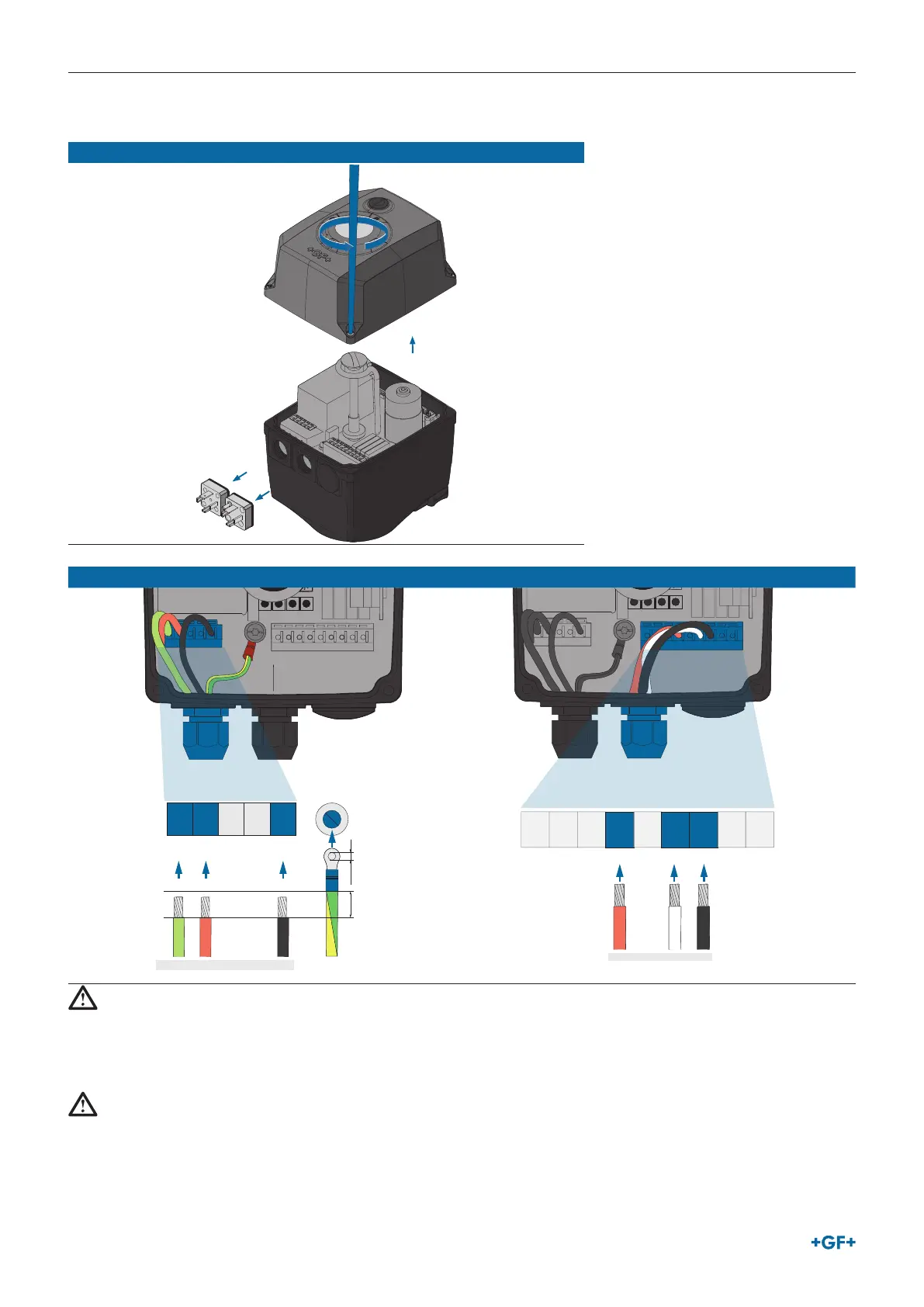

3.7.4 Connection type cable gland
Open housing cover
Connection type cable gland: Power connection Connection type Cable gland: Signal feedback
AWG 18-16
IEC60364
Ø 0.5-1.5 mm
2
M = 1.5 Nm
Power connection terminals
1 2 3 4 N
OPEN CLOSE N
PE
+25mm
Ø5mm
OPEN CLOSE N
5 6 7 8 9 10111213
Standard wiring: NC
AWG 18-16
Signal feedback connection terminals
WARNING!
Connecting the actuator with an open-ended wire through the cables glands provided.
► Connect the protective earth (PE) provided on the main board.
► Use a suitable isolated ring terminal lug, accepting 0.5 – 1.5mm2 wires, ring diameter 0.5cm.
NOTE!
Ex factory, the position feedback is wired as a normally closed contact (NC). On site, this might also be implemented as a normally
open contact (NO), subsequently.
