11.2. PB/PBP51, X20 model
The quickest way to free a trapped item is by rotating
the pressure roller in the opposite direction to the entry
of the linen, using the handle provided with the ironer.
Only in cases where this system does not solve the
problem will it be necessary to slacken the pressure
roller.
11.2.1. Turning the pressure roller using the crank
handle
Press the EMERGENCY STOP button.
Disconnect the SWITCH BREAKER from the
machine’s power supply.

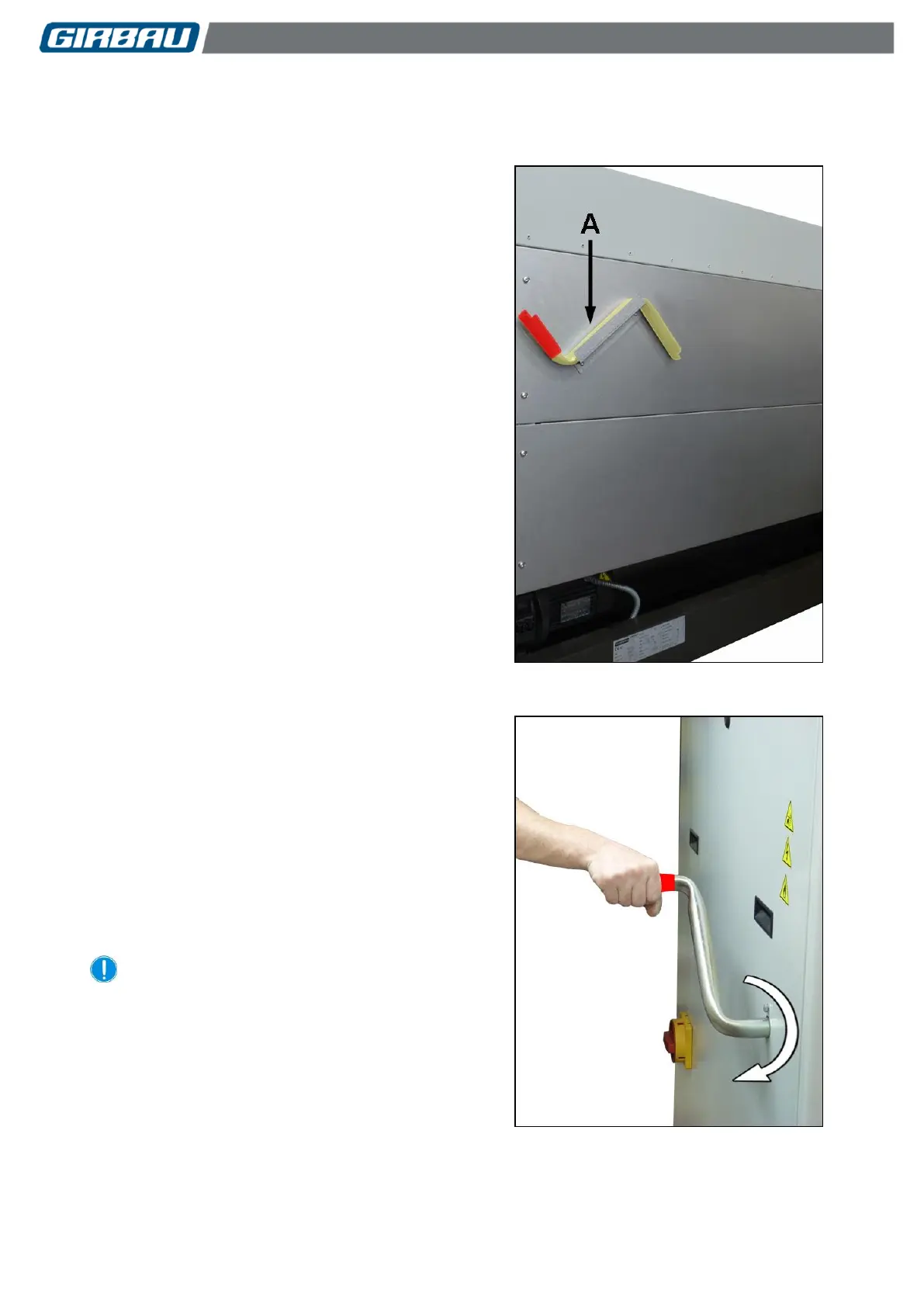

Locate the crank handle at the rear of the ironer (A.
Fig. 11.3).
Hold the manual crank handle by the red area and
insert the opposite end through the opening in the top
left-hand side cover of the machine and insert it into the
end of the internal shaft (Fig. 11.4).
Turn the handle in the direction of the arrow. The roll
will rotate in the reverse direction to the ironing
direction, and the ironing straps and the linen input
straps will move towards the outside of the ironer.
NOTE: For PB/PBP51 models prior to machine number
2,190,306 and X20***W/F models prior to machine
number 2,210,033, turn the handle in the direction of
the arrow. (Fig 11.4). The roll will rotate in the reverse
direction to the ironing direction, and the ironing straps
and the linen input straps will move towards the
outside of the ironer.
VERY IMPORTANT!!! Before resuming operation of
the machine, remove the handle and store it in its
support at the rear of the machine (Fig. 11.3).
