GIRBAU PB32 Series User Manual

Technical data 36
Code no. 550038
Rev. no. 16/1018
4.2.1. Models with gas or steam heating
Nameplate:
Heating ........................... G/V
Voltage ........................... 200…240
Phases ............................ 1Ph + N

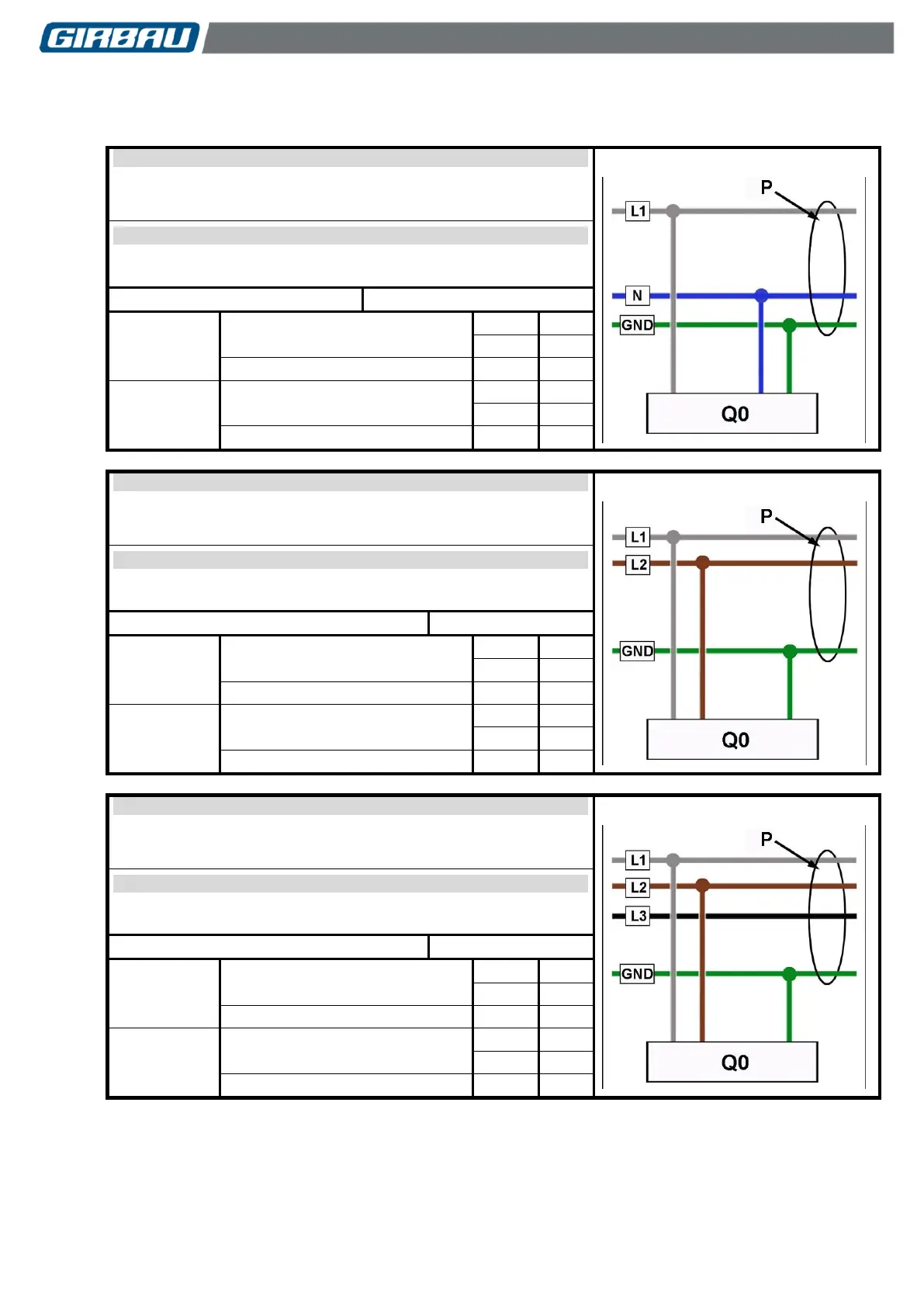

CONNECTION DIAGRAM
Mains supply available (P):
Voltage ........................... 200…240
Phases ............................ 1Ph + N
Number of wires
2 + PE/GND
PB32
X13
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
6
PB/PBP51
X20
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
10
Nameplate:
Heating ........................... G/V
Voltage ........................... 200…240
Phases ............................ 1Ph + N
CONNECTION DIAGRAM
Mains supply available (P):
Voltage ........................... 200…240
Phases ............................ 2Ph
Connection (number of wires):
2 + PE/GND
PB32
X13
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
6
PB/PBP51
X20
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
10
Nameplate:
Heating ........................... G/V
Voltage ........................... 200…240
Phases ............................ 1Ph + N
CONNECTION DIAGRAM
Mains supply available (P):
Voltage ........................... 200…240
Phases ............................ 3Ph
Connection (number of wires):
2 + PE/GND
PB32
X13
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
6
PB/PBP51
X20
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
10
