GIRBAU PB32 Series User Manual

Releasing a person trapped 126
Code no. 550038
Rev. no. 16/1018
11.2.2. Releasing the pressure roller
If the pressure roller needs to be released, follow the steps
described below:

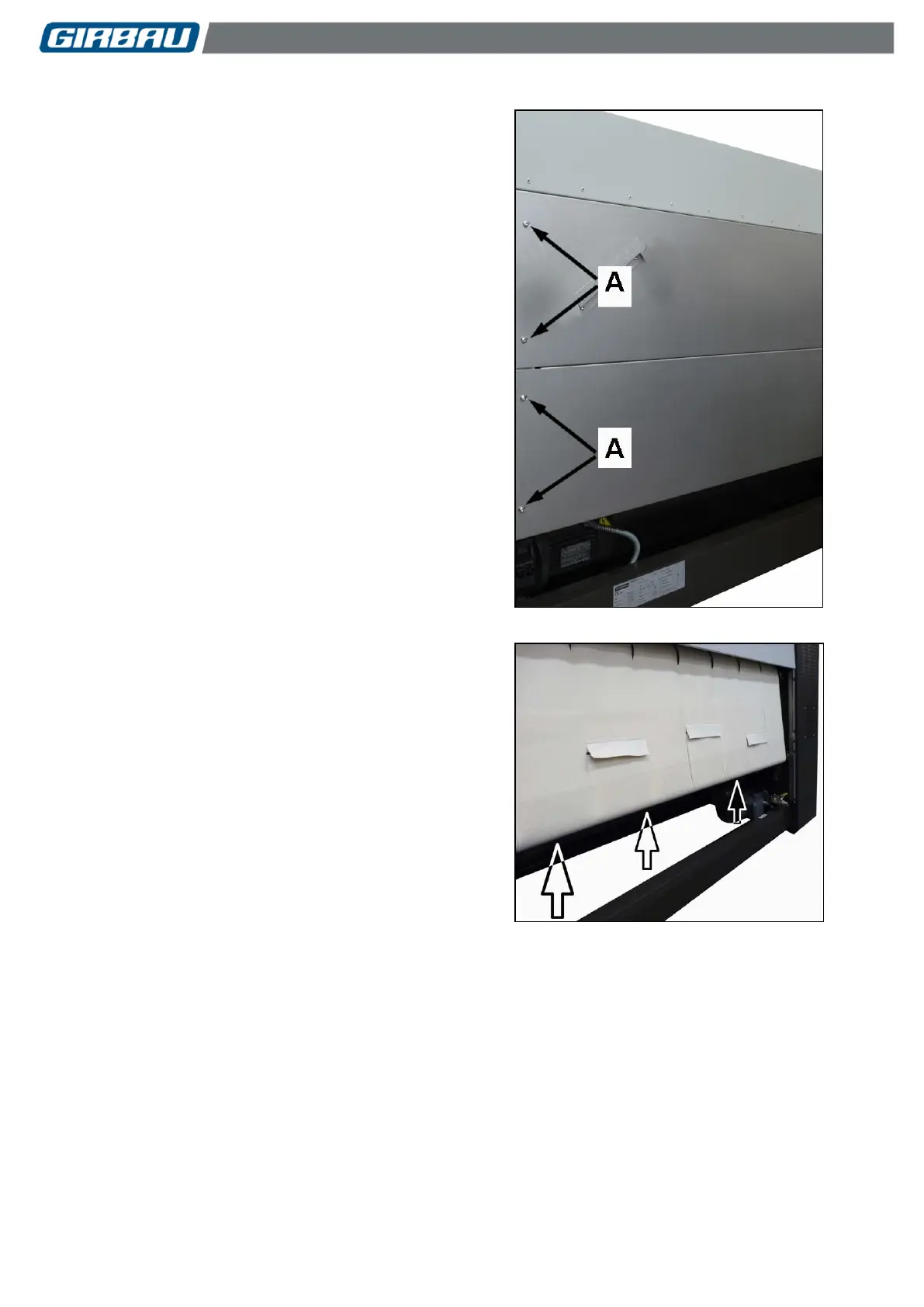

Remove the ironer’s rear covers by removing the securing
screws: four screws on the right side (A, Figure 11.5) and
four on the left side.
Fig. 11.5
Support the tensioner roller to reduce the tension of the
ironing straps (Fig. 11.6)
Another option is to remove it from the machine by sliding it
to one side.
Fig. 11.6
