Operating and use. Inteli Control 81
Code no. 550038
Rev. no. 16/1018
7.2. Control panel

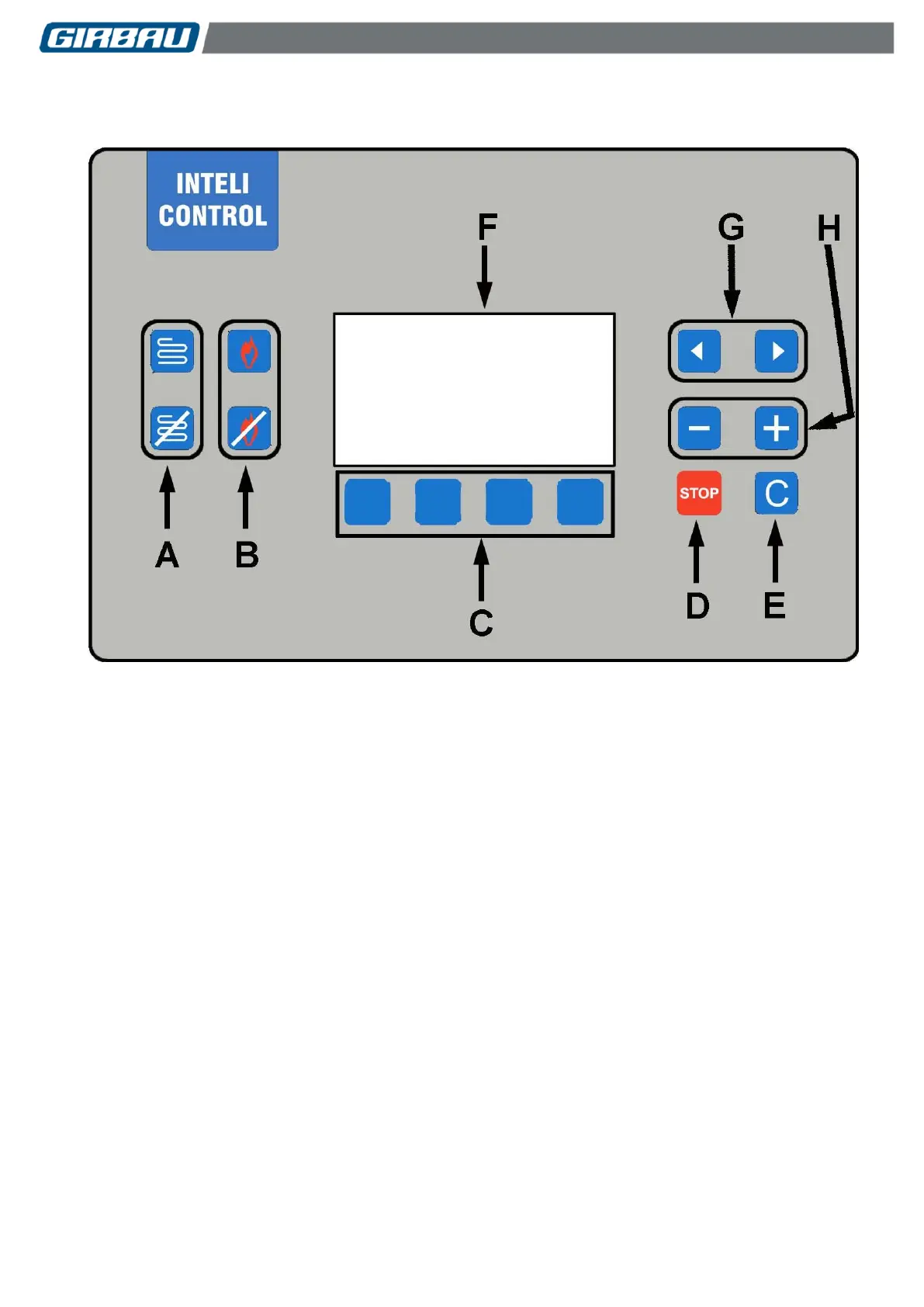

Fig. 7.1
Description of the control panel (Fig. 7.1)
A -> Folder START and PAUSE buttons
B-> Buttons for lighting and turning off the burner (machines with gas heating only)
C-> Multifunction keypad
D-> STOP button. Normal machine stopping
E-> Button for special functions
F-> Display
G-> Display movement buttons
H-> Buttons for inserting text and selecting values
