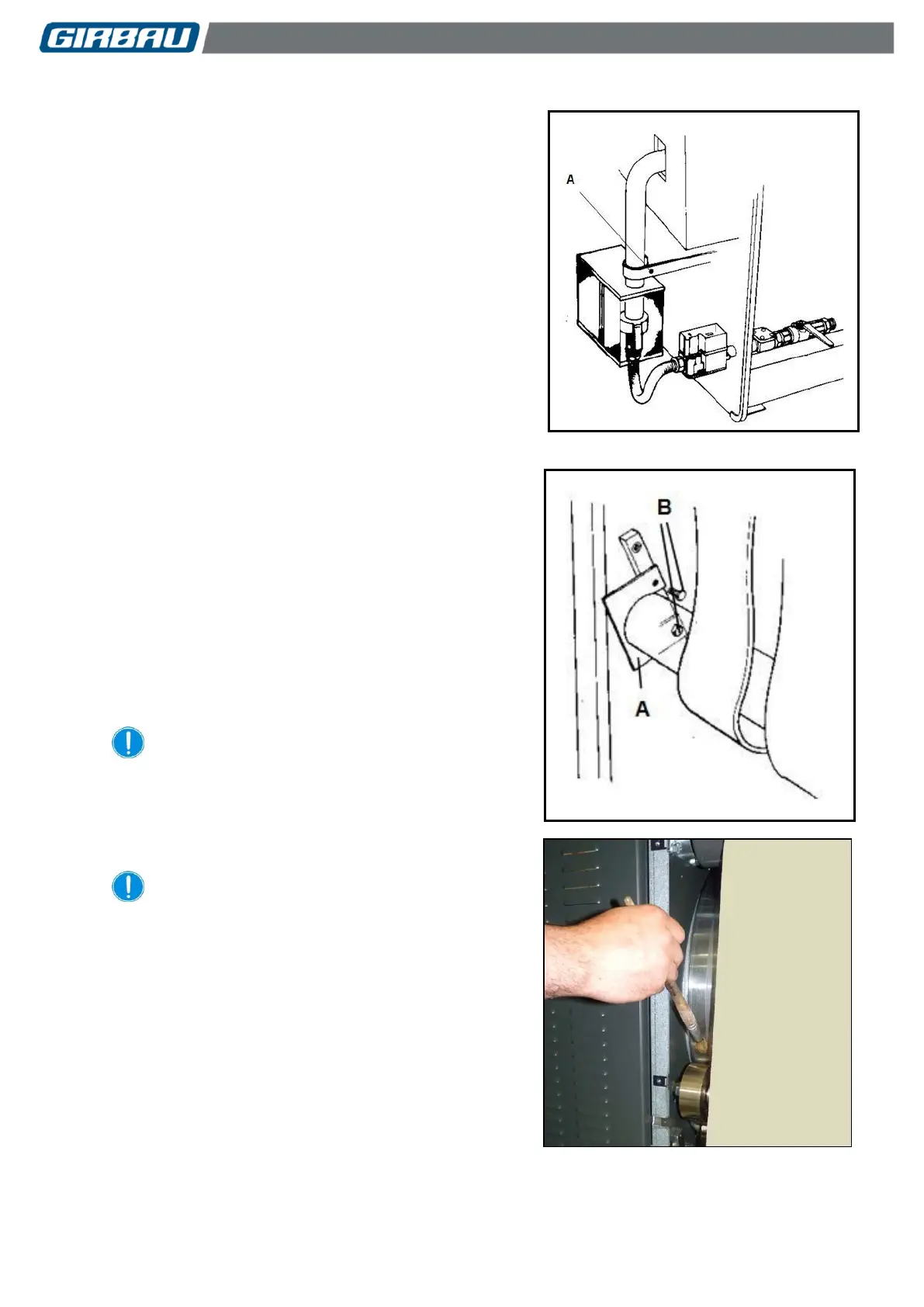

Removing the shipping brace from the burner (Models
with gas heating, atmospheric burner):
- PB32, X13 models. Remove the right-hand side cover.
- PB/PBP51, X2 models. Remove the left-hand side cover.
- Remove the securing bolt (A, Fig. 3.6).
- Reposition and fasten the side cover.
Fig. 3.6
Removing the shipping braces from the tensioning
roller
Steps for removing the shipping braces from the tensioning
roller (Fig. 3.7):
- Remove the rear covers from the ironer.
- Remove the two securing bolts (B).
- Remove the yellow shipping brace (A).
- Repeat the operation for the shipping brace at the
opposite end of the roll.
Store away the shipping braces.
Fig. 3.7
CAUTION!
Lubricating the areas of the roll in contact with the
wheels
Before starting up the ironer it is advisable to lubricate the
roll ends resting on the support wheels.
- Turn the roll using the manually operated handle (see
Section 10.1) and using a brush spread a layer of oil on
the area at both ends of the roll in contact with the wheels
(Fig. 3.8).
Recommended oil: Interfon Lube HT/SF high-temperature
oil or equivalent.
- Position and secure the rear covers.
Fig. 3.8
