GIRBAU PB32 Series User Manual

Technical data 39
Code no. 550038
Rev. no. 16/1018
Nameplate:
Heating ........................... E
Voltage ........................... 380…415
Phases ............................ 3Ph + N

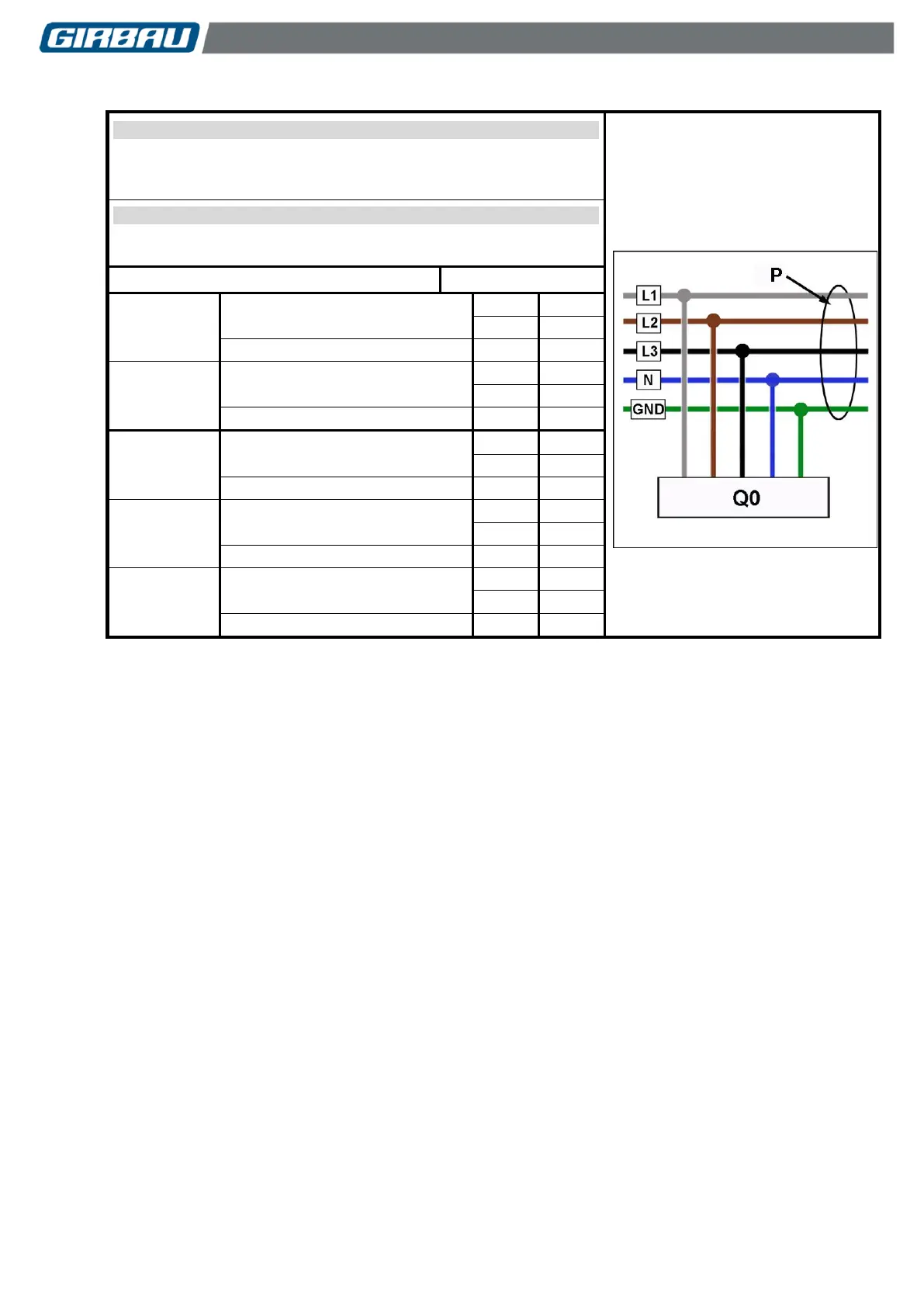

CONNECTION DIAGRAM
Mains supply available (P):
Voltage ........................... 380…415
Phases ............................ 3Ph + N
Connection (number of wires):
4 + PE/GND
PB3215
Wire section
mm
2
6
AWG
8
Automatic External Switch
A
50
PB3221
Wire section
mm
2
10
AWG
6
Automatic External Switch
A
50
PB/PBP5119
Wire section
mm
2
16
AWG
4
Automatic External Switch
A
80
PB/PBP5125
Wire section
mm
2
25
AWG
2
Automatic External Switch
A
100
PB/PBP5132
Wire section
mm
2
50
AWG
0
Automatic External Switch
A
100
