GIRBAU PB32 Series User Manual

Steps for the connection 58
Code no. 550038
Rev. no. 16/1018

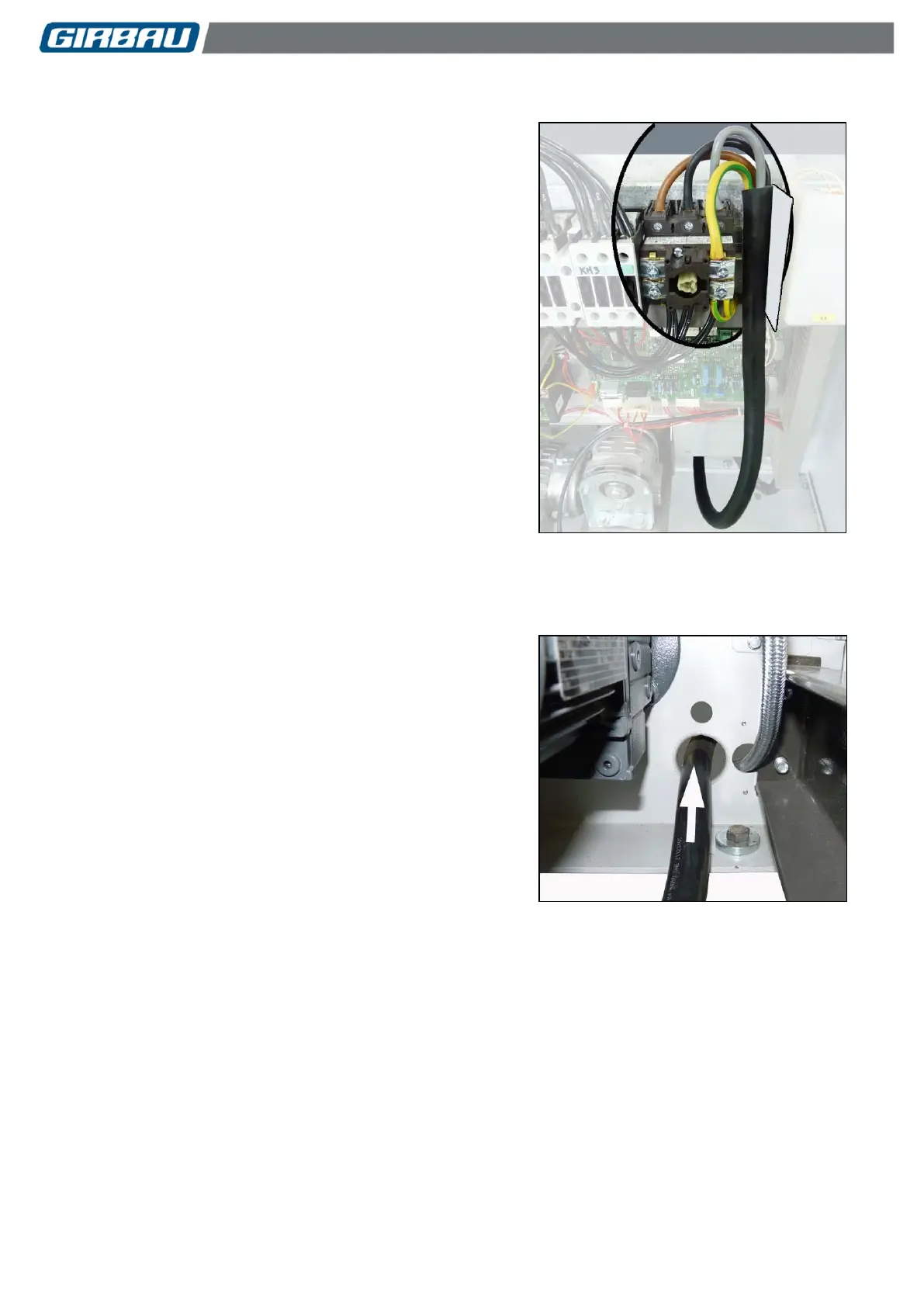

Model PB32, X13 with electric heating (Fig. 5.3)
Connect to terminals L1, L2 and L3 of the isolator switch.
(See the wiring diagrams in section 4.2).
Connect the earth wire (PE/GND).
Fig. 5.3
PB/PBP51, X20
Insert the power cable through the hole into the right-hand
base-frame (Fig. 5.4).
Fig. 5.4
