135

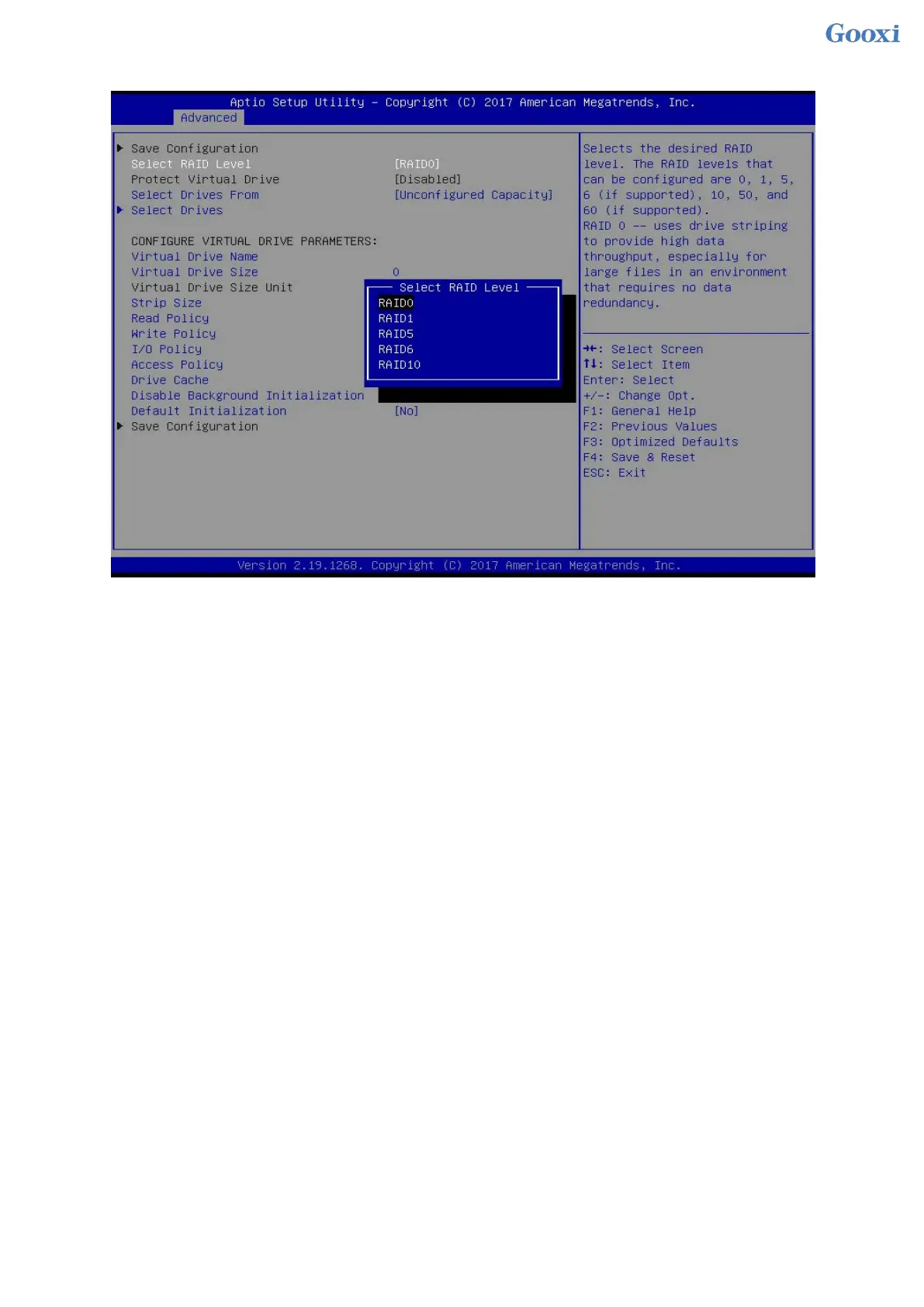

Figure 6-33 Setting the RAID level
Figure 6- 33
4. Enter the interface shown in Figure 6-34, select Select Drives From, set the RAID disk capacity
source, and press Enter.
[Unconfigured Capacity] indicates that the capacity comes from the remaining capacity of the
RAID-configured disk.
[Free Capacity] indicates that the capacity comes from an empty disk.
Figure 6-34 Setting the disk capacity source of RAID
