3.4 Hard disk installation

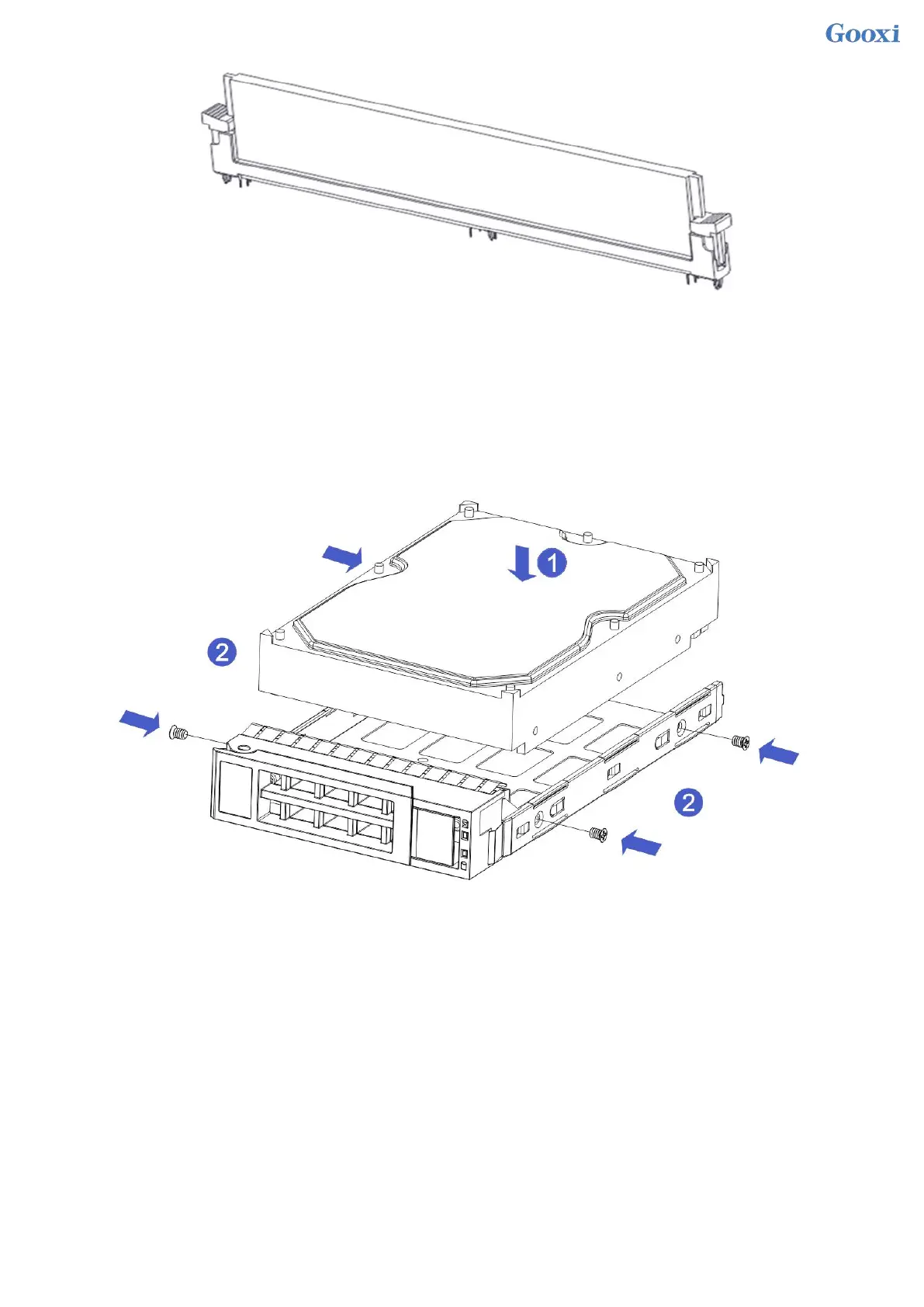

Install 3.5" hard drive:
1. Put the hard disk in the tray
2. There are 4 countersunk head screws on the left and right sides to lock the hard disk (the screw heads must
not protrude from the surface of the slide rail on both sides of the tray)
